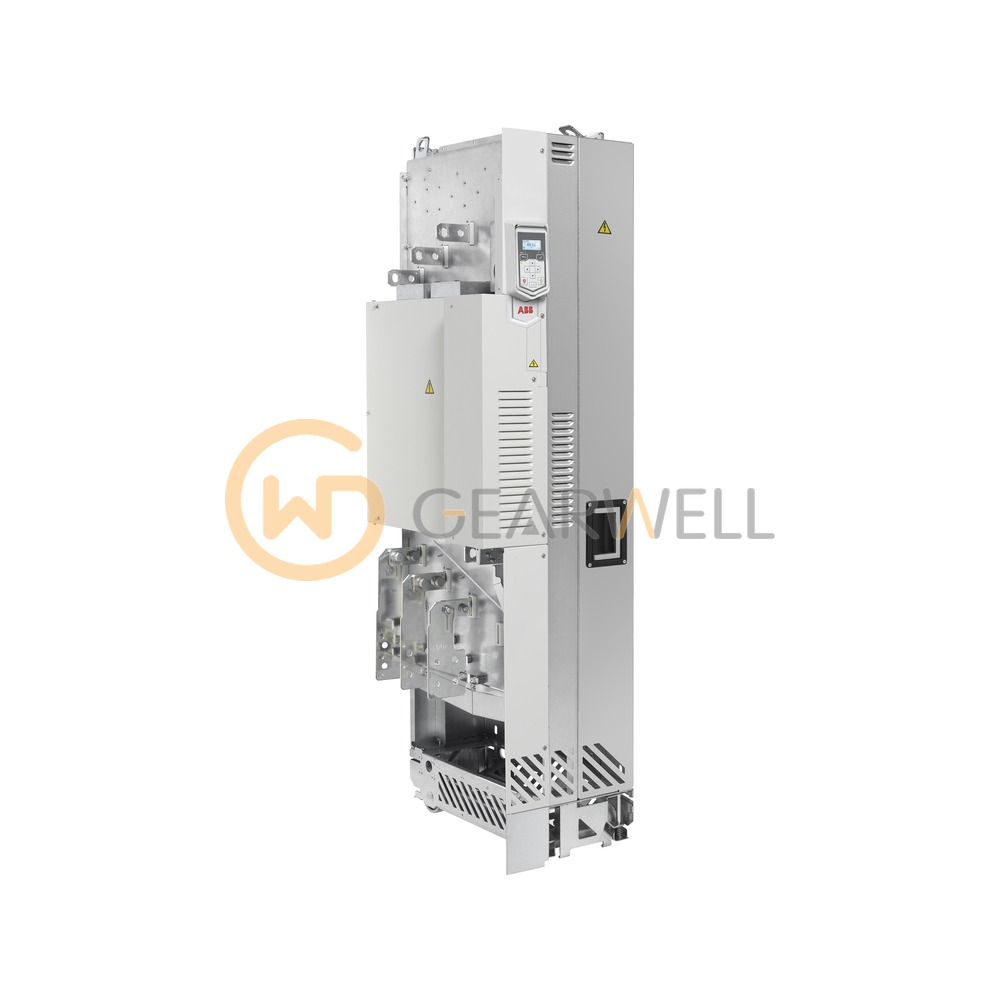

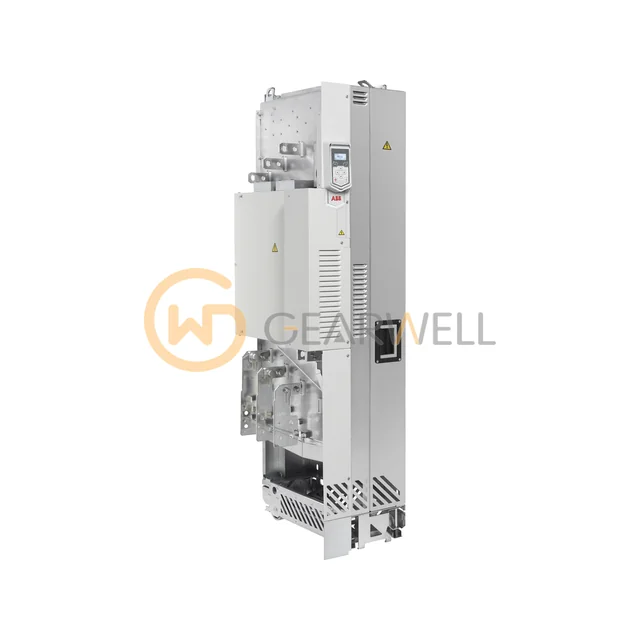

ABB ACS530-04-880A-4+N7569+B051+P972 ACS530 Drive Module
- Brand
- ABB
- Model
- ACS530-04-880A-4+N7569+B051+P972
- GEARWELL SKU
- GWP-000011482
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R11
- Net weight
- 199 kg
- Option +B051
- IP20 covers for the cabling area
- Option +P972
- part of the ABB type designation of this product ID; not described in the ACS530-04 hardware manual option list
- Option +N7569
- part of the ABB type designation of this product ID; not described in the ACS530-04 hardware manual option list
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS530-04-880A-4+N7569+B051+P972 is an ACS530-04 general purpose drive module for cabinet installation on 380–480 V three-phase supplies, rated 500 kW in nominal and light-duty use at 400 V (880 A nominal output current), in frame R11. ABB builds in an AC choke, Modbus RTU, Safe torque off and a basic control panel, with an EMC filter available as an option and control macros such as PID and pump and fan control (PFC). This item carries plus codes +N7569, +B051 and +P972; ABB's catalog lists +B051 as the IP20 finger-safe option. Please confirm the full option set against the nameplate or order confirmation.
Technical reference
| Product name | ABB ACS530-04-880A-4+N7569+B051+P972 ACS530 Drive Module |
|---|---|
| Brand | ABB |
| Model | ACS530-04-880A-4+N7569+B051+P972 |
| Category | Variable Frequency Drives |
| Frame size | R11 |
| Net weight | 199 kg |
| Option +B051 | IP20 covers for the cabling area |
| Option +P972 | part of the ABB type designation of this product ID; not described in the ACS530-04 hardware manual option list |
| Option +N7569 | part of the ABB type designation of this product ID; not described in the ACS530-04 hardware manual option list |
| ABB product ID | 3ABD00057988-D |
| Rated power PN | 500 kW |
| Rated current IN | 880 A |
| Dimensions (W x H x D) | 350 x 1662 x 529 mm |
| Voltage range (code -4) | 380 ... 480 V |
