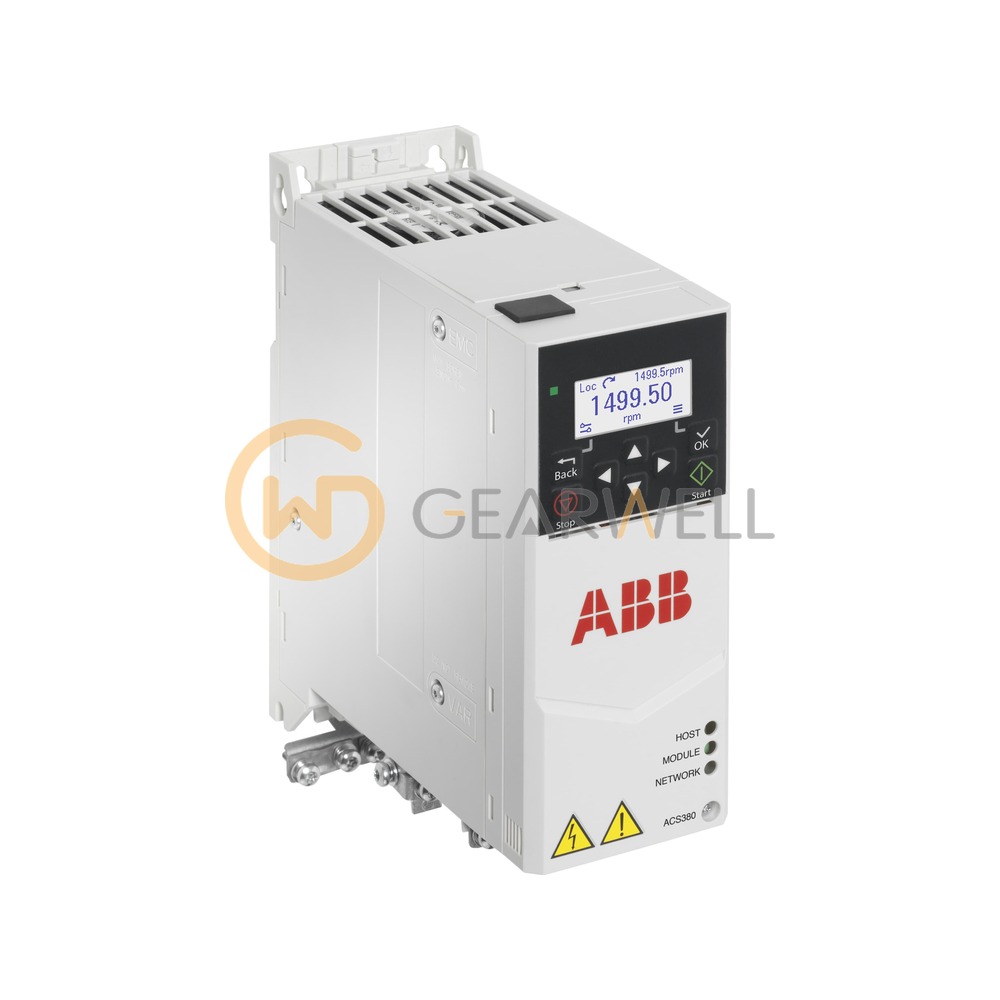

ABB ACS380-040S-045A-4 ACS380 Machinery Drive
- Brand
- ABB
- Model
- ACS380-040S-045A-4
- GEARWELL SKU
- GWP-000007645
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R4
- Net weight
- 5.8 kg
- Dimensions (W x H x D)
- 260 x 205 x 174 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS380-040S-045A-4 is an ACS380 machinery drive for three-phase 380–480 V supplies, rated 22.0 kW in nominal and light-duty use and 18.5 kW in heavy-duty use, with 45.0 A nominal output current, in frame R4. In the type code, 04 is the module construction for cabinet installation (IP20), 0 is the low EMC filtering level (a category C3 EMC filter on this voltage) and S is the standard variant with the BMIO-01 I/O and Modbus module. ABB designs the ACS380 to control induction motors, permanent magnet synchronous motors and ABB SynRM motors, and the basic module includes Safe torque off, a brake chopper and coated boards.
Technical reference
| Product name | ABB ACS380-040S-045A-4 ACS380 Machinery Drive |
|---|---|
| Brand | ABB |
| Model | ACS380-040S-045A-4 |
| Category | Variable Frequency Drives |
| Frame size | R4 |
| Net weight | 5.8 kg |
| Dimensions (W x H x D) | 260 x 205 x 174 mm |
