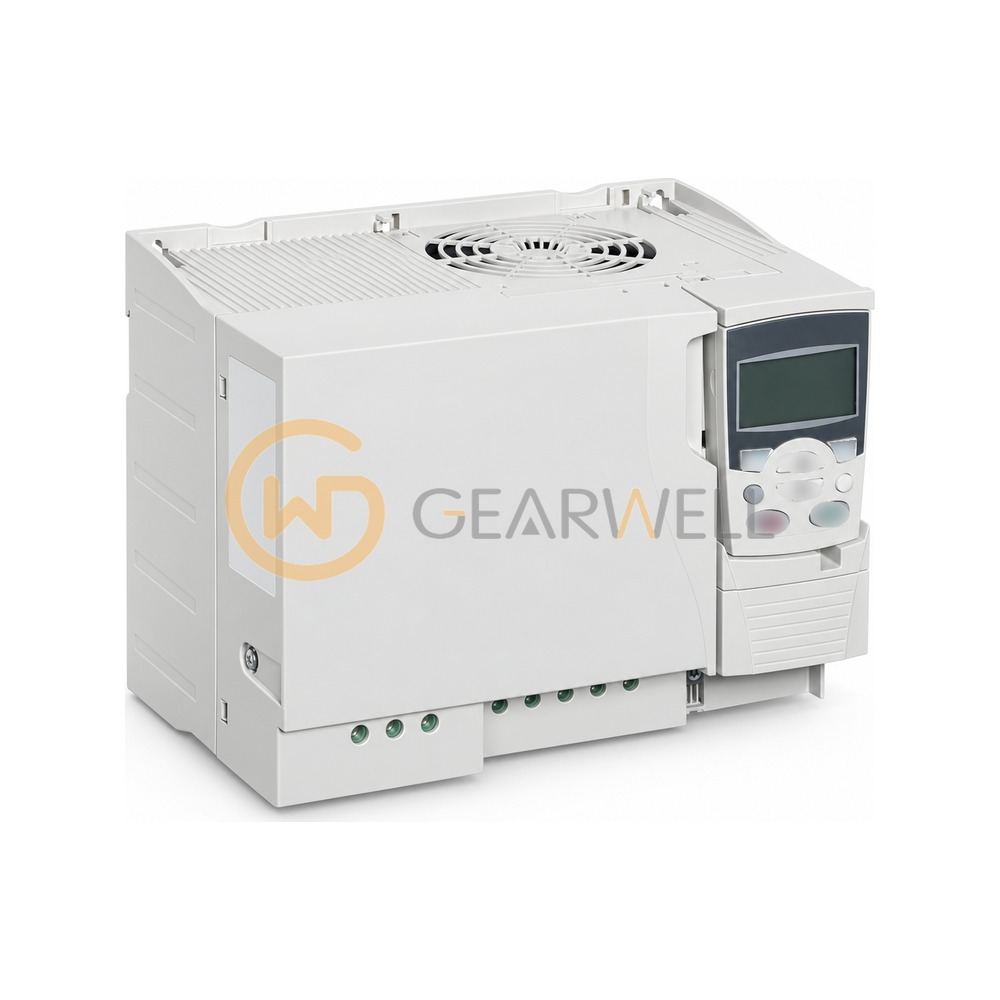

ABB ACS355-03U-24A4-2 Machinery AC Drive
- Brand
- ABB
- Model
- ACS355-03U-24A4-2
- GEARWELL SKU
- GWP-000016353
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R3
- Standby loss
- 9 W
- Rated power PN
- 5.5 kW / 7.5 hp
- Weight (IP20 cabinet)
- 3.1 kg
- Degree of protection
- IP20 (UL open type)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB ACS355-03U-24A4-2 Machinery AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS355-03U-24A4-2 |
| Category | Variable Frequency Drives |
| Frame size | R3 |
| Standby loss | 9 W |
| Rated power PN | 5.5 kW / 7.5 hp |
| Weight (IP20 cabinet) | 3.1 kg |
| Degree of protection | IP20 (UL open type) |
| Input voltage (3-phase) | 200...240 V AC |
| Max output current I2max | 42.7 A |
| Rated output current I2N | 24.4 A |
| Input current I1N (without choke) | 41 A |
| Dimensions W x D x H (H3, IP20 cabinet) | 169 x 169 x 236 mm |
