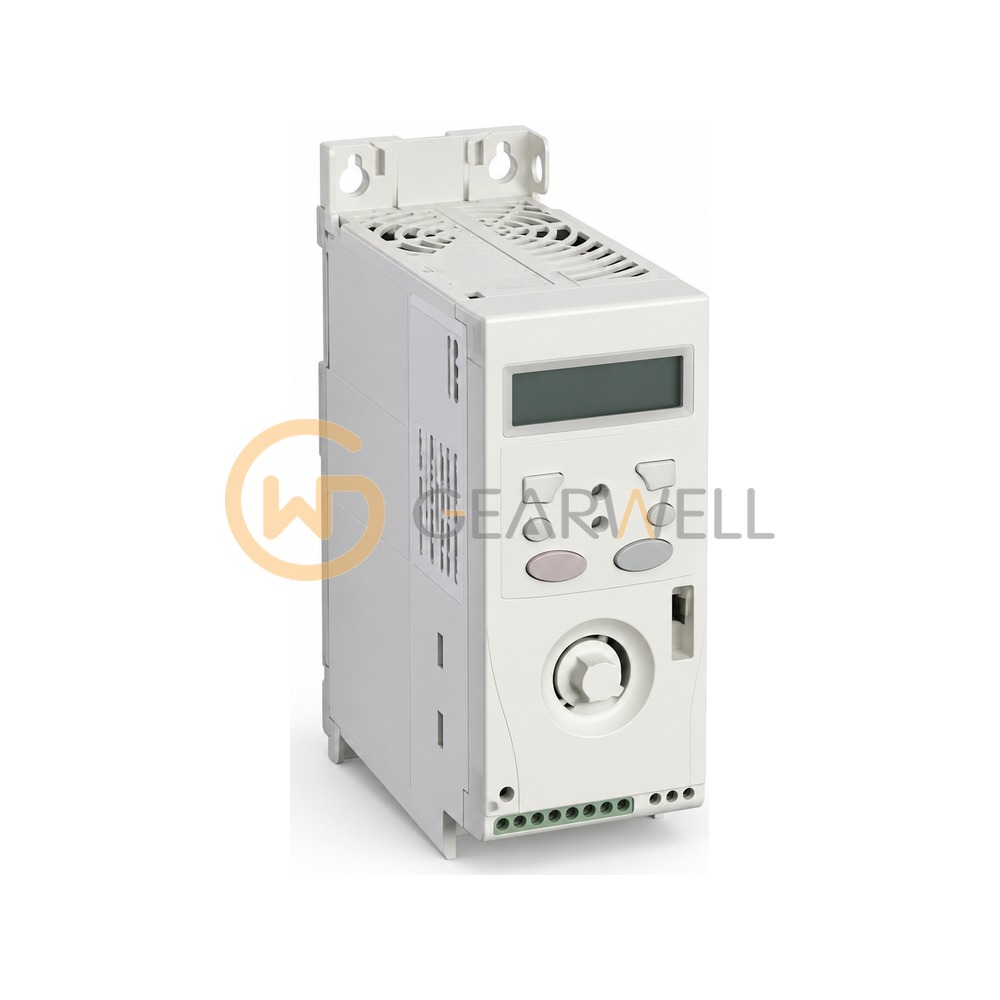

ABB ACS150-01E-07A5-2 Micro AC Drive
- Brand
- ABB
- Model
- ACS150-01E-07A5-2
- GEARWELL SKU
- GWP-000016352
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R2
- Rated power PN
- 1.5 kW
- Weight (IP20 cabinet)
- 1.5 kg
- Degree of protection
- IP20
- Input voltage (1-phase)
- 200...240 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ABB ACS150-01E-07A5-2 Micro AC Drive |
|---|---|
| Brand | ABB |
| Model | ACS150-01E-07A5-2 |
| Category | Variable Frequency Drives |
| Frame size | R2 |
| Rated power PN | 1.5 kW |
| Weight (IP20 cabinet) | 1.5 kg |
| Degree of protection | IP20 |
| Input voltage (1-phase) | 200...240 V AC |
| Max output current I2max | 13.1 A |
| Rated output current I2N | 7.5 A |
| Input current I1N (without choke) | 16.8 A |
| Output frequency (scalar control) | 0...500 Hz |
| Dimensions W x D x H (H3, IP20 cabinet) | 105 x 142 x 239 mm |
