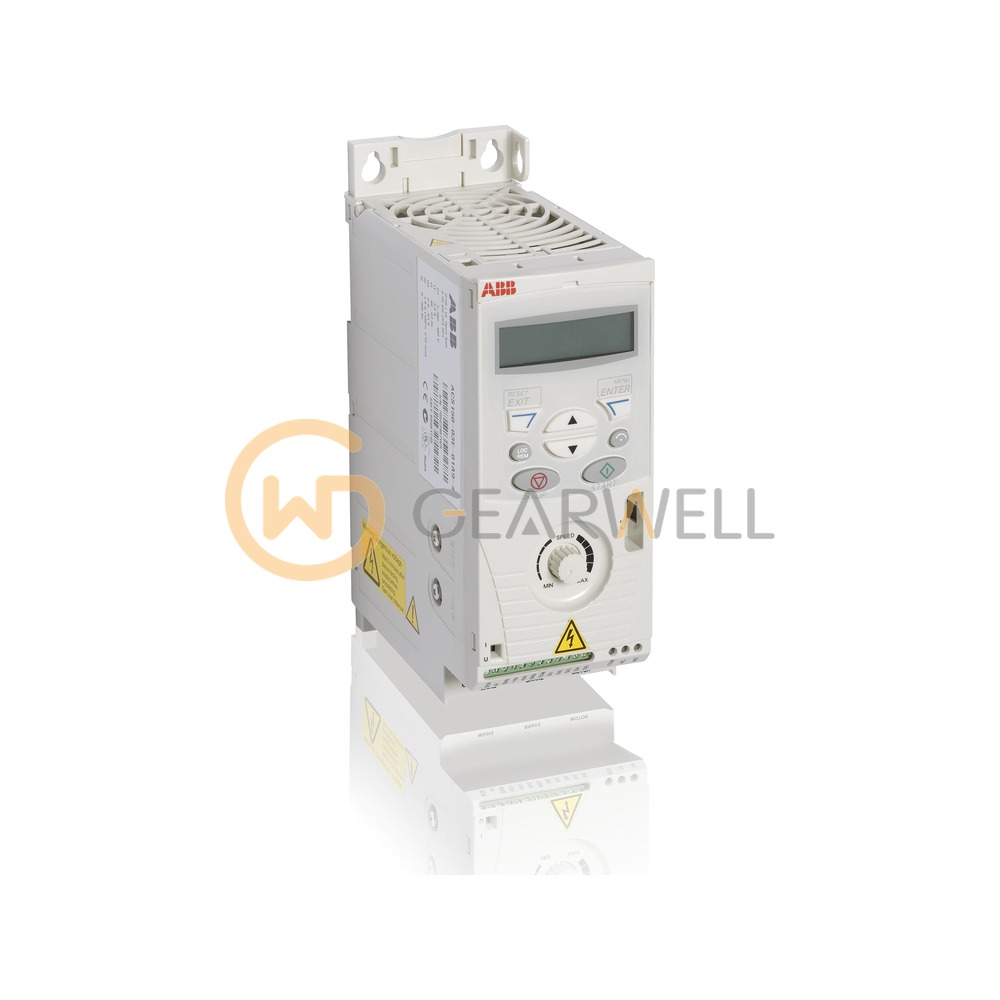

ABB ACS150-03E-07A3-4 ACS150 Micro Drive
- Brand
- ABB
- Model
- ACS150-03E-07A3-4
- GEARWELL SKU
- GWP-000007632
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R1
- Product ID
- 3ABD68865921
- Degree of protection
- IP20
- Dimensions (W x H x D)
- 70 x 169 x 142 mm
- Output power (normal use)
- 3 kW
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACS150-03E-07A3-4 is an ACS150 drive for three-phase 380–480 V supplies, rated 3 kW (4 hp) with 7.3 A continuous output current, in frame R1. The E in the type code means it ships with the internal EMC filter connected and 50 Hz default settings. ABB designs the ACS150 for wall or cabinet mounting to control AC induction motors; it has an integrated control panel and potentiometer, and a brake chopper for connecting an external brake resistor.
Technical reference
| Product name | ABB ACS150-03E-07A3-4 ACS150 Micro Drive |
|---|---|
| Brand | ABB |
| Model | ACS150-03E-07A3-4 |
| Category | Variable Frequency Drives |
| Frame size | R1 |
| Product ID | 3ABD68865921 |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 70 x 169 x 142 mm |
| Output power (normal use) | 3 kW |
| Output current (normal use) | 7.3 A |
