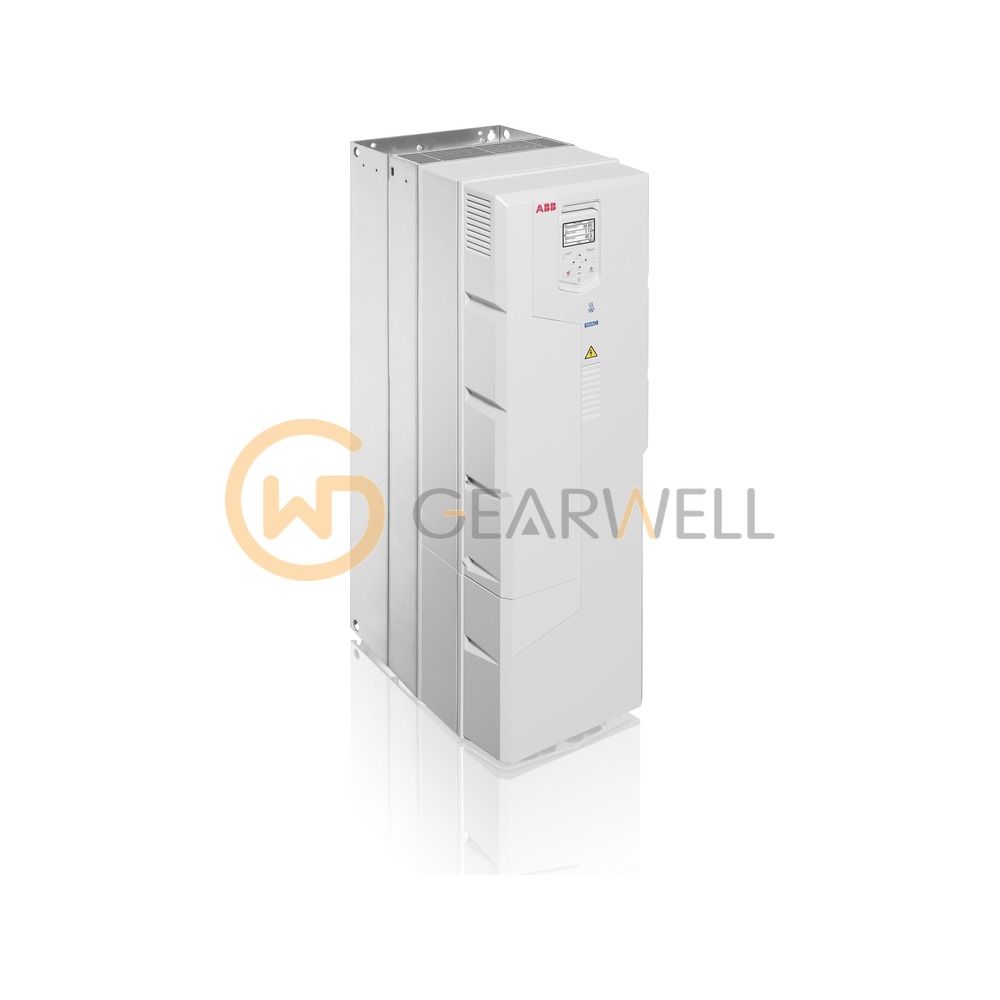

ABB ACH580-31-206A-4 ACH580 Ultra-low Harmonic HVAC Drive
- Brand
- ABB
- Model
- ACH580-31-206A-4
- GEARWELL SKU
- GWP-000007595
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- R8
- Net weight
- 118 kg
- Input voltage
- 380 to 480 V
- Degree of protection
- IP21
- Dimensions (W x H x D)
- 300 x 965 x 438 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB ACH580-31-206A-4 is an ACH580-31 ultra-low harmonic HVAC drive for 380–480 V three-phase supplies, rated 110 kW in nominal and light-duty use and 90 kW in heavy-duty use at 400 V, with 206 A nominal output current, in frame R8. It combines a line-side converter and a motor-side converter in one wall-mounted unit and controls induction motors, permanent magnet motors in open loop control and synchronous reluctance motors. ABB's standard delivery is IP21 (UL Type 1) with an ACH-AP-H control panel with USB port, an integrated C2 EMC filter, an internal common mode filter and Safe torque off; IP55 (UL Type 12) is option +B056.
Technical reference
| Product name | ABB ACH580-31-206A-4 ACH580 Ultra-low Harmonic HVAC Drive |
|---|---|
| Brand | ABB |
| Model | ACH580-31-206A-4 |
| Category | Variable Frequency Drives |
| Frame size | R8 |
| Net weight | 118 kg |
| Input voltage | 380 to 480 V |
| Degree of protection | IP21 |
| Dimensions (W x H x D) | 300 x 965 x 438 mm |
| Output power (normal use) | 110 kW |
| Output current (normal use) | 206 A |
