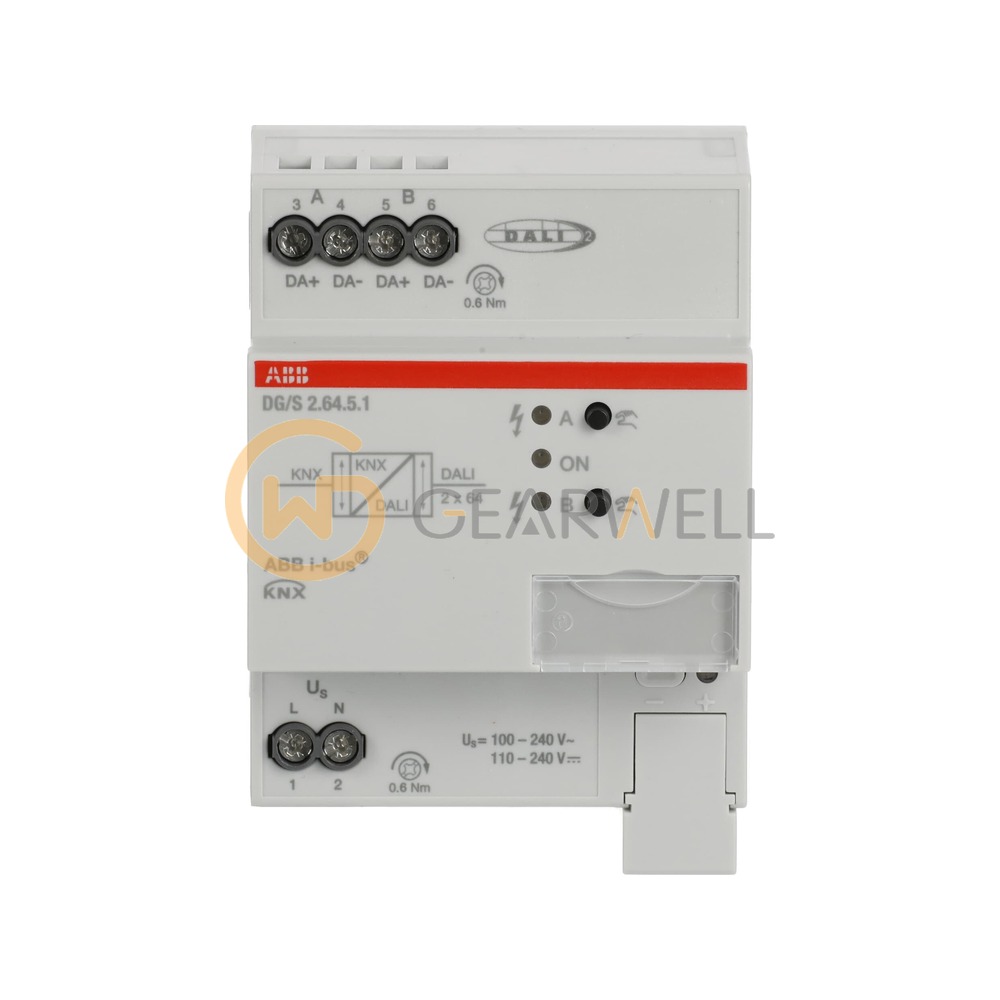

ABB 2CDG110274R0011 DG/S2.64.5.1 KNX DALI Gateway Premium 2-fold
- Brand
- ABB
- Model
- 2CDG110274R0011
- GEARWELL SKU
- GWP-000011168
- Category
- Industrial Communication
Key specifications
- Type
- DG/S2.64.5.1
- Width
- 4 modules
- Bus systems
- KNX (TP), DALI
- DALI outputs
- 2
- Input voltage
- 85 ... 264 V AC / 110 ... 240 V DC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 2CDG110274R0011 is the ABB i-bus KNX DALI Gateway Premium DG/S 2.64.5.1, a 2-fold DALI single-master controller to IEC 62 386 for DALI and DALI-2 systems. Each of its 2 outputs takes up to 64 DALI devices (normal lamps DT0, self-contained emergency lights DT1 and color control lamps DT8), controlled via KNX by broadcast, 16 lighting groups, 64 individual lamps and 16 scenes, with Tunable White, Dim2Warm and HCL functions. The DALI power supply is integrated; the gateway takes 100 – 240 V AC (85…265 V AC or 110…240 V DC) at maximum 11 W, is a MDRC 4 x 17.5 mm modules wide for 35 mm rail, weighs 0.15 kg and works from -5 °C to +45 °C.
Technical reference
| Product name | ABB 2CDG110274R0011 DG/S2.64.5.1 KNX DALI Gateway Premium 2-fold |
|---|---|
| Brand | ABB |
| Model | 2CDG110274R0011 |
| Category | Industrial Communication |
| Type | DG/S2.64.5.1 |
| Width | 4 modules |
| Bus systems | KNX (TP), DALI |
| DALI outputs | 2 |
| Input voltage | 85 ... 264 V AC / 110 ... 240 V DC |
| Degree of protection | IP20 |
| Operating temperature | -5 ... +45 °C |
