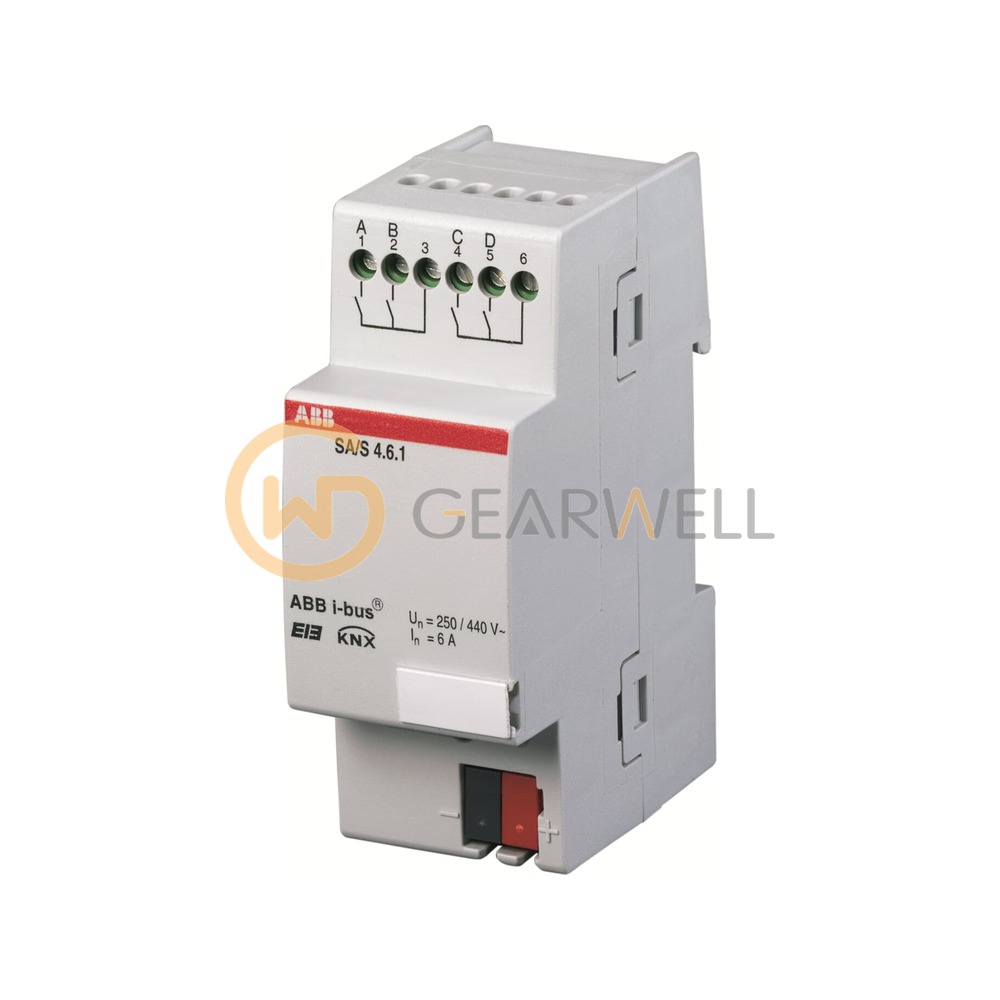

ABB 2CDG110036R0011 SA/S4.6.1 KNX Switch Actuator
- Brand
- ABB
- Model
- 2CDG110036R0011
- GEARWELL SKU
- GWP-000007523
- Category
- Relays & Controllers
Key specifications
- Width
- 36 (2 modules) mm
- Bus system
- KNX (TP)
- Net weight
- 0.134 kg
- Output voltage
- 230 V AC
- Type designation
- SA/S4.6.1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB 2CDG110036R0011 is the ABB i-bus EIB / KNX switch actuator SA/S 4.6.1, 4-fold, a modular installation device for 35 mm mounting rails powered from the bus (21...30 V DC). It switches 4 potential free outputs, rated 250 / 440 V AC and 6 A per output (AC1 and AC3 6 A / 230 V), with 1.5 W power loss at max. load and a weight of 0.13 kg.
Technical reference
| Product name | ABB 2CDG110036R0011 SA/S4.6.1 KNX Switch Actuator |
|---|---|
| Brand | ABB |
| Model | 2CDG110036R0011 |
| Category | Relays & Controllers |
| Width | 36 (2 modules) mm |
| Bus system | KNX (TP) |
| Net weight | 0.134 kg |
| Output voltage | 230 V AC |
| Type designation | SA/S4.6.1 |
| Number of outputs | 4 |
| Degree of protection | IP20 |
| Maximum switching current | 6 A |
