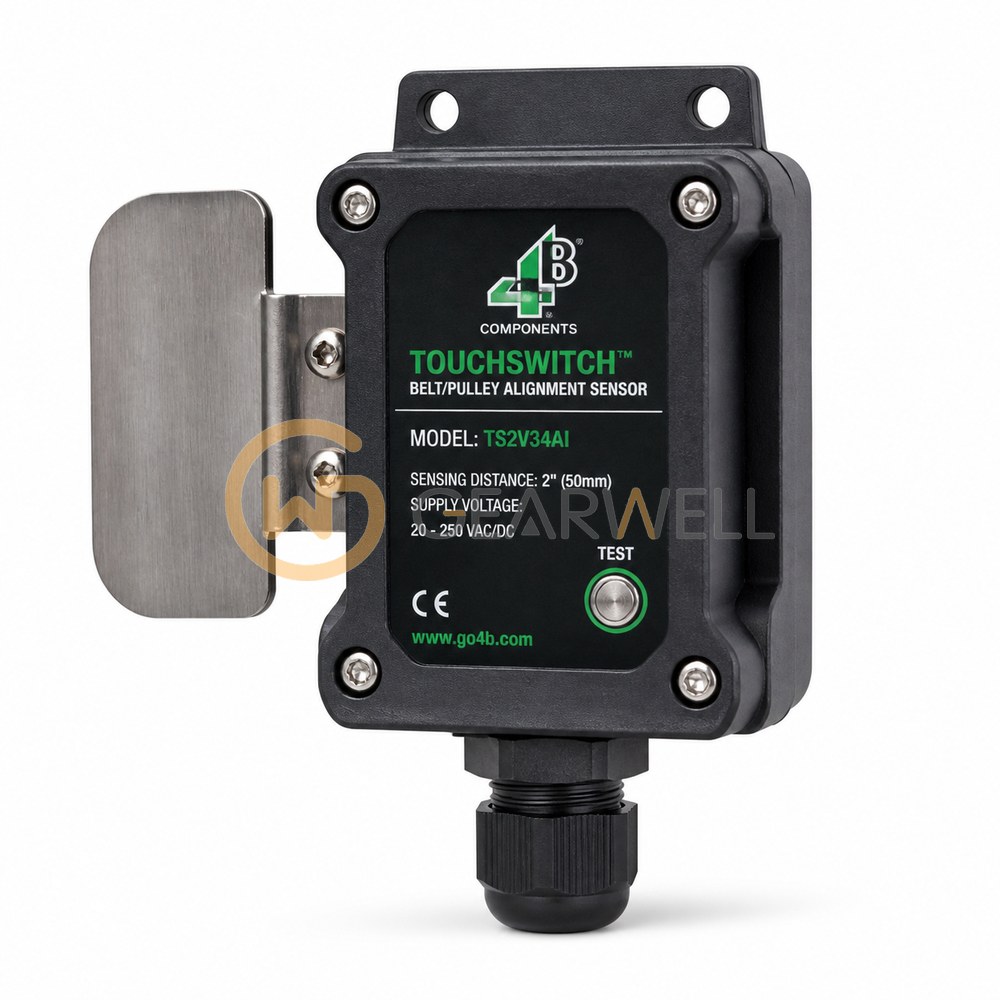

4B TS2V34AI Touchswitch belt alignment sensor
- Brand
- 4B
- Model
- TS2V34AI
- GEARWELL SKU
- GWP-000000094
- Category
- Industrial Automation Parts
Key specifications
- Cable
- 6-core, 3 m
- Output
- Normally-open solid-state relay, 50 mA at 240 V AC/DC, non-inductive
- Dimensions
- 89 mm diameter × 45 mm height
- Sensor face
- Hardened annealed stainless steel
- Product type
- Touchswitch belt and pulley misalignment sensor
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | 4B TS2V34AI Touchswitch belt alignment sensor |
|---|---|
| Brand | 4B |
| Model | TS2V34AI |
| Category | Industrial Automation Parts |
| Cable | 6-core, 3 m |
| Output | Normally-open solid-state relay, 50 mA at 240 V AC/DC, non-inductive |
| Dimensions | 89 mm diameter × 45 mm height |
| Sensor face | Hardened annealed stainless steel |
| Product type | Touchswitch belt and pulley misalignment sensor |
| Supply current | 21 mA maximum |
| Supply voltage | 12 V DC or 24 V DC |
| Status indicator | Green LED for power-on / no-alarm state |
