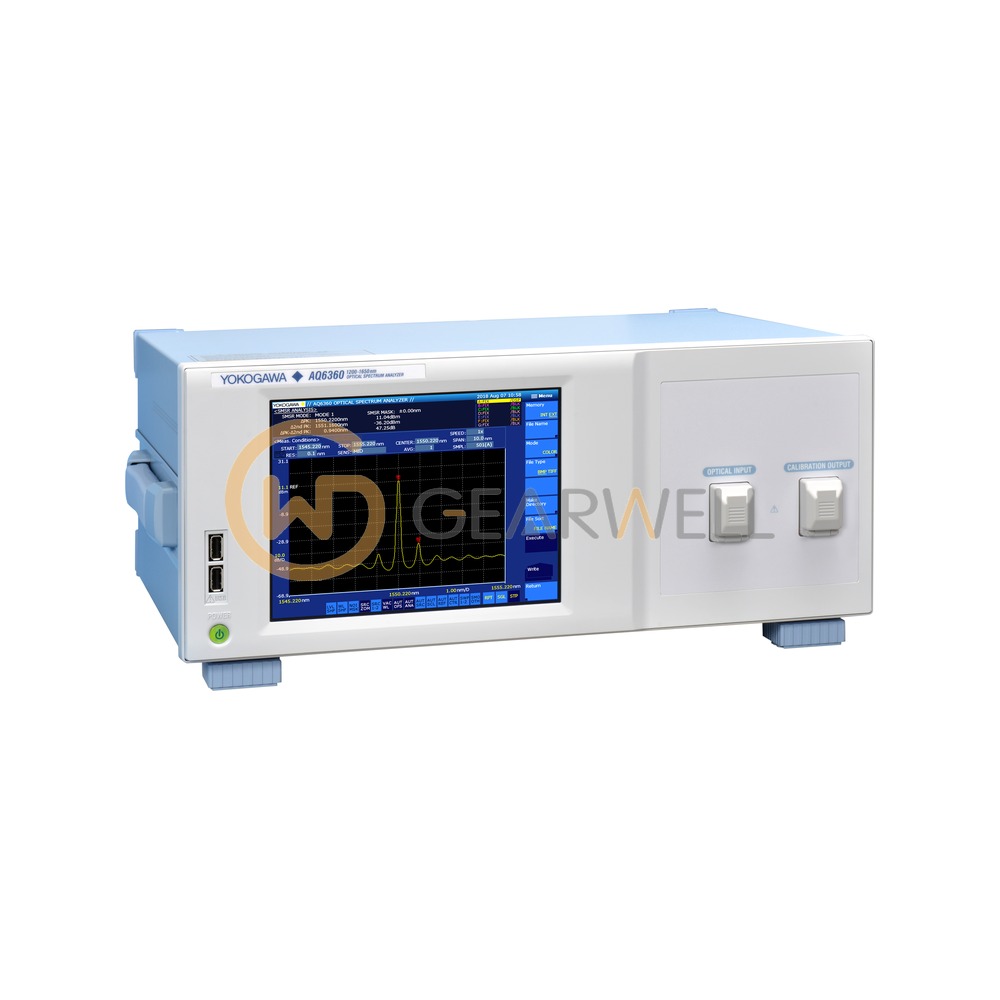

YOKOGAWA AQ6360 Optical Spectrum Analyzer
- Brand
- YOKOGAWA
- Model
- AQ6360
- GEARWELL SKU
- GWP-000010455
- Category
- Test & Measurement
Key specifications
- Weight
- approx. 15.5 kg
- Wavelength range
- 1200 to 1650 nm
- Power requirements
- 100 to 240 V AC, 50/60 Hz, approx. 100 VA
- Electrical interface
- GP-IB, Ethernet, USB, SVGA output
- Wavelength resolution setting
- 0.1, 0.2, 0.5, 1, 2 nm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YOKOGAWA AQ6360 Optical Spectrum Analyzer |
|---|---|
| Brand | YOKOGAWA |
| Model | AQ6360 |
| Category | Test & Measurement |
| Weight | approx. 15.5 kg |
| Wavelength range | 1200 to 1650 nm |
| Power requirements | 100 to 240 V AC, 50/60 Hz, approx. 100 VA |
| Electrical interface | GP-IB, Ethernet, USB, SVGA output |
| Wavelength resolution setting | 0.1, 0.2, 0.5, 1, 2 nm |
| Wavelength accuracy (1520 to 1580 nm) | ±0.02 nm |
| Level sensitivity (1300 to 1620 nm, HIGH2) | -80 dBm |
| Dynamic range (peak ±0.4 nm, 0.1 nm resolution) | 55 dB |
