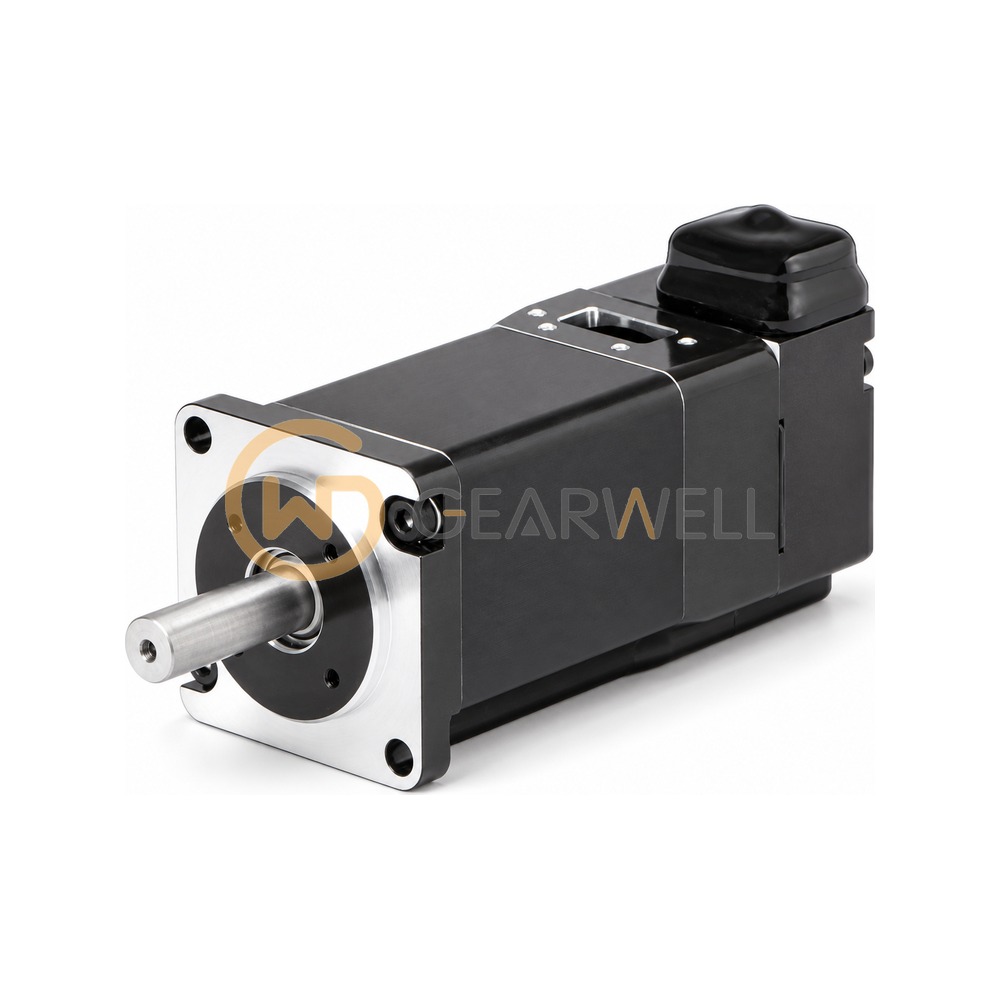

YASKAWA SGM7J-01A7C6E Sigma-7 SGM7J Servo Motor 100 W
- Brand
- YASKAWA
- Model
- SGM7J-01A7C6E
- GEARWELL SKU
- GWP-000013301
- Category
- Servo Systems
Key specifications
- Series
- YASKAWA Sigma-7 SGM7J rotary servomotor (medium inertia, high speed)
- Options (code "E")
- With oil seal and holding brake (24 VDC)
- Shaft end (code "6")
- Straight with key and tap
- Rated output (code "01")
- 100 W
- Rated / max. motor speed
- 3000 / 6000 min-1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YASKAWA SGM7J-01A7C6E Sigma-7 SGM7J Servo Motor 100 W |
|---|---|
| Brand | YASKAWA |
| Model | SGM7J-01A7C6E |
| Category | Servo Systems |
| Series | YASKAWA Sigma-7 SGM7J rotary servomotor (medium inertia, high speed) |
| Options (code "E") | With oil seal and holding brake (24 VDC) |
| Shaft end (code "6") | Straight with key and tap |
| Rated output (code "01") | 100 W |
| Rated / max. motor speed | 3000 / 6000 min-1 |
| Serial encoder (code "7") | 24-bit absolute |
| Power supply voltage (code "A") | 200 VAC |
| Design revision code "C" (5th digit) | as collected; not listed in the official model-number table (defined: A) |
| Rated torque / instantaneous max. torque (01A rating) | 0.318 / 1.11 N·m |
