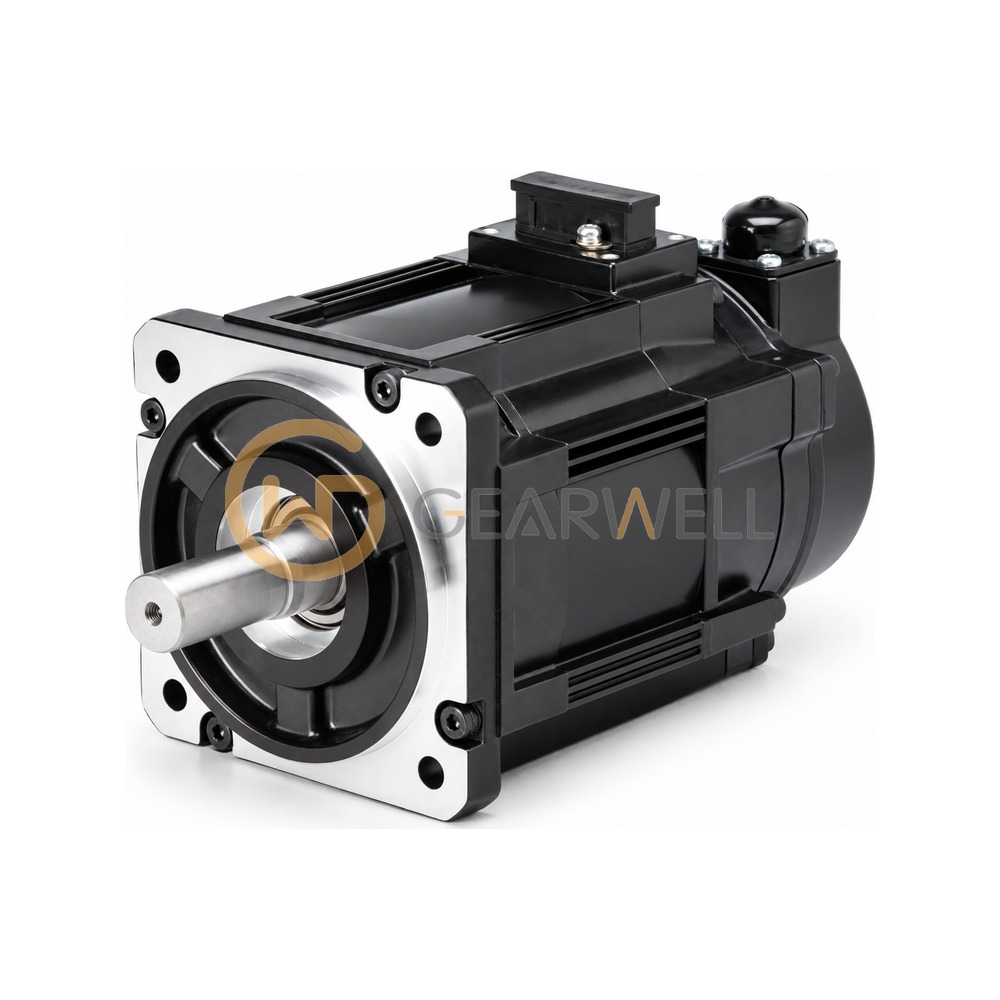

YASKAWA SGM7G-20AFC61 Sigma-7 SGM7G Servo Motor 1.8 kW
- Brand
- YASKAWA
- Model
- SGM7G-20AFC61
- GEARWELL SKU
- GWP-000013300
- Category
- Servo Systems
Key specifications
- Series
- YASKAWA Sigma-7 SGM7G rotary servomotor (medium inertia, low speed, large torque)
- Options (code "1")
- Without options
- Shaft end (code "6")
- Straight with key and tap
- Rated output (code "20")
- 1.8 kW
- Rated / max. motor speed
- 1500 / 3000 min-1
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | YASKAWA SGM7G-20AFC61 Sigma-7 SGM7G Servo Motor 1.8 kW |
|---|---|
| Brand | YASKAWA |
| Model | SGM7G-20AFC61 |
| Category | Servo Systems |
| Series | YASKAWA Sigma-7 SGM7G rotary servomotor (medium inertia, low speed, large torque) |
| Options (code "1") | Without options |
| Shaft end (code "6") | Straight with key and tap |
| Rated output (code "20") | 1.8 kW |
| Rated / max. motor speed | 1500 / 3000 min-1 |
| Serial encoder (code "F") | 24-bit incremental |
| Power supply voltage (code "A") | 200 VAC |
| Design revision code "C" (5th digit) | as collected; not listed in the official model-number table (defined: A) |
| Rated torque / instantaneous max. torque (20A rating) | 11.5 / 28.7 N·m |
