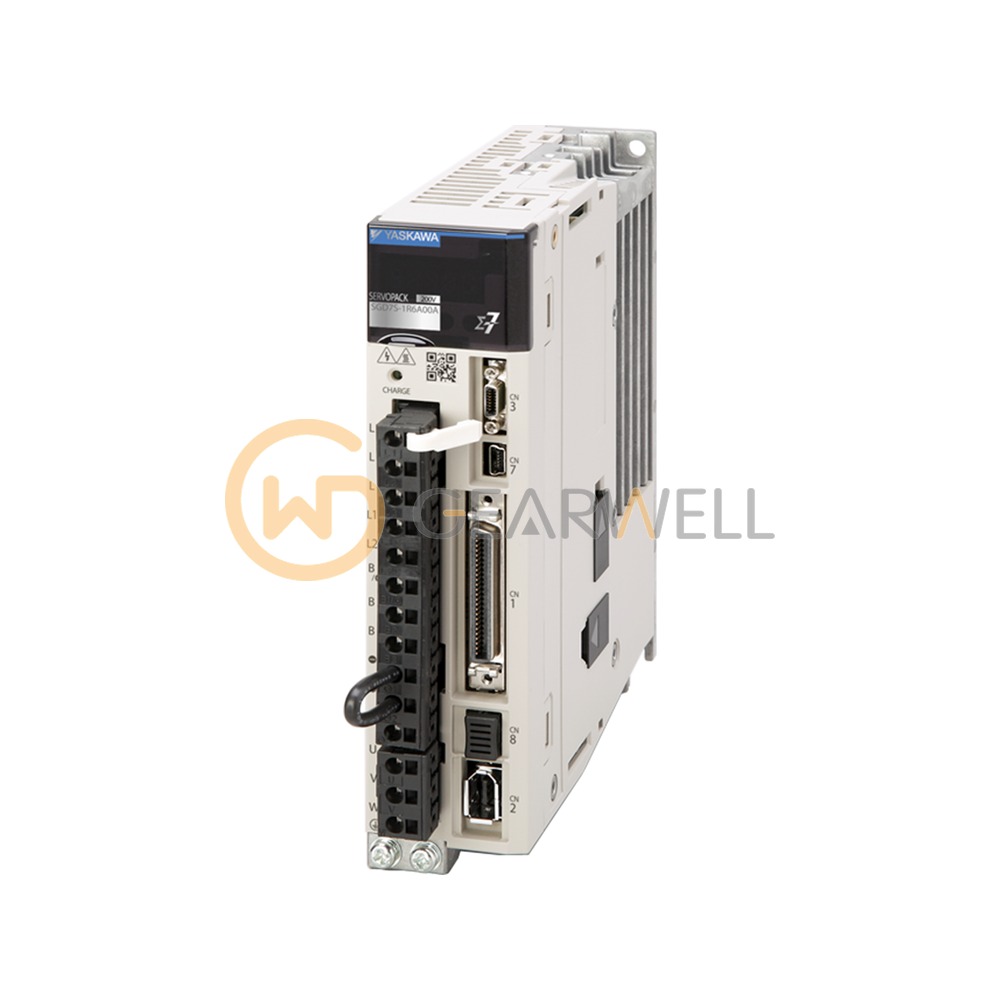

YASKAWA SGD7S-1R6A00A Sigma-7S SERVOPACK Servo Drive
- Brand
- YASKAWA
- Model
- SGD7S-1R6A00A
- GEARWELL SKU
- GWP-000009955
- Category
- Servo Systems
Key specifications
- Width
- 40 mm
- Interface
- Analog voltage/pulse train reference
- Mass (approx.)
- 0.9 kg
- Continuous output current
- 1.6 Arms
- Main circuit power supply
- 200-240 VAC, 50/60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Yaskawa SGD7S-1R6A00A is a Sigma-7 series single-axis SERVOPACK (Sigma-7S) for analog voltage and pulse train references, sized for servomotors up to 0.2 kW. It runs from 200 VAC to 240 VAC, 50 Hz/60 Hz, and accepts either a single-phase or a three-phase input. Continuous output current is 1.6 Arms with an instantaneous maximum of 5.9 Arms, and this size has no built-in regenerative resistor. It is the matching drive for the 150 W and 200 W SGM7J-C2A, SGM7J-02A, SGM7A-C2A and SGM7A-02A rotary servomotors.
Technical reference
| Product name | YASKAWA SGD7S-1R6A00A Sigma-7S SERVOPACK Servo Drive |
|---|---|
| Brand | YASKAWA |
| Model | SGD7S-1R6A00A |
| Category | Servo Systems |
| Width | 40 mm |
| Interface | Analog voltage/pulse train reference |
| Mass (approx.) | 0.9 kg |
| Continuous output current | 1.6 Arms |
| Main circuit power supply | 200-240 VAC, 50/60 Hz |
| Max. applicable motor capacity | 0.2 kW |
| Instantaneous maximum output current | 5.9 Arms |
