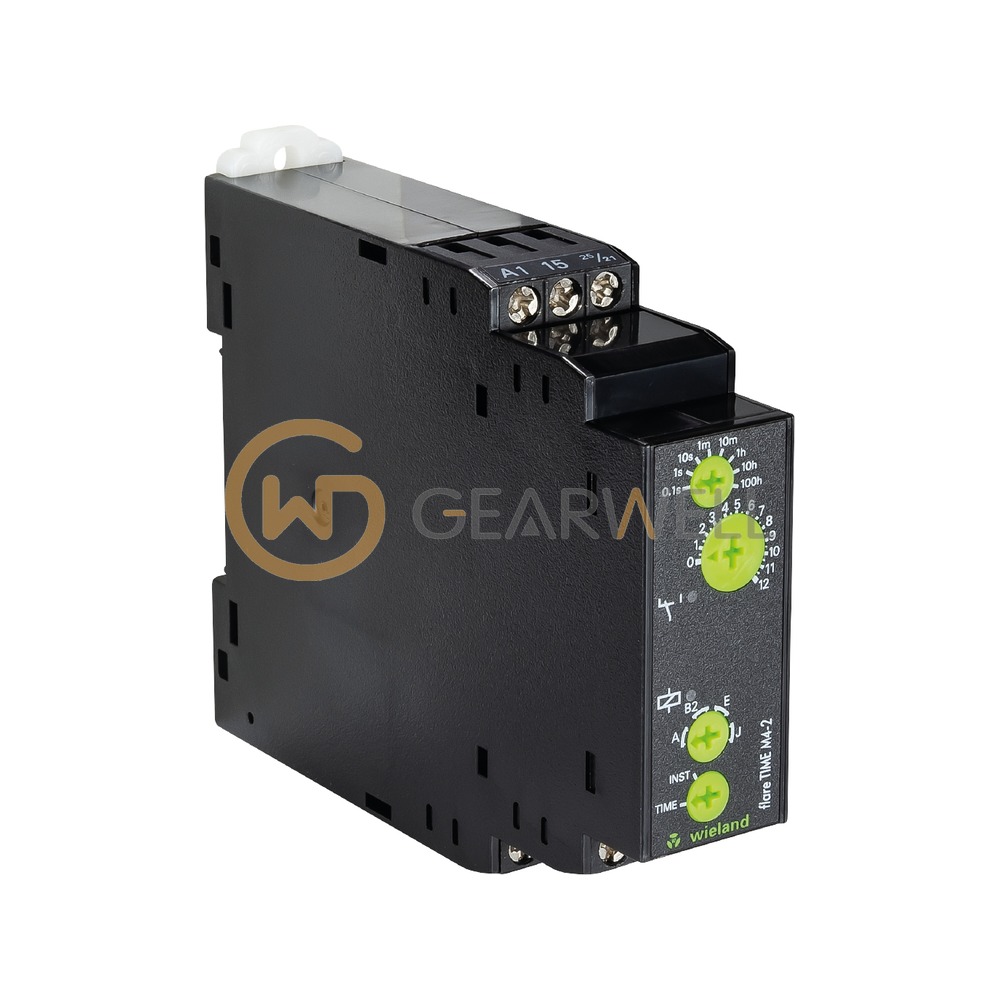

Wieland 81.020.0001.0 flare TIME M4-2 Multi-Function Timer Relay
- Brand
- WIELAND
- Model
- 81.020.0001.0
- GEARWELL SKU
- GWP-000009739
- Category
- Relays & Controllers
Key specifications
- Outputs
- 1 delayed + 1 immediate CO or 2 delayed CO
- Functions
- 4
- Time range
- 0.1 s ... 1200 h
- Supply voltage
- AC/DC 24-240 V, 50-60 Hz
- Connection type
- screw connection
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Wieland 81.020.0001.0 flare TIME M4-2 Multi-Function Timer Relay |
|---|---|
| Brand | WIELAND |
| Model | 81.020.0001.0 |
| Category | Relays & Controllers |
| Outputs | 1 delayed + 1 immediate CO or 2 delayed CO |
| Functions | 4 |
| Time range | 0.1 s ... 1200 h |
| Supply voltage | AC/DC 24-240 V, 50-60 Hz |
| Connection type | screw connection |
| Dimensions (W x H x D) | 22.5 x 89.4 x 100 mm |
