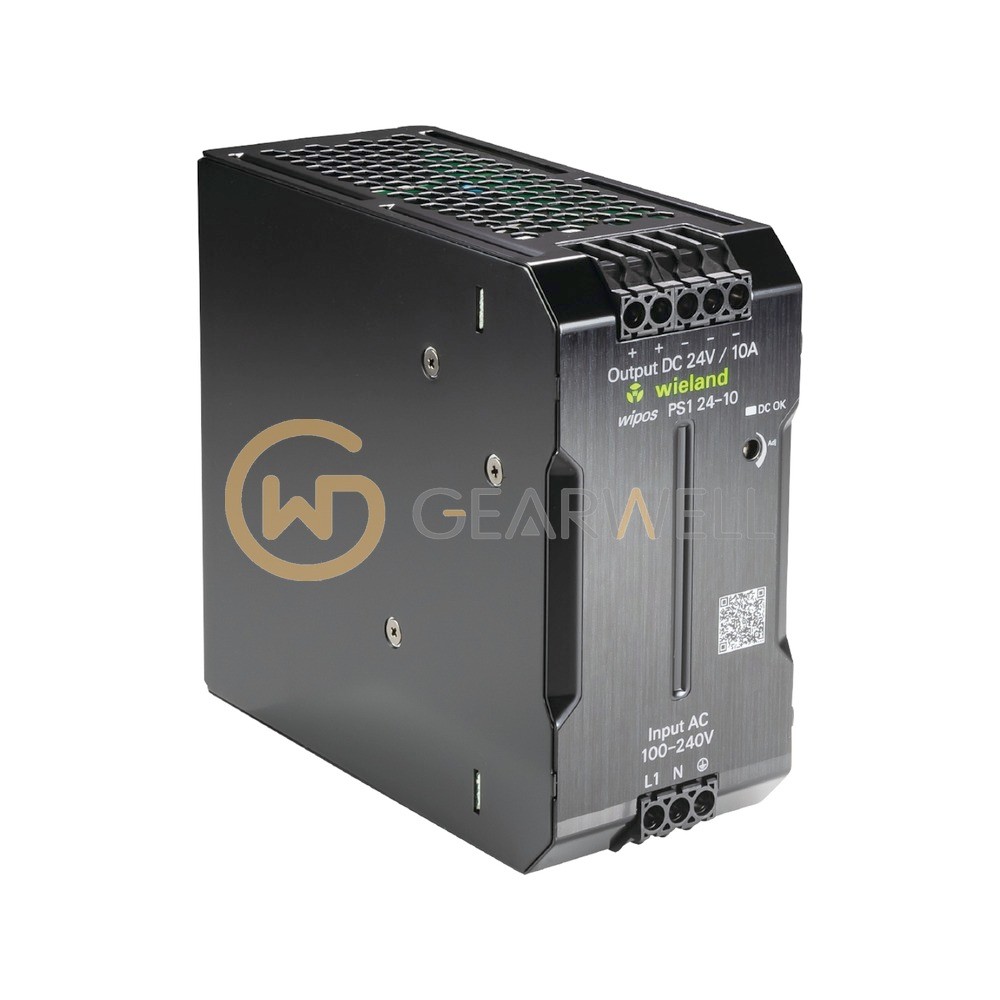

WIELAND 81.000.6540.0 wipos PS1 24-10 Switched-Mode Power Supply
- Brand
- WIELAND
- Model
- 81.000.6540.0
- GEARWELL SKU
- GWP-000014156
- Category
- Power Supplies
Key specifications
- Efficiency
- 92 %
- Output power
- 240 W
- Input voltage
- 85-264 V AC / 90-350 V DC
- Article number
- 81.000.6540.0
- Output current
- 10 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | WIELAND 81.000.6540.0 wipos PS1 24-10 Switched-Mode Power Supply |
|---|---|
| Brand | WIELAND |
| Model | 81.000.6540.0 |
| Category | Power Supplies |
| Efficiency | 92 % |
| Output power | 240 W |
| Input voltage | 85-264 V AC / 90-350 V DC |
| Article number | 81.000.6540.0 |
| Output current | 10 A |
| Output voltage | 24 (21.6-27.6 adjustable) V DC |
| Type designation | WIPOS PS1 24-10 |
| Degree of protection | IP20 |
| Dimensions (W x H x D) | 60 x 125 x 140 mm |
| Operating temperature | -40 to 70 °C |
