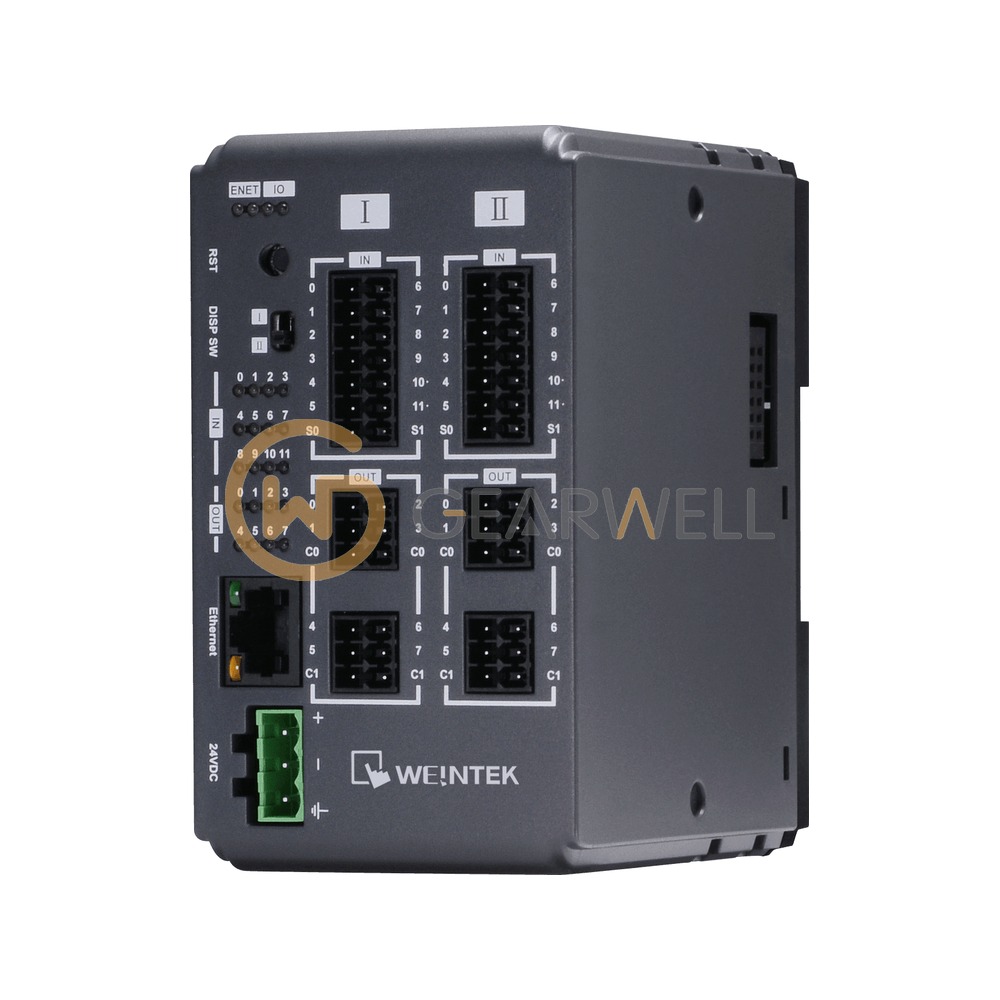

Weintek iR-ETN40R iR Series Ethernet Remote I/O Coupler
- Brand
- Weintek
- Model
- iR-ETN40R
- GEARWELL SKU
- GWP-000007775
- Category
- PLCs & I/O
Key specifications
- Ethernet
- 1 port, 10/100 Mbps
- Mounting
- 35 mm DIN rail
- Protocol
- Modbus TCP Server, EtherNet/IP adapter
- Power supply
- 24 (-15%/+20%) V DC
- Dimensions (W x H x D)
- 64 x 109 x 81 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Weintek iR-ETN40R is an iR series remote I/O coupler with built-in I/O, connected over one 10/100 Mbps Ethernet port as a Modbus TCP server or EtherNet/IP adapter with up to 8 connections. On board are 24 isolated digital inputs (20 general sink or source inputs and 4 high-speed inputs up to 20KHz) and 16 relay outputs rated 250VAC/30VDC, 2A per channel (Max 8A). Up to 16 iR expansion modules can be added on the internal bus, for a maximum of 224 digital inputs, 112 digital outputs, 64 analog inputs and 64 analog outputs. It runs from 24 VDC (-15%/+20%), measures 64 x 109 x 81 mm, mounts on a 35mm DIN rail, is IP20 and operates from -10 to 60°C.
Technical reference
| Product name | Weintek iR-ETN40R iR Series Ethernet Remote I/O Coupler |
|---|---|
| Brand | Weintek |
| Model | iR-ETN40R |
| Category | PLCs & I/O |
| Ethernet | 1 port, 10/100 Mbps |
| Mounting | 35 mm DIN rail |
| Protocol | Modbus TCP Server, EtherNet/IP adapter |
| Power supply | 24 (-15%/+20%) V DC |
| Dimensions (W x H x D) | 64 x 109 x 81 mm |
| Operating temperature | -10 to 60 °C |
| Built-in digital inputs | 24 (20 general, 4 high-speed 20 kHz) |
| Built-in digital outputs | 16 relay, 250 V AC / 30 V DC, 2 A per channel |
