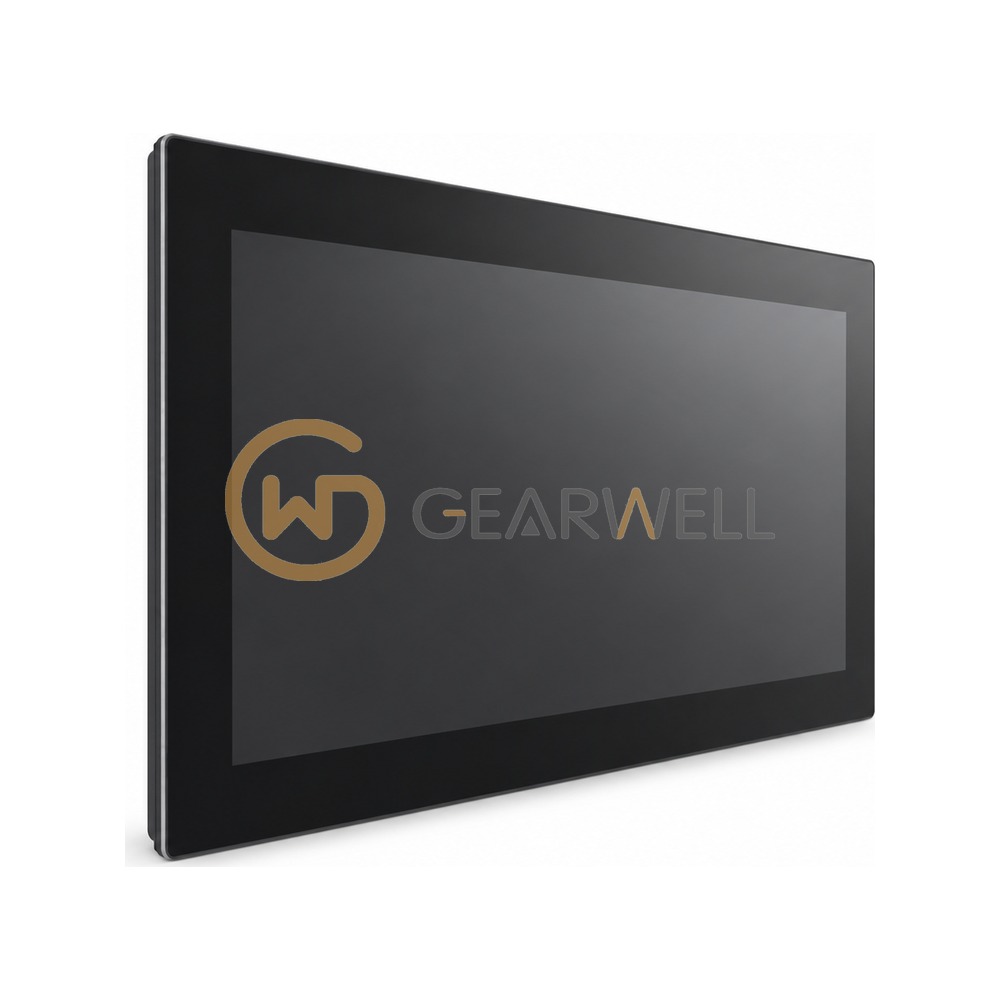

Weintek cMT3218X cMT X Advanced 21.5" HMI Touch Panel
- Brand
- Weintek
- Model
- cMT3218X
- GEARWELL SKU
- GWP-000015513
- Category
- HMIs & Industrial PCs
Key specifications
- CPU
- Quad-core RISC
- Memory
- 4 GB flash, 2 GB RAM
- Display
- 21.5" WVA, 1920 x 1080
- Ethernet
- LAN1 10/100/1000 Base-T, LAN2 10/100 Base-T
- COM ports
- Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus; Con.B: COM1 RS-232 4W, COM3 RS-232 2W
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weintek cMT3218X cMT X Advanced 21.5" HMI Touch Panel |
|---|---|
| Brand | Weintek |
| Model | cMT3218X |
| Category | HMIs & Industrial PCs |
| CPU | Quad-core RISC |
| Memory | 4 GB flash, 2 GB RAM |
| Display | 21.5" WVA, 1920 x 1080 |
| Ethernet | LAN1 10/100/1000 Base-T, LAN2 10/100 Base-T |
| COM ports | Con.A: COM2 RS-485 2W/4W, COM3 RS-485 2W, CAN Bus; Con.B: COM1 RS-232 4W, COM3 RS-232 2W |
| Input power | 24±20% V DC |
| Touch panel | Tempered glass, capacitive |
| Suffix options | P (cMT3218XP is the only variant listed by Weintek; specify on order) |
| Dimensions (W x H x D) | 546 x 354 x 47.5 mm |
| Front panel protection | NEMA4 / IP66 |
