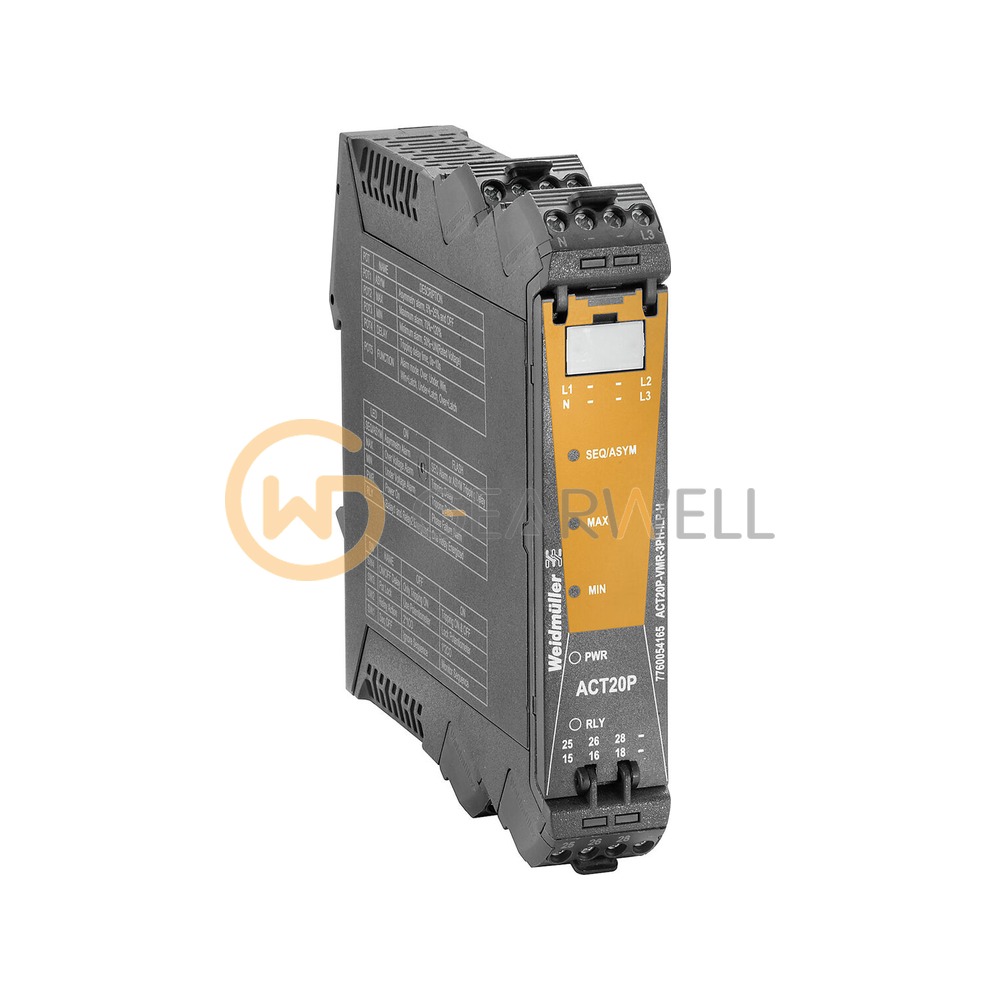

Weidmuller ACT20P-VMR-3PH-ILP-H-S Three-Phase Voltage Monitoring Relay
- Brand
- Weidmüller
- Model
- ACT20P-VMR-3PH-ILP-H-S
- GEARWELL SKU
- GWP-000010202
- Category
- Relays & Controllers
Key specifications
- Supply
- From voltage measurement inputs
- Outputs
- 2 x relay
- Order No.
- 7760054165
- Net weight
- 233 g
- Input voltage
- 180...500 V AC, 3-phase
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmuller ACT20P-VMR-3PH-ILP-H-S Three-Phase Voltage Monitoring Relay |
|---|---|
| Brand | Weidmüller |
| Model | ACT20P-VMR-3PH-ILP-H-S |
| Category | Relays & Controllers |
| Supply | From voltage measurement inputs |
| Outputs | 2 x relay |
| Order No. | 7760054165 |
| Net weight | 233 g |
| Input voltage | 180...500 V AC, 3-phase |
| Input frequency | 40...60 Hz |
| Dimensions (W x H x D) | 22.5 x 117 x 114.3 mm |
| Switching voltage, max. | 250 V AC / 30 V DC |
