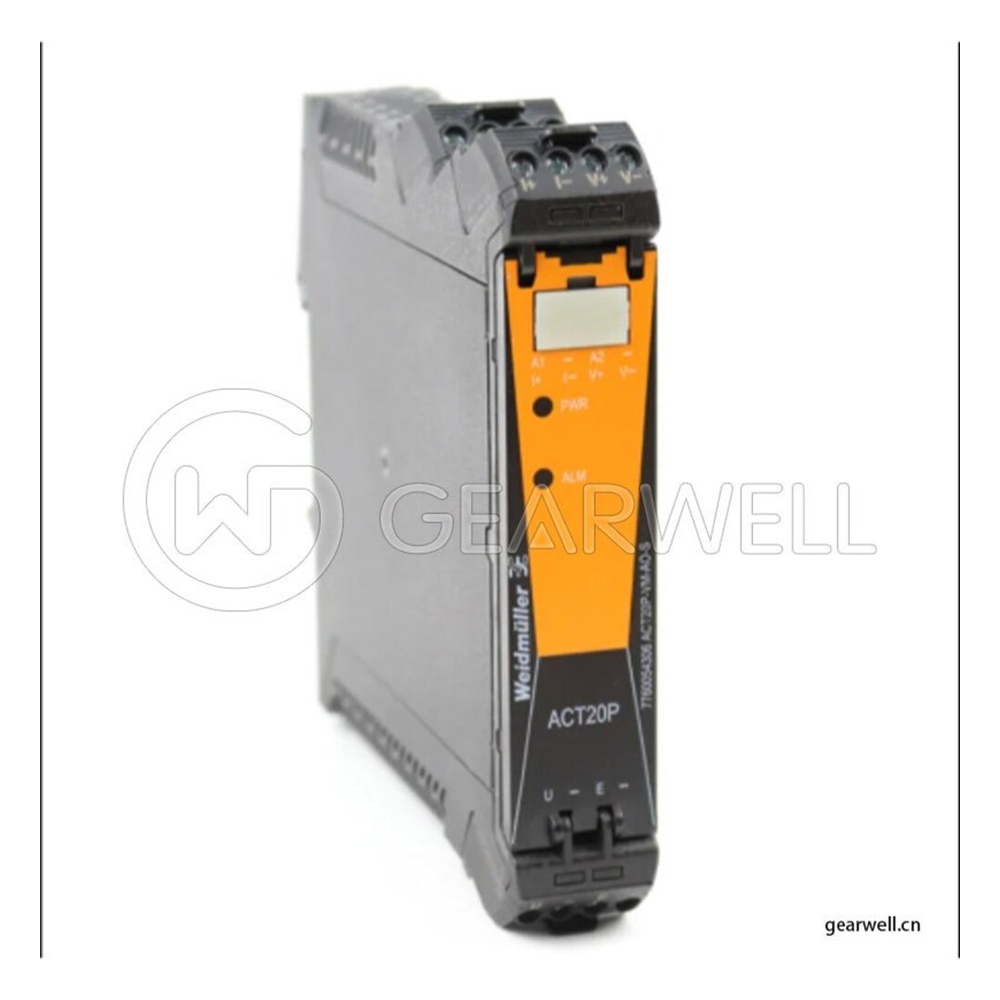

Weidmüller ACT20P-VM-AO-S Voltage Signal Isolator, 7760054306
- Brand
- Weidmüller
- Model
- ACT20P-VM-AO-S
- GEARWELL SKU
- GWP-000001879
- Category
- Industrial Automation Parts
Key specifications
- Configurable voltage input
- DC ranges: 0-30/60/150/300/440/660 V; AC ranges: 0-60/144/300/440 V, sinusoidal RMS at 40-60 Hz (detailed input table)
- Active analogue output
- 0-10 V, 0-20 mA or 4-20 mA; connected controller input must be passive
- Accuracy
- 0.5% FSR
- Galvanic isolation
- 3-way: input, output and supply
- Wire connection
- Screw terminals; tightening torque 0.4-0.6 N·m
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmüller ACT20P-VM-AO-S Voltage Signal Isolator, 7760054306 |
|---|---|
| Brand | Weidmüller |
| Model | ACT20P-VM-AO-S |
| Category | Industrial Automation Parts |
| Configurable voltage input | DC ranges: 0-30/60/150/300/440/660 V; AC ranges: 0-60/144/300/440 V, sinusoidal RMS at 40-60 Hz (detailed input table) |
| Active analogue output | 0-10 V, 0-20 mA or 4-20 mA; connected controller input must be passive |
| Accuracy | 0.5% FSR |
| Galvanic isolation | 3-way: input, output and supply |
| Wire connection | Screw terminals; tightening torque 0.4-0.6 N·m |
| Manufacturer order number | 7760054306 |
| Product type | Analogue voltage signal converter / isolating amplifier |
| Step response time | Less than 300 ms |
| Supply voltage | 24-240 V AC/DC (±10%) |
| Input resistance | 1 MΩ ±5% |
| Protection rating | IP20 |
| Manufacturer | Weidmüller |
| Operating temperature | -20 to +60 °C |
