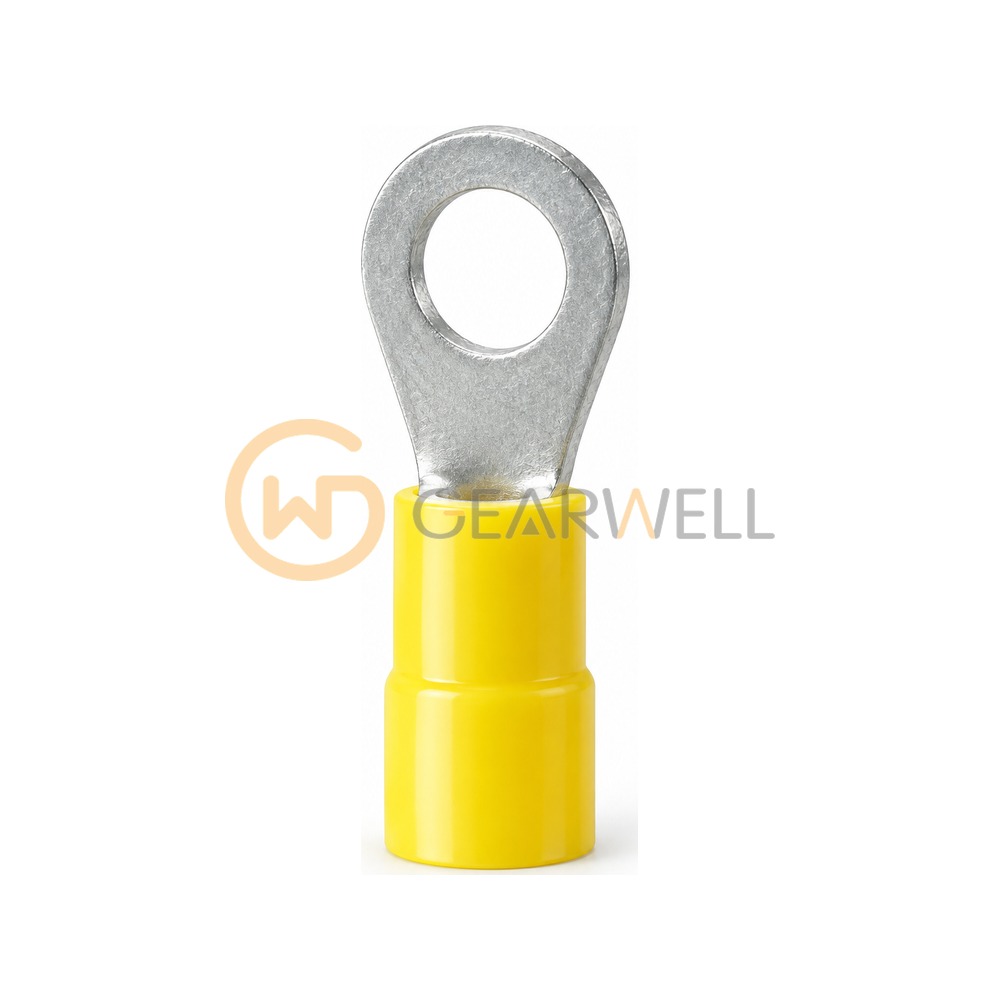

Weidmueller 9200270000 Ring cable lug LIR 6M10 V
- Brand
- Weidmüller
- Model
- 9200270000
- GEARWELL SKU
- GWP-000014313
- Category
- Terminals, Cables & Connectors
Key specifications
- Qty.
- 100 items
- Width
- 35.1 mm
- Net weight
- 2.1 g
- Dimension (bolt)
- M 10
- Inside diameter (d1)
- 10.5 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmueller 9200270000 Ring cable lug LIR 6M10 V |
|---|---|
| Brand | Weidmüller |
| Model | 9200270000 |
| Category | Terminals, Cables & Connectors |
| Qty. | 100 items |
| Width | 35.1 mm |
| Net weight | 2.1 g |
| Dimension (bolt) | M 10 |
| Inside diameter (d1) | 10.5 mm |
| Identification colour | yellow |
| Conductor cross-section, max. | 6 mm² |
| Conductor cross-section, min. | 4 mm² |
