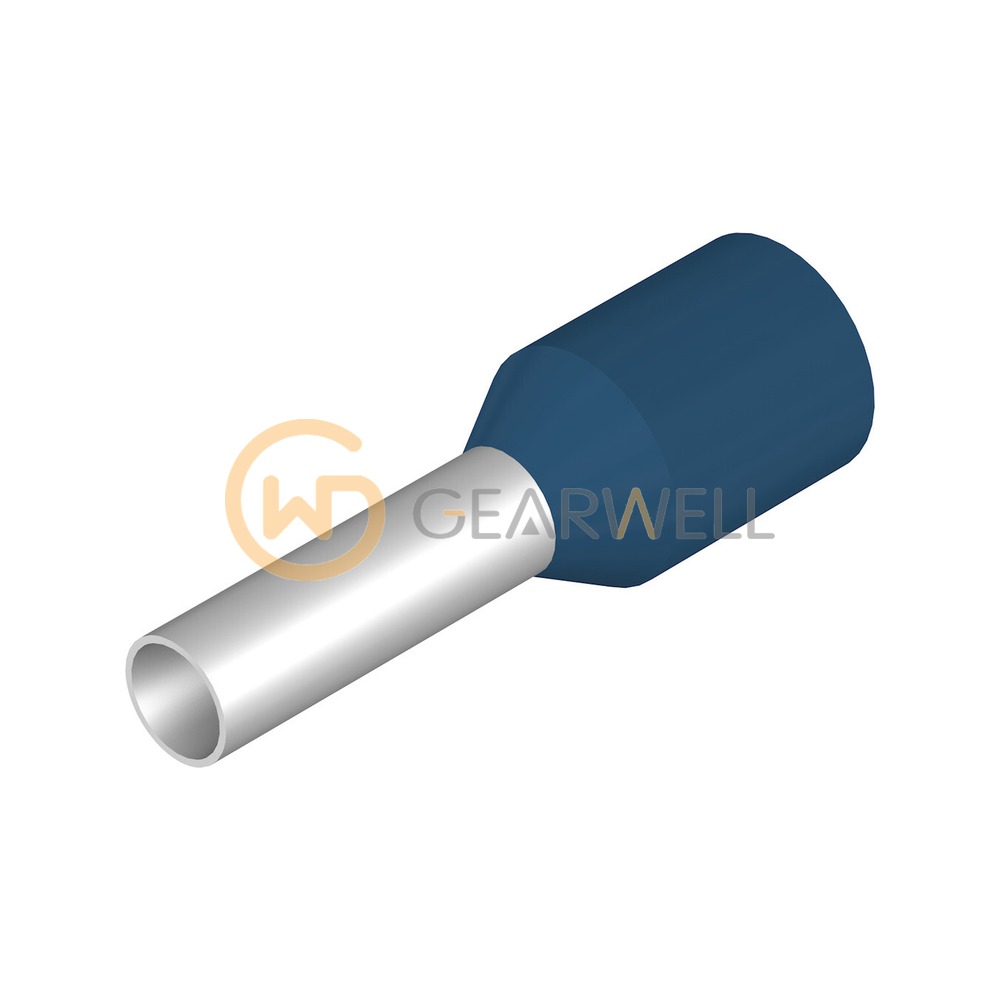

Weidmüller 9019160000 Wire-end ferrule H2,5/15D BL, with plastic collar
- Brand
- Weidmüller
- Model
- 9019160000
- GEARWELL SKU
- GWP-000011457
- Category
- Terminals, Cables & Connectors
Key specifications
- Qty.
- 500 items
- Length (L1)
- 15 mm
- Stripping length
- 10 mm
- Collar diameter (D2)
- 4.2 mm
- Conductor cross-section
- 2.5 mm²
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmüller 9019160000 Wire-end ferrule H2,5/15D BL, with plastic collar |
|---|---|
| Brand | Weidmüller |
| Model | 9019160000 |
| Category | Terminals, Cables & Connectors |
| Qty. | 500 items |
| Length (L1) | 15 mm |
| Stripping length | 10 mm |
| Collar diameter (D2) | 4.2 mm |
| Conductor cross-section | 2.5 mm² |
| Contact surface length (L2) | 8 mm |
| Wire connection cross section AWG, max. | AWG 14 |
