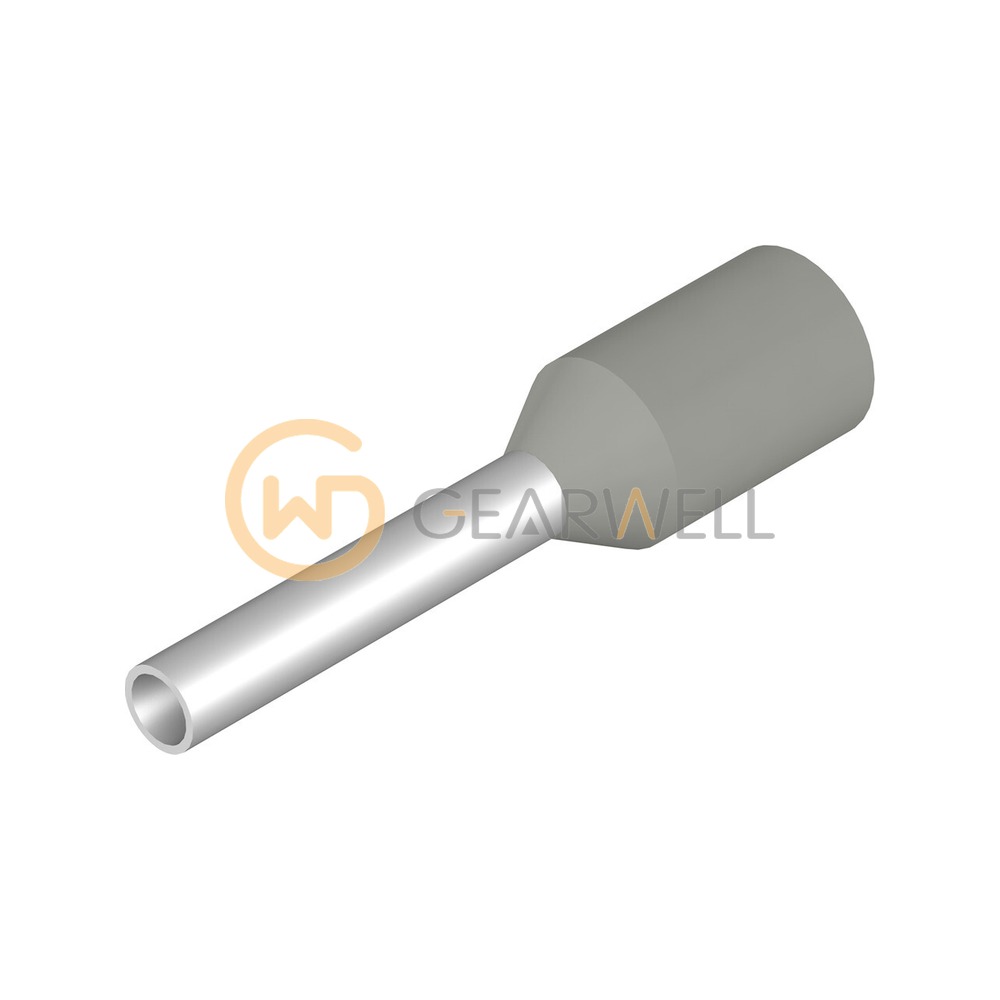

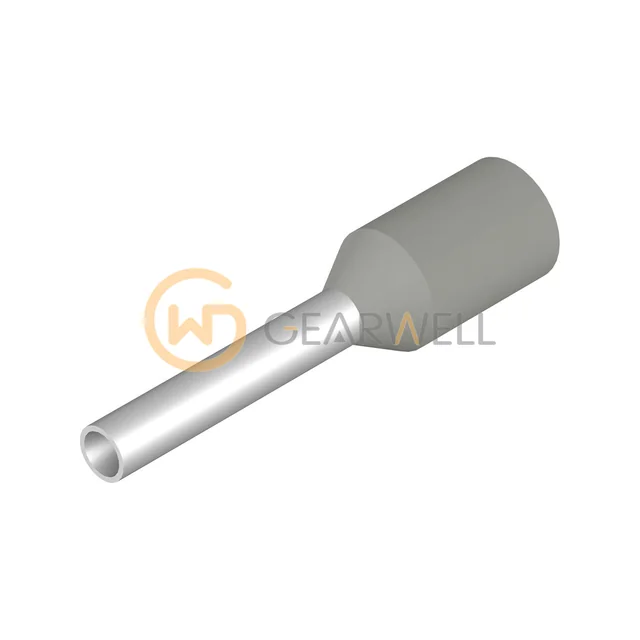

Weidmüller 9019040000 Wire-end ferrule H0,75/14D GR, with plastic collar
- Brand
- Weidmüller
- Model
- 9019040000
- GEARWELL SKU
- GWP-000011455
- Category
- Terminals, Cables & Connectors
Key specifications
- Qty.
- 500 items
- Length (L1)
- 14 mm
- Stripping length
- 10 mm
- Collar diameter (D2)
- 2.8 mm
- Conductor cross-section
- 0.75 mm²
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmüller 9019040000 Wire-end ferrule H0,75/14D GR, with plastic collar |
|---|---|
| Brand | Weidmüller |
| Model | 9019040000 |
| Category | Terminals, Cables & Connectors |
| Qty. | 500 items |
| Length (L1) | 14 mm |
| Stripping length | 10 mm |
| Collar diameter (D2) | 2.8 mm |
| Conductor cross-section | 0.75 mm² |
| Contact surface length (L2) | 8 mm |
| Wire connection cross section AWG, max. | AWG 18 |
