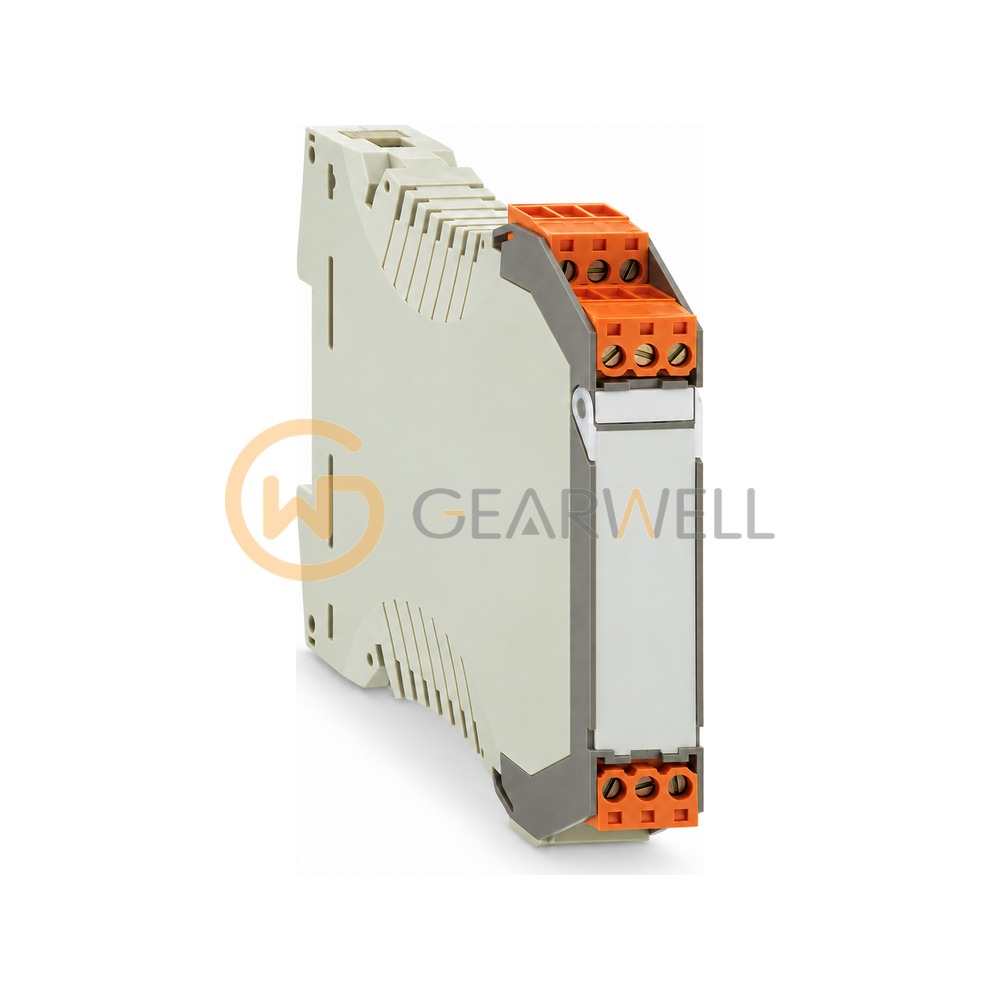

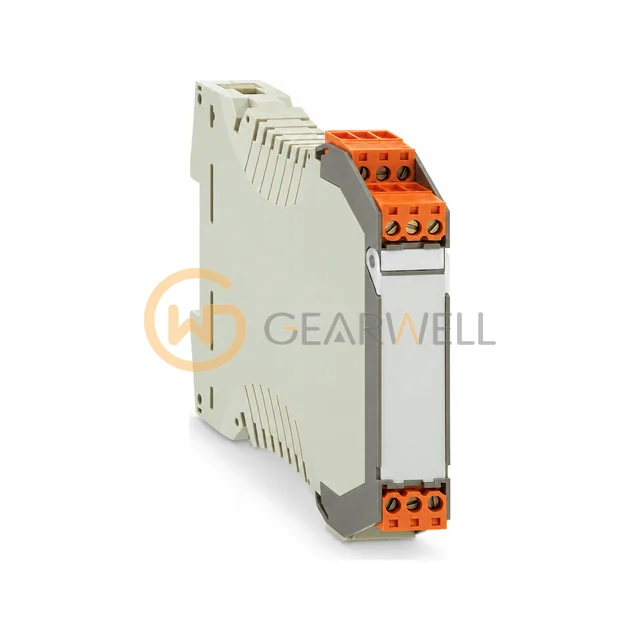

Weidmueller 8560720000 Temperature transducer WAS5 PRO THERMO (thermocouple)
- Brand
- Weidmüller
- Model
- 8560720000
- GEARWELL SKU
- GWP-000014316
- Category
- PLCs & I/O
Key specifications
- Depth
- 112.4 mm
- Width
- 17.5 mm
- Sensor
- Thermocouples: B, E, J, K, L, N, R, S, T,U
- Net weight
- 128.8 g
- Supply voltage
- 24 V DC ± 20 %
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmueller 8560720000 Temperature transducer WAS5 PRO THERMO (thermocouple) |
|---|---|
| Brand | Weidmüller |
| Model | 8560720000 |
| Category | PLCs & I/O |
| Depth | 112.4 mm |
| Width | 17.5 mm |
| Sensor | Thermocouples: B, E, J, K, L, N, R, S, T,U |
| Net weight | 128.8 g |
| Supply voltage | 24 V DC ± 20 % |
| Operating temperature | 0 °C...55 °C |
| Temperature input range | -200...+1820 °C |
