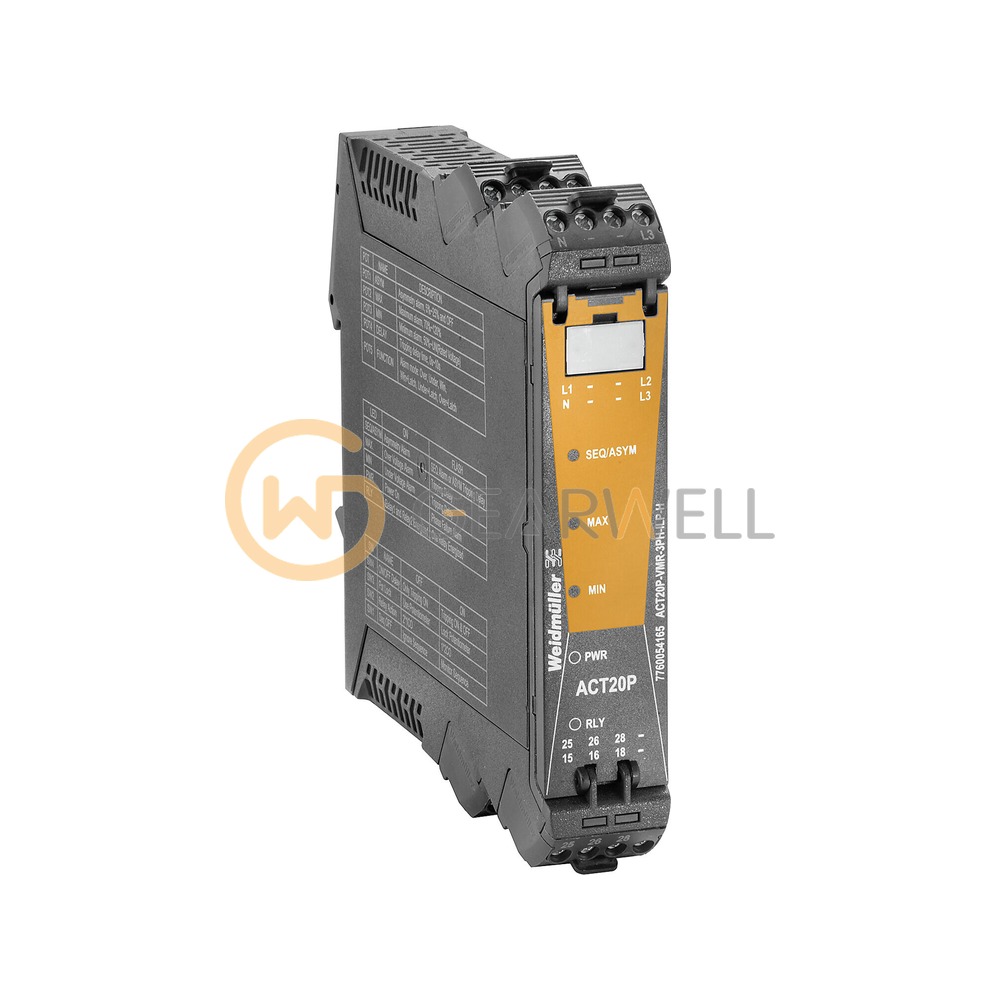

Weidmüller 7760054165 Trip amplifier / 3-phase voltage monitor ACT20P-VMR-3PH-ILP-H-S
- Brand
- Weidmüller
- Model
- 7760054165
- GEARWELL SKU
- GWP-000012540
- Category
- Relays & Controllers
Key specifications
- Width
- 22.5 mm
- Input voltage
- 180…500 VAC
- Supply voltage
- supplied from voltage measurement inputs
- Input frequency
- 40…60 Hz
- Input measurement range
- 200…480 VAC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Weidmüller 7760054165 Trip amplifier / 3-phase voltage monitor ACT20P-VMR-3PH-ILP-H-S |
|---|---|
| Brand | Weidmüller |
| Model | 7760054165 |
| Category | Relays & Controllers |
| Width | 22.5 mm |
| Input voltage | 180…500 VAC |
| Supply voltage | supplied from voltage measurement inputs |
| Input frequency | 40…60 Hz |
| Input measurement range | 200…480 VAC |
| Rated switching current | 5 A |
| Switching voltage (AC), max. | 250 V |
| Number of digital outputs | 2 (relay) |
