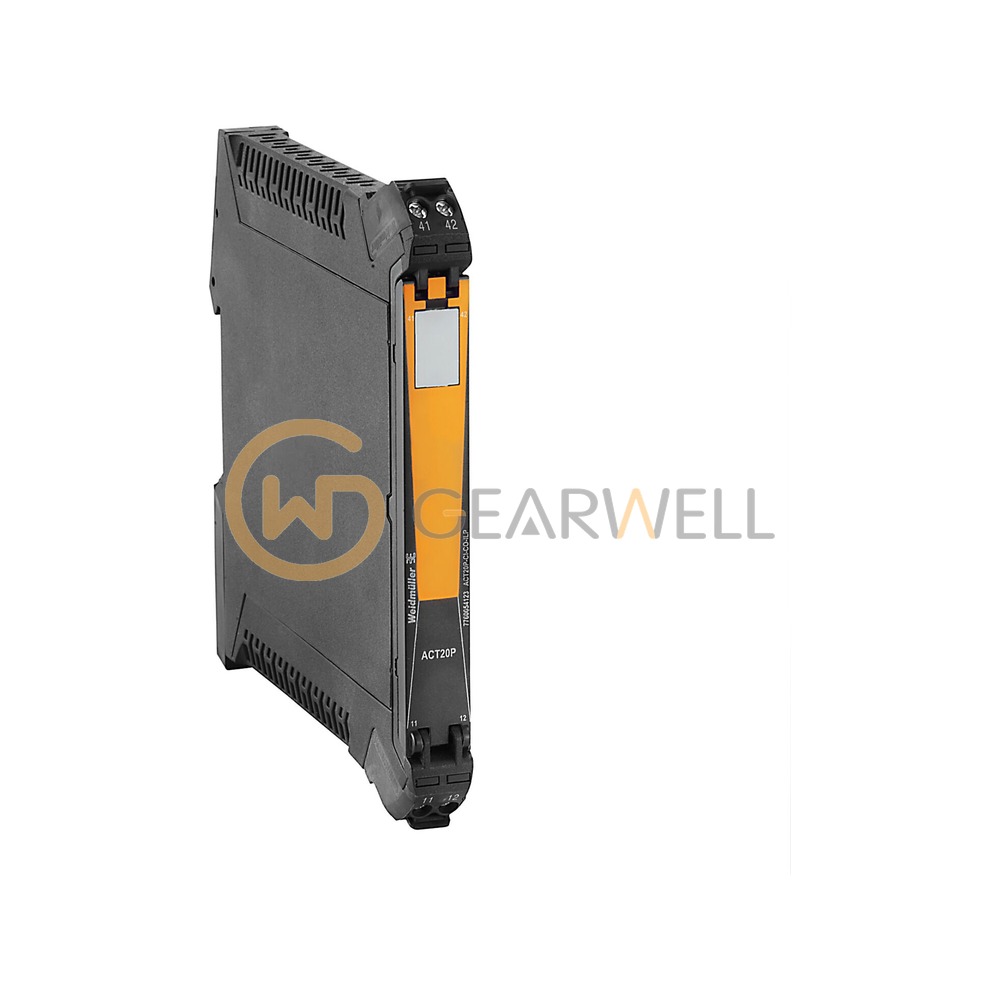

Weidmüller 7760054123 ACT20P-CI-CO-ILP-S

Weidmüller 7760054123 ACT20P-CI-CO-ILP-S

Model
7760054123
GEARWELL SKU
GWP-000012760
Category
PLCs & I/O

Key specifications

Width
12.5 mm
Accuracy
< 0.1 % of end value
Input current
0(4)...20 mA current loop
Output current
0…20 / 4…20 (follows input) mA
Supply voltage
Loop powered, via 4…20 mA input
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Technical reference

Product nameWeidmüller 7760054123 ACT20P-CI-CO-ILP-S
BrandWeidmüller
Model7760054123
CategoryPLCs & I/O
Width12.5 mm
Accuracy< 0.1 % of end value
Input current0(4)...20 mA current loop
Output current0…20 / 4…20 (follows input) mA
Supply voltageLoop powered, via 4…20 mA input
Galvanic isolation2-way isolator, 2.5 kV (input / output)
Voltage drop, current input3.8 V
