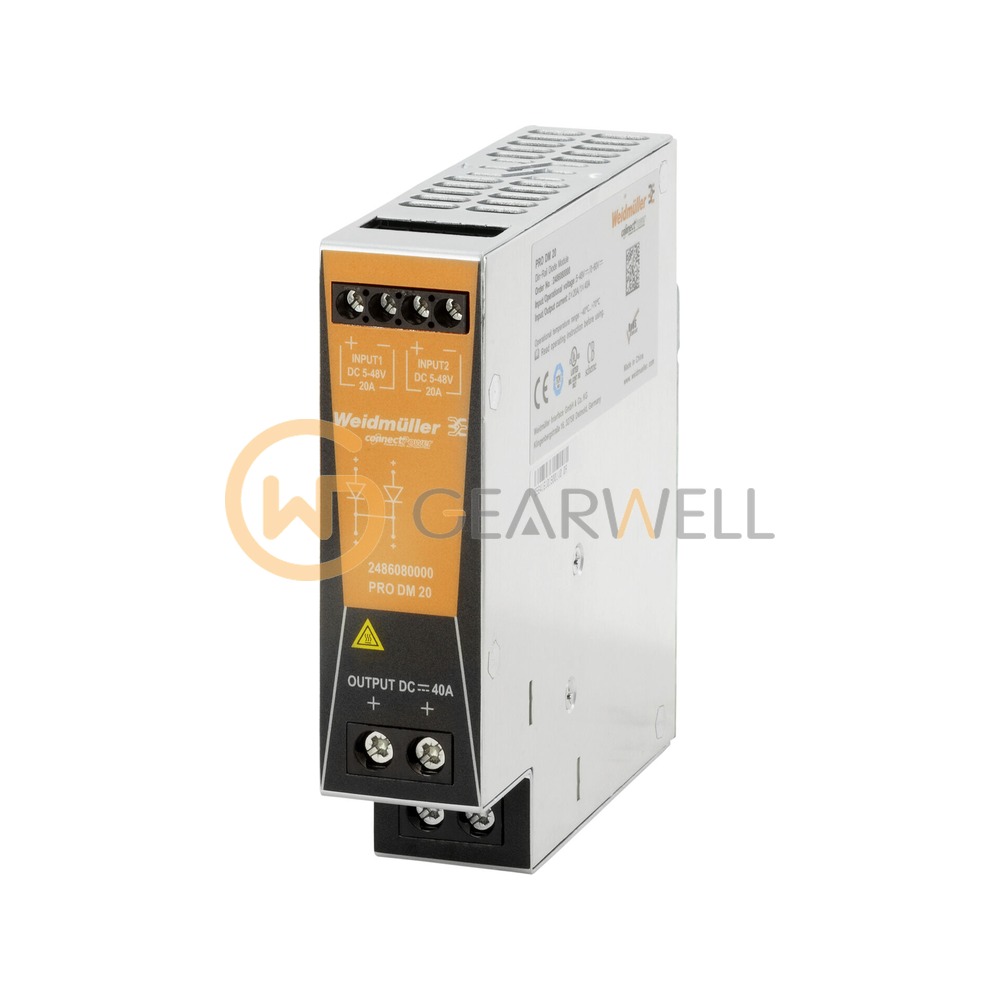

Weidmüller 2486080000 Diode modules PRO DM 20 - Diode module, 24 V DC

Key specifications

Width: 32 mm
Height: 125 mm
Output power: 932 W
Input current: 2 × 24 A (-40 °C ~ +45 °C) 2 × 20 A (+45 °C ~ +60 °C) 2 × 15 A (+70 °C)
Protection degree: IP20

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Weidmüller 2486080000 Diode modules PRO DM 20 - Diode module, 24 V DC
Brand	Weidmüller
Model	2486080000
Category	Power Supplies
Width	32 mm
Height	125 mm
Output power	932 W
Input current	2 × 24 A (-40 °C ~ +45 °C) 2 × 20 A (+45 °C ~ +60 °C) 2 × 15 A (+70 °C)
Protection degree	IP20
Output current, max.	40 A
Rated input voltage	24 V DC
DC input voltage range	0...60 V DC
