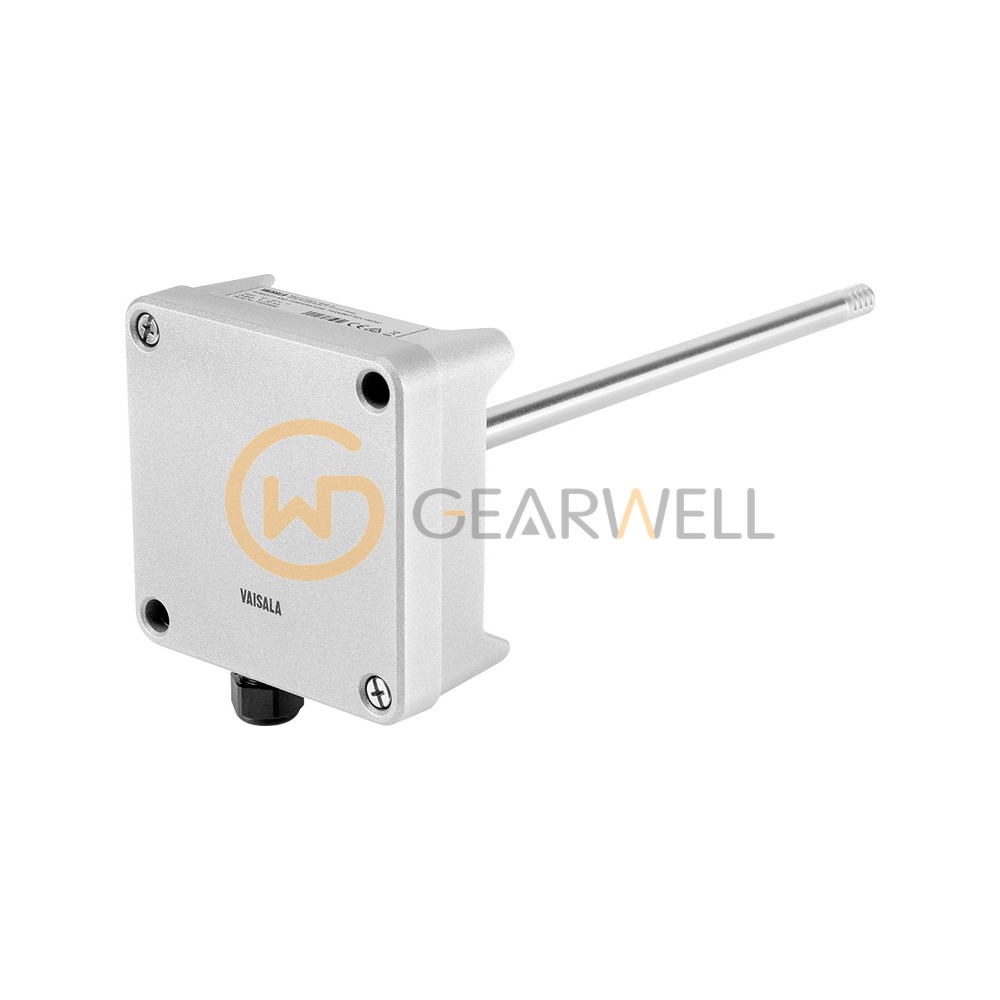

VAISALA TMD62 HMD60 Duct Temperature Transmitter
- Brand
- VAISALA
- Model
- TMD62
- GEARWELL SKU
- GWP-000017026
- Category
- Pressure, Flow & Temperature
Key specifications
- Output
- 1 x 4...20 mA, loop powered, default scaling -20...+80 °C
- Housing
- IP66 cast aluminium, stainless steel probe
- Configuration
- USB service cable with Vaisala Insight PC software
- Supply voltage
- 10...35 (RL=0 Ω) / 20...35 (RL=600 Ω) VDC
- Temperature sensor
- Pt1000 RTD, Class F 0.1 IEC 60751
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | VAISALA TMD62 HMD60 Duct Temperature Transmitter |
|---|---|
| Brand | VAISALA |
| Model | TMD62 |
| Category | Pressure, Flow & Temperature |
| Output | 1 x 4...20 mA, loop powered, default scaling -20...+80 °C |
| Housing | IP66 cast aluminium, stainless steel probe |
| Configuration | USB service cable with Vaisala Insight PC software |
| Supply voltage | 10...35 (RL=0 Ω) / 20...35 (RL=600 Ω) VDC |
| Temperature sensor | Pt1000 RTD, Class F 0.1 IEC 60751 |
| Operating temperature | -40...+80 °C |
| Temperature accuracy at +20 °C | ±0.1 °C |
