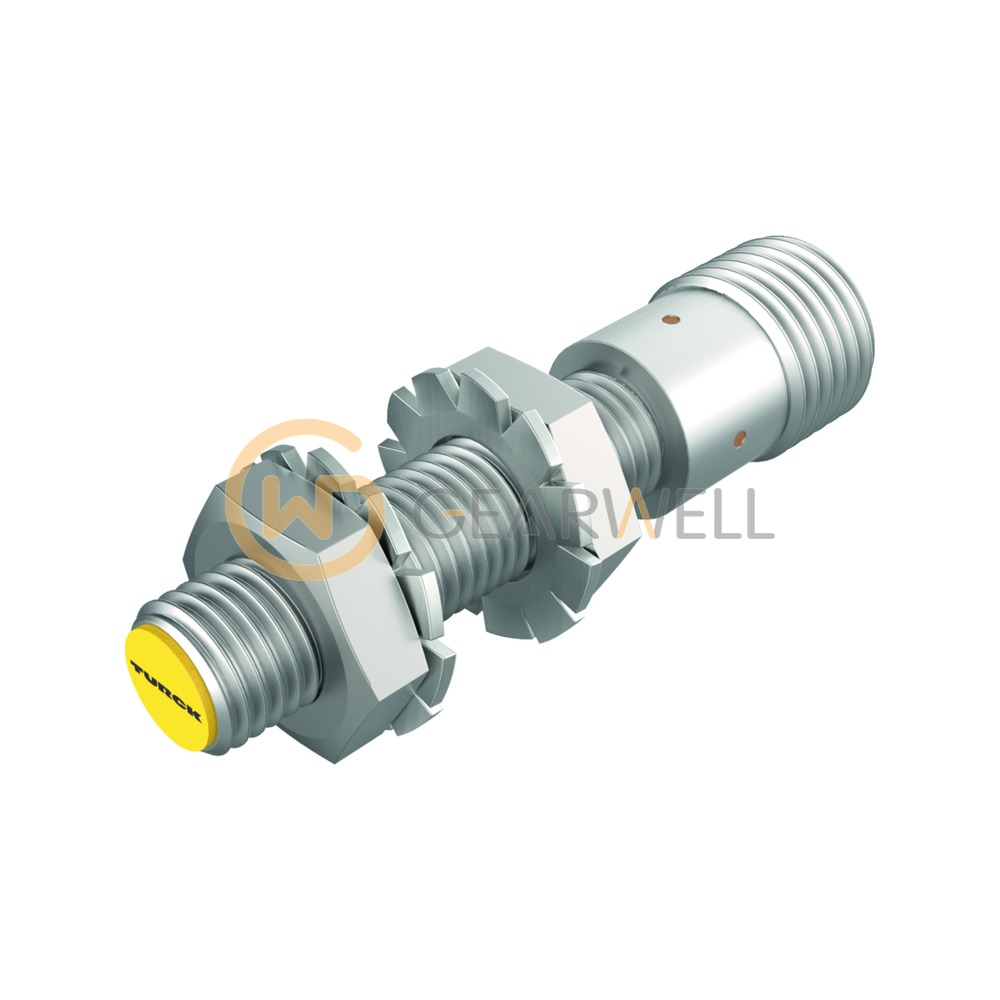

Turck BI2-EG08-VN6X-H1341 M8 Inductive Proximity Sensor
- Brand
- TURCK
- Model
- BI2-EG08-VN6X-H1341
- GEARWELL SKU
- GWP-000012137
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- Threaded barrel M8 x 1, stainless steel 1.4305 (AISI 303)
- Ident no.
- 4602521
- Output function
- 4-wire, complementary contact, NPN
- Protection class
- IP67
- Operating voltage
- 10...30 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Turck BI2-EG08-VN6X-H1341 M8 Inductive Proximity Sensor |
|---|---|
| Brand | TURCK |
| Model | BI2-EG08-VN6X-H1341 |
| Category | Proximity & Photoelectric Sensors |
| Housing | Threaded barrel M8 x 1, stainless steel 1.4305 (AISI 303) |
| Ident no. | 4602521 |
| Output function | 4-wire, complementary contact, NPN |
| Protection class | IP67 |
| Operating voltage | 10...30 VDC |
| Ambient temperature | -25...+70 °C |
| Switching frequency | 2 kHz |
| Electrical connection | Connector M12 x 1, 4-pin |
| Rated switching distance | 2 mm |
| DC rated operational current | <= 150 mA |
