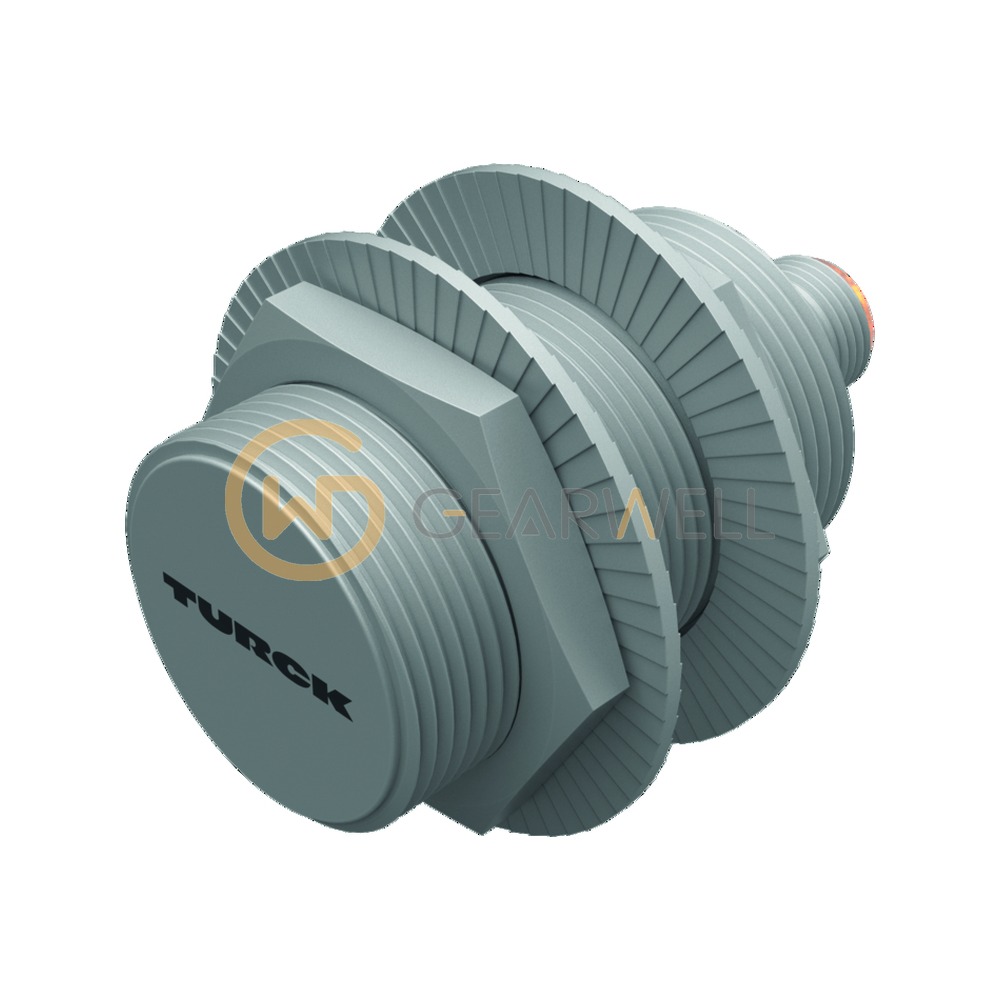

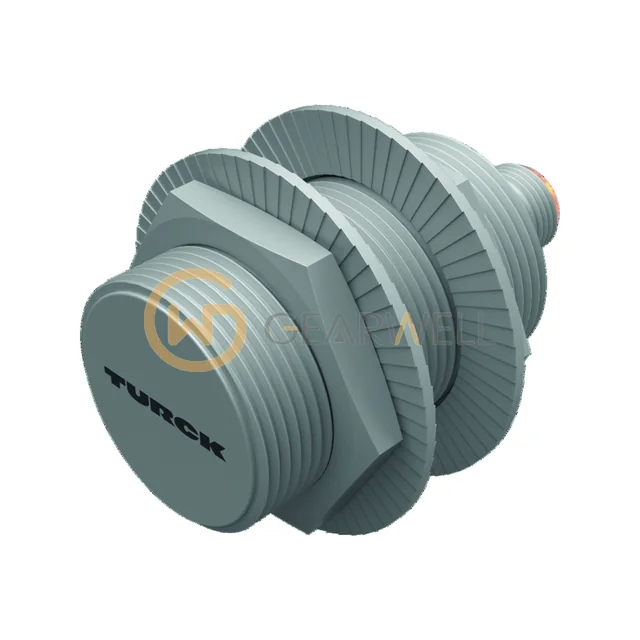

Turck BI15U-MT30-AP6X-H1141 uprox+ Inductive Proximity Sensor
- Brand
- TURCK
- Model
- BI15U-MT30-AP6X-H1141
- GEARWELL SKU
- GWP-000009730
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Housing
- Threaded barrel M30 x 1.5, brass, PTFE-coated
- Mounting
- Flush
- Output function
- 3-wire, NO contact, PNP
- Protection class
- IP68
- Operating voltage
- 10...30 VDC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Turck BI15U-MT30-AP6X-H1141 uprox+ Inductive Proximity Sensor |
|---|---|
| Brand | TURCK |
| Model | BI15U-MT30-AP6X-H1141 |
| Category | Proximity & Photoelectric Sensors |
| Housing | Threaded barrel M30 x 1.5, brass, PTFE-coated |
| Mounting | Flush |
| Output function | 3-wire, NO contact, PNP |
| Protection class | IP68 |
| Operating voltage | 10...30 VDC |
| Switching frequency | 1 kHz |
| Electrical connection | Connector, M12 x 1 |
| Rated switching distance | 15 mm |
