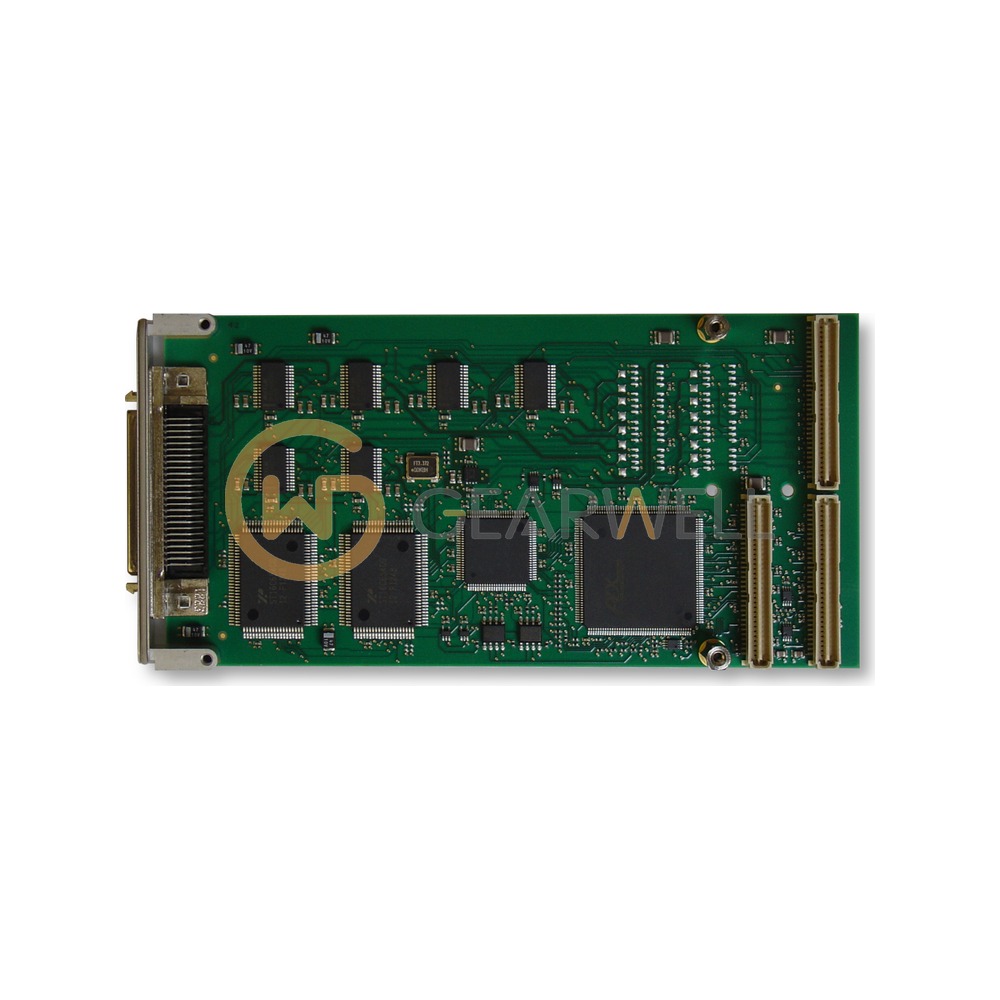

TEWS Technologies TPMC866-11 8 Channel RS422 Serial PMC Module
- Brand
- TEWS Technologies
- Model
- TPMC866-11
- GEARWELL SKU
- GWP-000015021
- Category
- Industrial Communication
Key specifications
- FIFO
- 64 byte transmit / 64 byte receive per channel
- Status
- discontinued, last-time-buy 31/12/2025
- Weight
- 76 g
- Channels
- 8 asynchronous serial, RS422
- Code note
- TPMC866-11 is the non-R code of the RS422 variant (user manual file TPMC866-10_-11_UM)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | TEWS Technologies TPMC866-11 8 Channel RS422 Serial PMC Module |
|---|---|
| Brand | TEWS Technologies |
| Model | TPMC866-11 |
| Category | Industrial Communication |
| FIFO | 64 byte transmit / 64 byte receive per channel |
| Status | discontinued, last-time-buy 31/12/2025 |
| Weight | 76 g |
| Channels | 8 asynchronous serial, RS422 |
| Code note | TPMC866-11 is the non-R code of the RS422 variant (user manual file TPMC866-10_-11_UM) |
| Bus interface | PMC single size, PCI Rev. 2.2, 33 MHz / 32 bit |
| I/O interface | HD50 female (SCSI-2 type) front, P14 rear I/O |
| Maximum transfer rate | 460.8 kbaud per channel |
| Operating temperature | 0 to +70 °C (-ET versions -40 to +85 °C) |
| Current order code (RoHS version) | TPMC866-11R |
