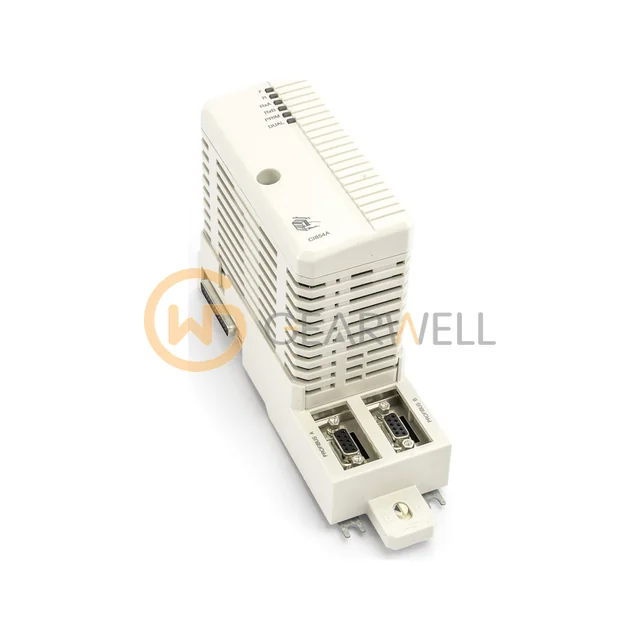

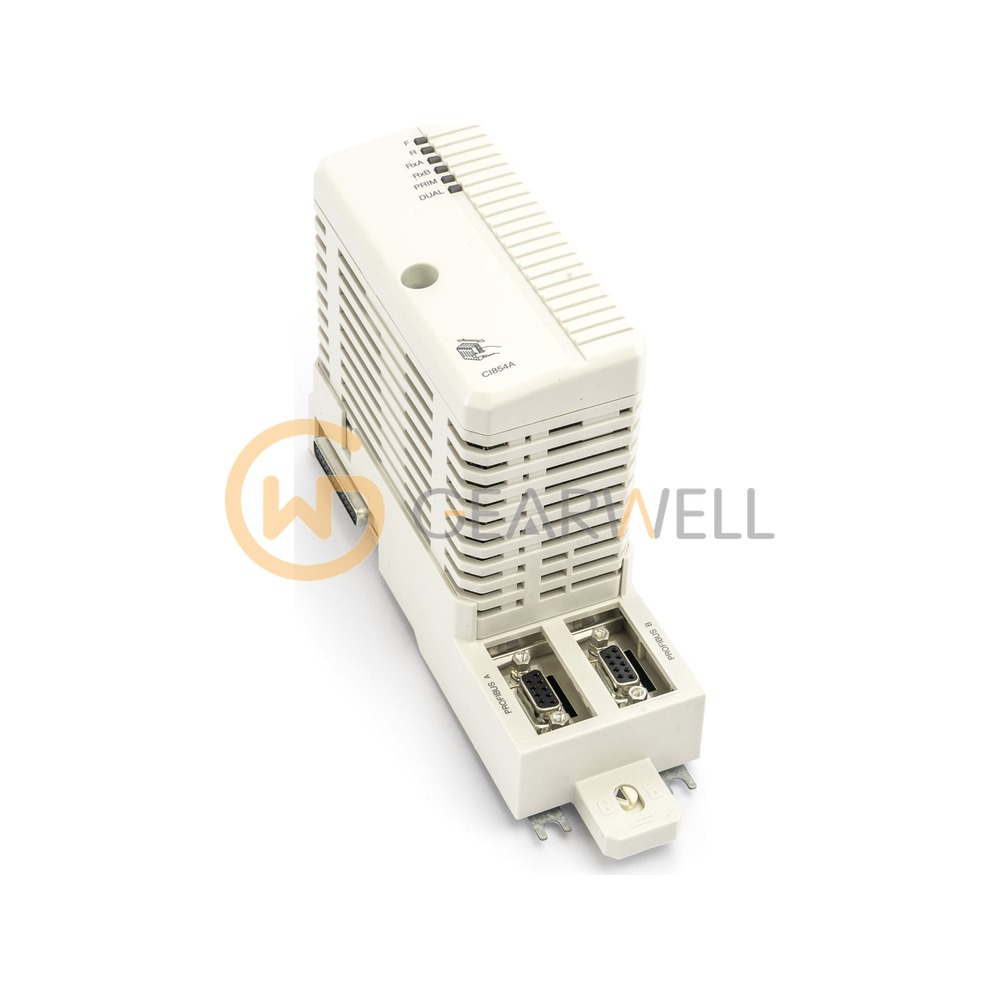

ABB CI854AK01 AC 800M PROFIBUS DP-V1 interface kit (CI854A + TP854)
- Brand
- ABB
- Model
- CI854AK01
- GEARWELL SKU
- GWP-000014439
- Category
- Industrial Communication
Key specifications
- Protocol
- PROFIBUS DP (DP-V1 master)
- Connectors
- Two DB9 female on TP854 (line redundancy)
- Package weight
- 700 g
- Power dissipation
- 4.6 typical W
- Protection rating
- IP20
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The ABB CI854AK01 is a package of the CI854A PROFIBUS DP-V1 master interface (article 3BSE030220R1) with its TP854 baseplate for the AC 800M CEX bus. It has two DB9 female connectors for redundant PROFIBUS lines, runs at 9.6 kbit/s to 12 Mbit/s, supports PROFIBUS DP master redundancy and hot swap, and up to 12 can be fitted per controller. Current consumption is 190 mA typical from the CEX bus 24 V DC and the package weighs 700 g.
Technical reference
| Product name | ABB CI854AK01 AC 800M PROFIBUS DP-V1 interface kit (CI854A + TP854) |
|---|---|
| Brand | ABB |
| Model | CI854AK01 |
| Category | Industrial Communication |
| Protocol | PROFIBUS DP (DP-V1 master) |
| Connectors | Two DB9 female on TP854 (line redundancy) |
| Package weight | 700 g |
| Power dissipation | 4.6 typical W |
| Protection rating | IP20 |
| Communication speed | 9.6 kbit/s to 12 Mbit/s |
| Dimensions (W x H x D) | 59 x 185 x 127.5 mm |
| Current consumption (CEX-Bus 24 V DC) | 190 typical (240 max) mA |
