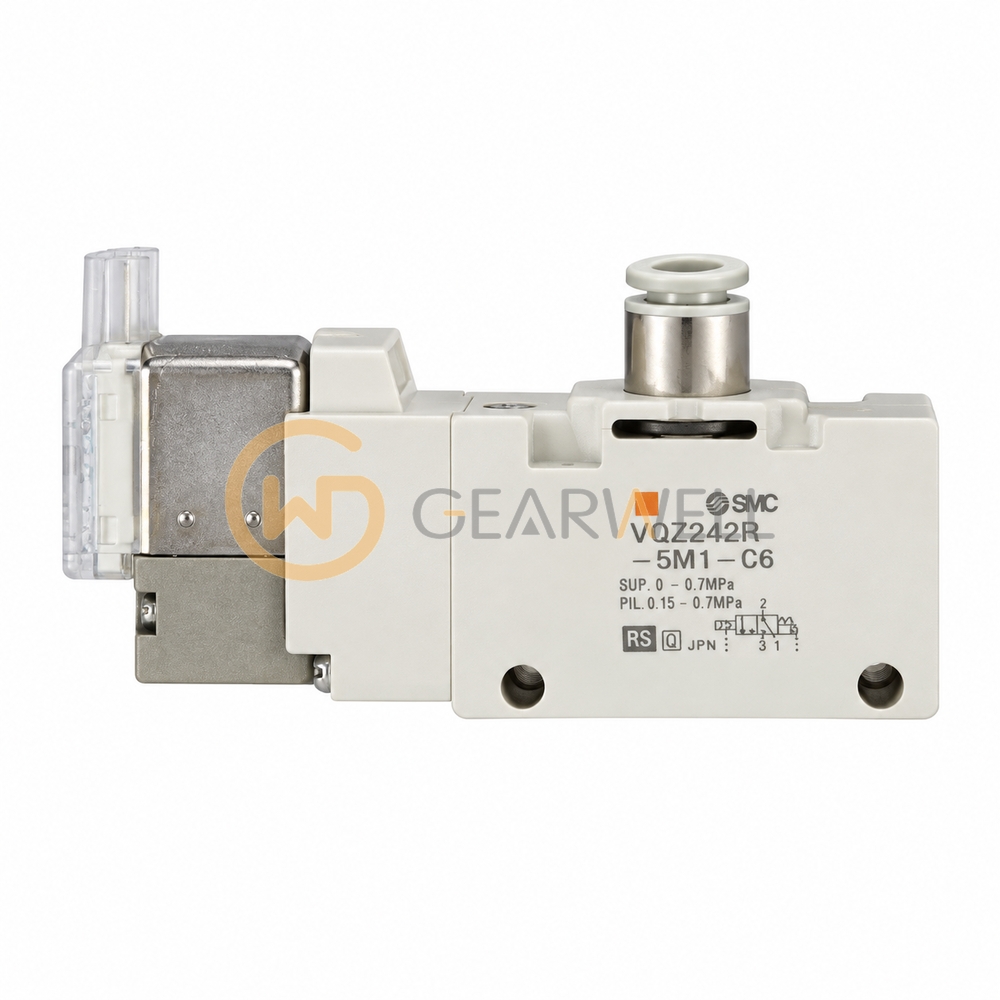

SMC VQZ242R-5M1-C6 Pneumatic Solenoid Valve
- Brand
- SMC
- Model
- VQZ242R-5M1-C6
- GEARWELL SKU
- GWP-000004523
- Category
- Valves & Manifolds
Key specifications
- Model references
- VQZ242R-5M1-C6
- Condition
- Condition and availability confirmed with quotation
- Quotation
- Contact Gearwell for quotation. Confirm the exact model, condition, configuration and availability; no fixed price or stock quantity is published.
- Product type
- Pneumatic Solenoid Valve
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC VQZ242R-5M1-C6 is a VQZ200 series 3-port solenoid valve, body ported, 15 mm wide, normally open with a rubber seal and an external pilot. It has a 24 VDC coil with an M-type plug connector with lead wire and light/surge voltage suppressor, a non-locking push manual override and a 6 mm One-touch fitting on the 2(A) port. With the external pilot it handles operating pressures from –100 kPa to 0.7 MPa, with 0.15 to 0.7 MPa on the pilot. Flow from P to A is C 1.6 dm3/(s·bar) (Cv 0.40) and the standard 0.35 W coil responds in 22 ms or less.
Technical reference
| Product name | SMC VQZ242R-5M1-C6 Pneumatic Solenoid Valve |
|---|---|
| Brand | SMC |
| Model | VQZ242R-5M1-C6 |
| Category | Valves & Manifolds |
| Model references | VQZ242R-5M1-C6 |
| Condition | Condition and availability confirmed with quotation |
| Quotation | Contact Gearwell for quotation. Confirm the exact model, condition, configuration and availability; no fixed price or stock quantity is published. |
| Product type | Pneumatic Solenoid Valve |
