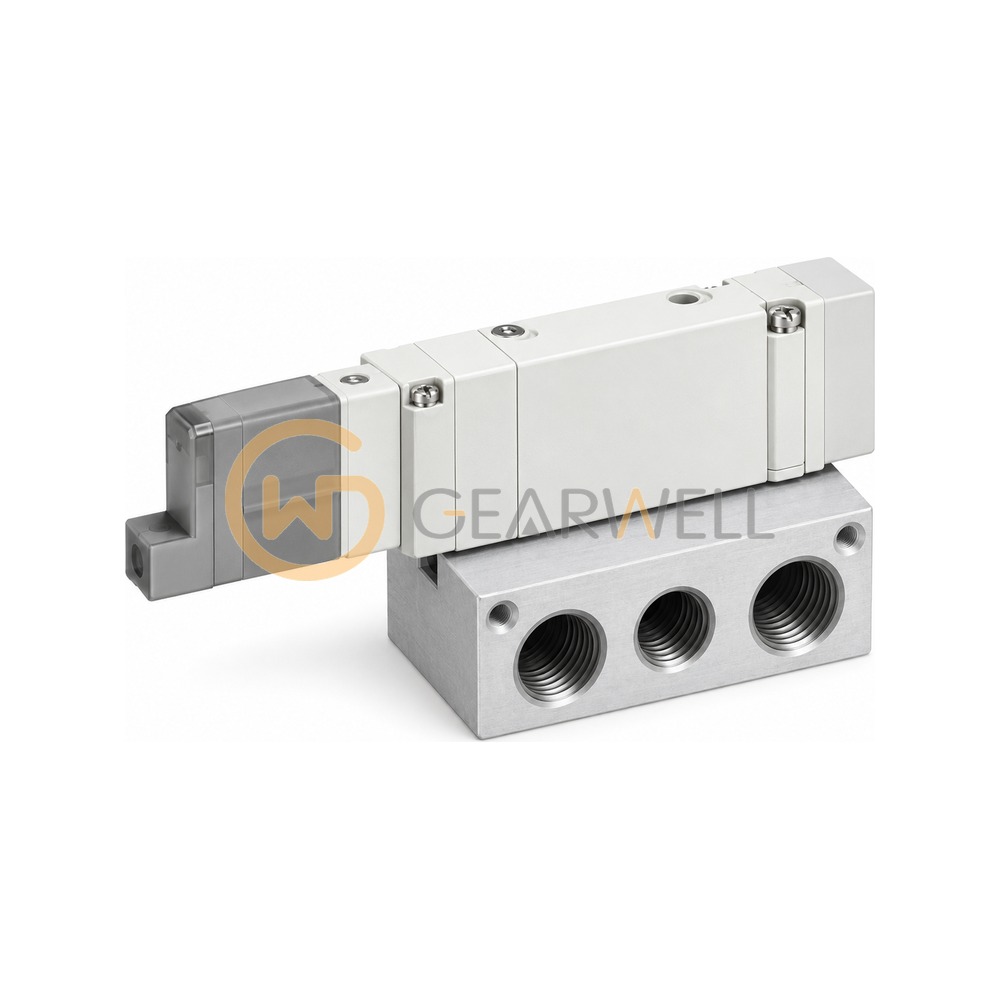

SMC SX3140-5NL0Z-Q SX3000 Series 5-Port Solenoid Valve
- Brand
- SMC
- Model
- SX3140-5NL0Z-Q
- GEARWELL SKU
- GWP-000015222
- Category
- Valves & Manifolds
Key specifications
- Series
- SX3000 (code 3)
- Pilot Type
- Internal Pilot
- Code suffix "0"
- as collected; not listed in the official model-number table (official code SX3140-5NLZ-Q has no "0")
- Rated Voltage
- 24 VDC (code 5)
- Electrical Entry
- L Plug Connector With Lead Wire Length 300 mm (code L)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC SX3140-5NL0Z-Q SX3000 Series 5-Port Solenoid Valve |
|---|---|
| Brand | SMC |
| Model | SX3140-5NL0Z-Q |
| Category | Valves & Manifolds |
| Series | SX3000 (code 3) |
| Pilot Type | Internal Pilot |
| Code suffix "0" | as collected; not listed in the official model-number table (official code SX3140-5NLZ-Q has no "0") |
| Rated Voltage | 24 VDC (code 5) |
| Electrical Entry | L Plug Connector With Lead Wire Length 300 mm (code L) |
| Production status | Discontinued since 12/2014, replacement series:SY3000/5000/7000* |
| Type Of Actuation | 2 Position Single (code 1) |
| Common Specifications | Negative Common (code N) |
| Light/Surge Voltage Suppressor | With Light/Surge Voltage Suppressor (code Z) |
