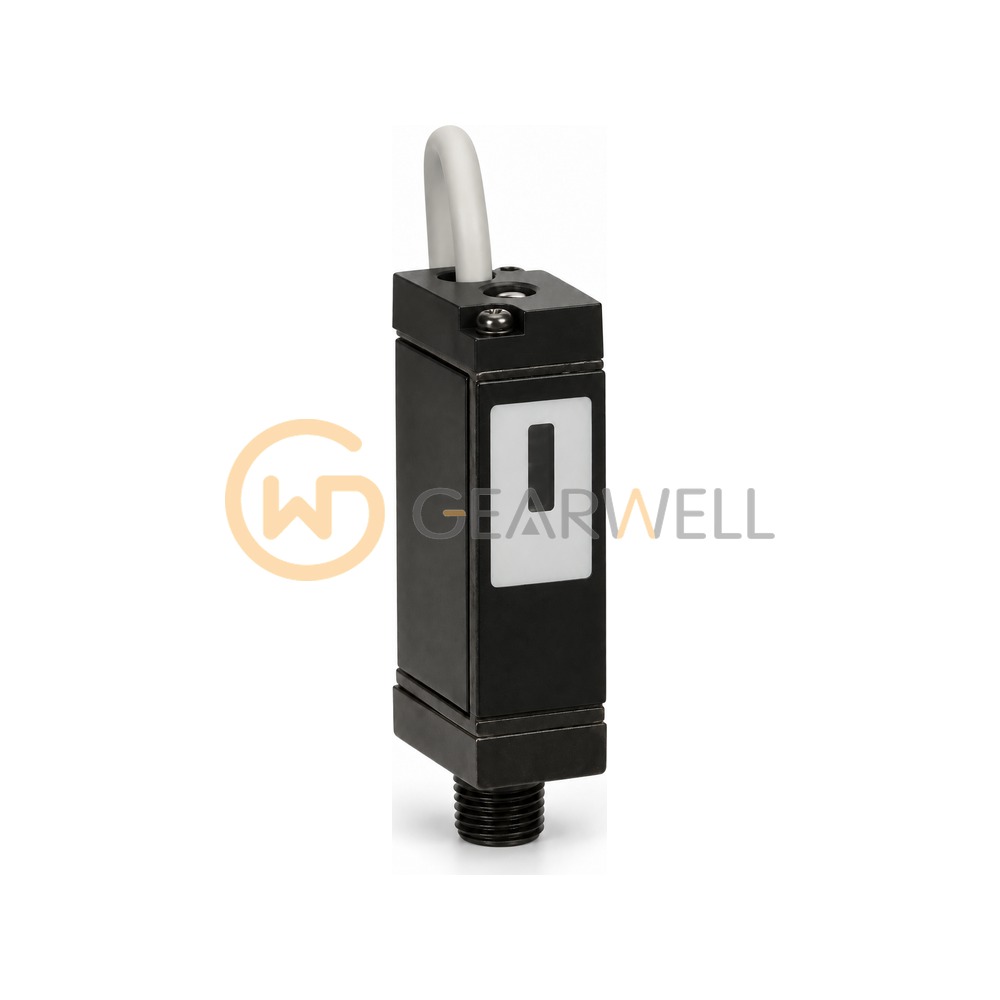

SMC IS1000-01S-X215 IS1000 Series Pressure Switch
- Brand
- SMC
- Model
- IS1000-01S-X215
- GEARWELL SKU
- GWP-000015218
- Category
- Pressure, Flow & Temperature
Key specifications
- Seal
- With seal (code S)
- Weight
- 74 g
- Contacts
- 1a, reed switch
- Port size
- R 1/8 (code 01)
- Option -X215
- Lead wire length 3 m; regulating pressure range 0.1 to 0.6 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC IS1000-01S-X215 IS1000 Series Pressure Switch |
|---|---|
| Brand | SMC |
| Model | IS1000-01S-X215 |
| Category | Pressure, Flow & Temperature |
| Seal | With seal (code S) |
| Weight | 74 g |
| Contacts | 1a, reed switch |
| Port size | R 1/8 (code 01) |
| Option -X215 | Lead wire length 3 m; regulating pressure range 0.1 to 0.6 MPa |
| Proof pressure | 1.0 MPa |
| Max. operating pressure | 0.7 MPa |
| Ambient and fluid temperature | -5 to 60 (no freezing) °C |
