SMC IR1000-01BG Precision Regulator
- Brand
- SMC
- Model
- IR1000-01BG
- GEARWELL SKU
- GWP-000003173
- Category
- Industrial Automation Parts
Key specifications
- Body Size
- IR1000
- Bore Size
- 1/8
- Thread Type
- Rc
- Product description
- IR1000/2000/3000 Series Precision Regulator
- Regulating Pressure Range
- IR1000/2000:0.005 To 0.2 MPa;IR3000:0.01 To 0.2 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

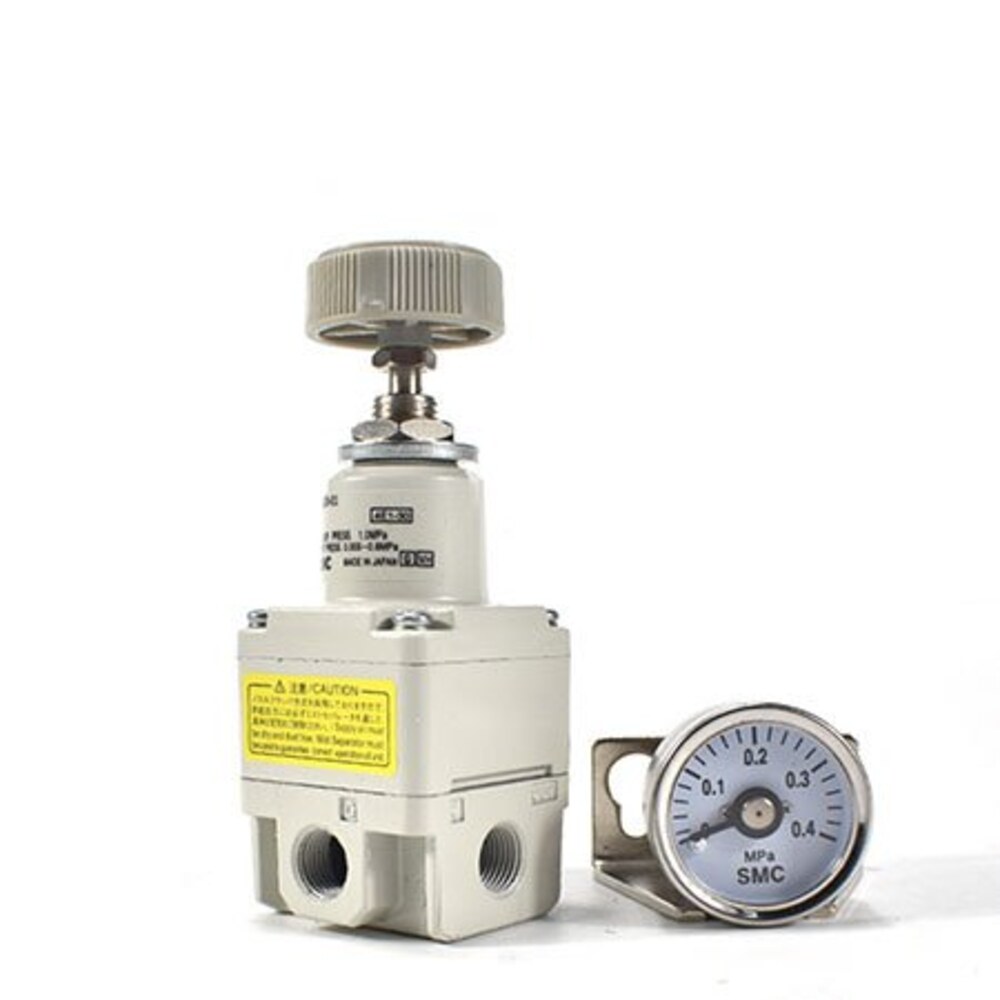

The SMC IR1000-01BG is an IR1000 series precision regulator, basic knob-set type, with a set pressure range of 0.005 to 0.2 MPa and Rc 1/8 ports. It comes with a bracket and a pressure gauge, both shipped loose. The maximum supply pressure is 1.0 MPa, sensitivity is within 0.2% of full span and repeatability within ±0.5% of full span, with an air consumption of 4.4 L/min (ANR) or less. It has two Rc 1/8 gauge ports, is rated for -5 to 60°C and weighs 0.14 kg.
Technical reference
| Product name | SMC IR1000-01BG Precision Regulator |
|---|---|
| Brand | SMC |
| Model | IR1000-01BG |
| Category | Industrial Automation Parts |
| Body Size | IR1000 |
| Bore Size | 1/8 |
| Thread Type | Rc |
| Product description | IR1000/2000/3000 Series Precision Regulator |
| Regulating Pressure Range | IR1000/2000:0.005 To 0.2 MPa;IR3000:0.01 To 0.2 MPa |
