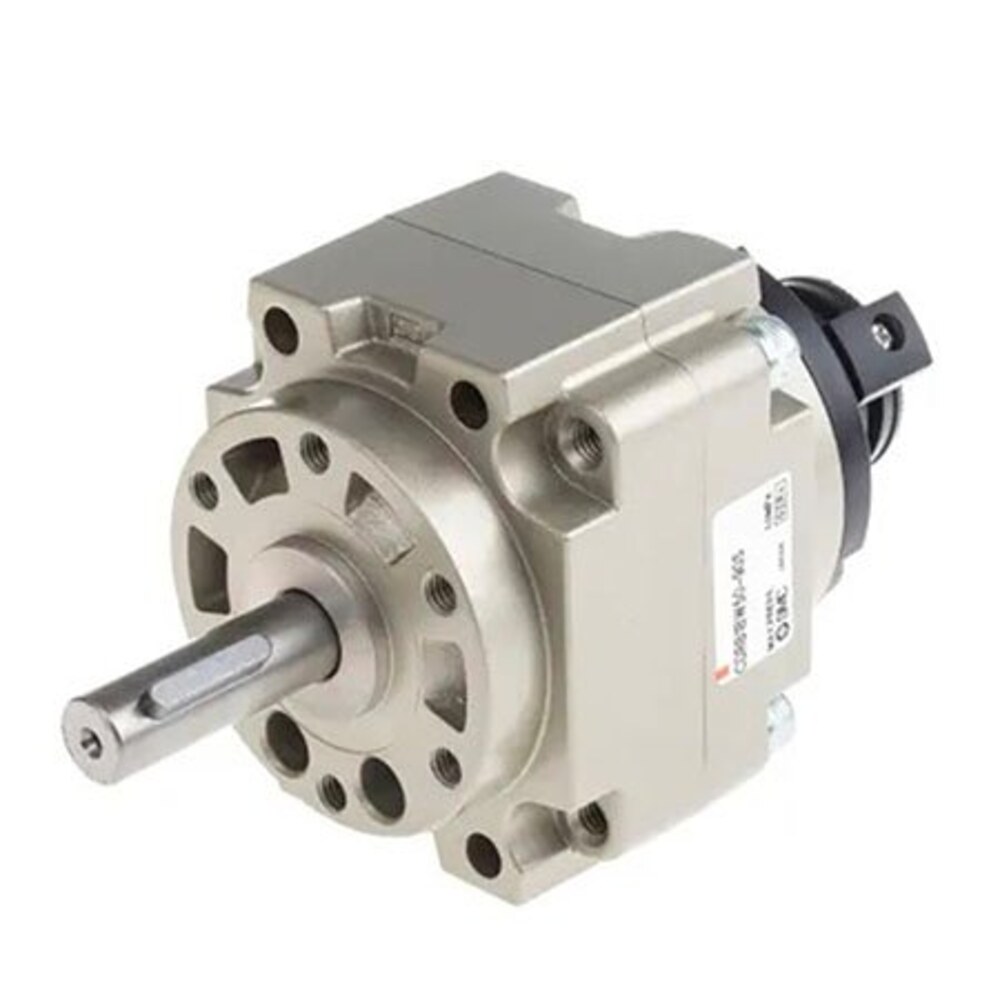

SMC CRB1BW50-90S Rotating Cylinder
- Brand
- SMC
- Model
- CRB1BW50-90S
- GEARWELL SKU
- GWP-000004100
- Category
- Industrial Automation Parts
Key specifications
- Size
- 50
- Auto Switch
- Without Auto Switch
- Mounting Style
- Basic
- Product description
- CRB1 Series Rotary Actuator Vane Type
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC CRB1BW50-90S is a CRB1 series vane-style rotary actuator in size 50 with a single vane and a 90° rotating angle. It has the basic mounting style, a double shaft with a long-shaft key and four chamfers, and side ports with Rc 1/8 threads. It works from 0.15 to 1.0 MPa with a proof pressure of 1.5 MPa, a speed regulation range of 0.1 to 1 s/90° and an allowable kinetic energy of 0.082 J. The bearing-supported shaft takes 245 N radial and 196 N thrust load, and the unit weighs 810 g without auto switches.
Technical reference
| Product name | SMC CRB1BW50-90S Rotating Cylinder |
|---|---|
| Brand | SMC |
| Model | CRB1BW50-90S |
| Category | Industrial Automation Parts |
| Size | 50 |
| Auto Switch | Without Auto Switch |
| Mounting Style | Basic |
| Product description | CRB1 Series Rotary Actuator Vane Type |
