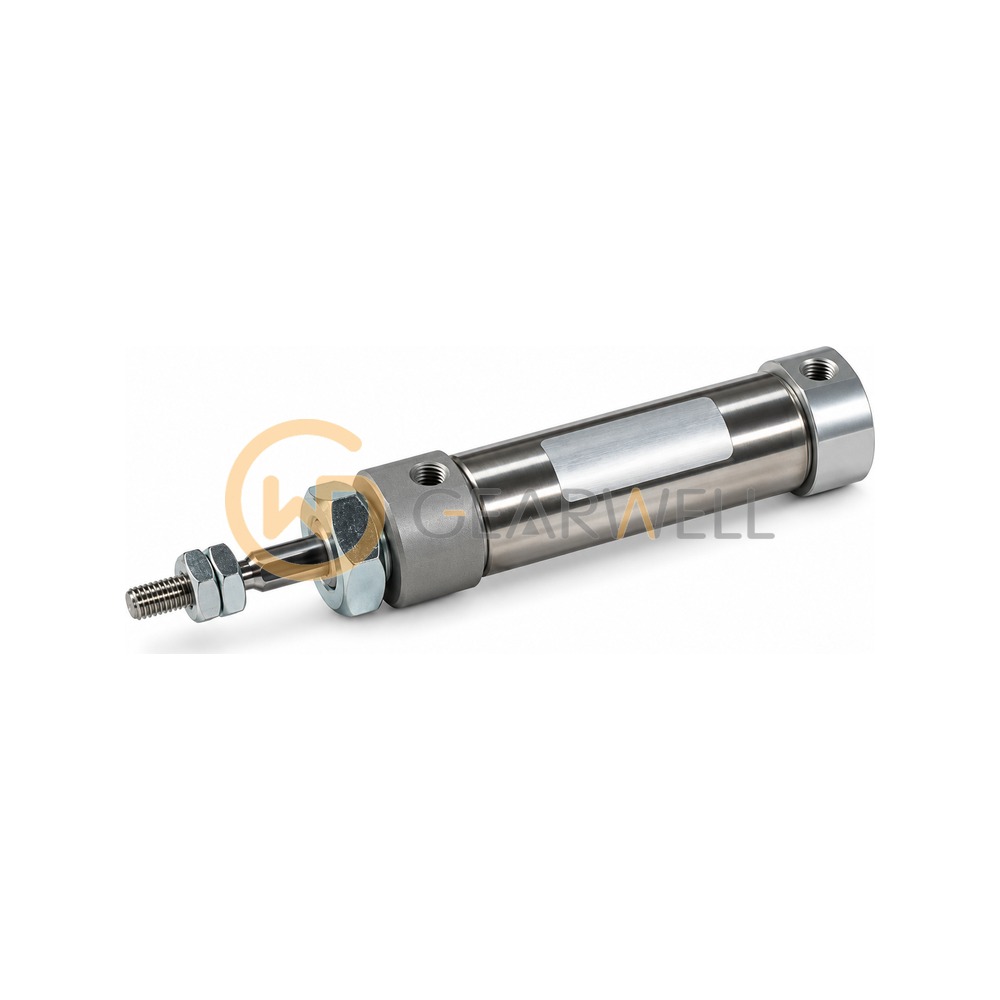

SMC CJ2KB16-30B CJ2K Series Non-rotating Rod Air Cylinder
- Brand
- SMC
- Model
- CJ2KB16-30B
- GEARWELL SKU
- GWP-000015591
- Category
- Cylinders & Actuators
Key specifications
- Bore Size
- Bore Size 16 mm (code 16)
- Auto Switch
- Without auto switch
- Code suffix "B"
- as collected; not listed in the official model-number table for CJ2KB16-30 (no magnet)
- Mounting Style
- Basic Style (code B)
- Cylinder Stroke
- Standard Stroke 30 mm (code 30)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SMC CJ2KB16-30B CJ2K Series Non-rotating Rod Air Cylinder |
|---|---|
| Brand | SMC |
| Model | CJ2KB16-30B |
| Category | Cylinders & Actuators |
| Bore Size | Bore Size 16 mm (code 16) |
| Auto Switch | Without auto switch |
| Code suffix "B" | as collected; not listed in the official model-number table for CJ2KB16-30 (no magnet) |
| Mounting Style | Basic Style (code B) |
| Cylinder Stroke | Standard Stroke 30 mm (code 30) |
| Production status | Discontinued since 9/2013, Replacement Series:CJ2K-Z |
| Head Cover Port Location | Perpendicular To Axis |
| Model string normalization | collected as "Cj2kb16 30 B" |
| With Auto Switch(Built-in Magnet) | Without Auto Switch |
