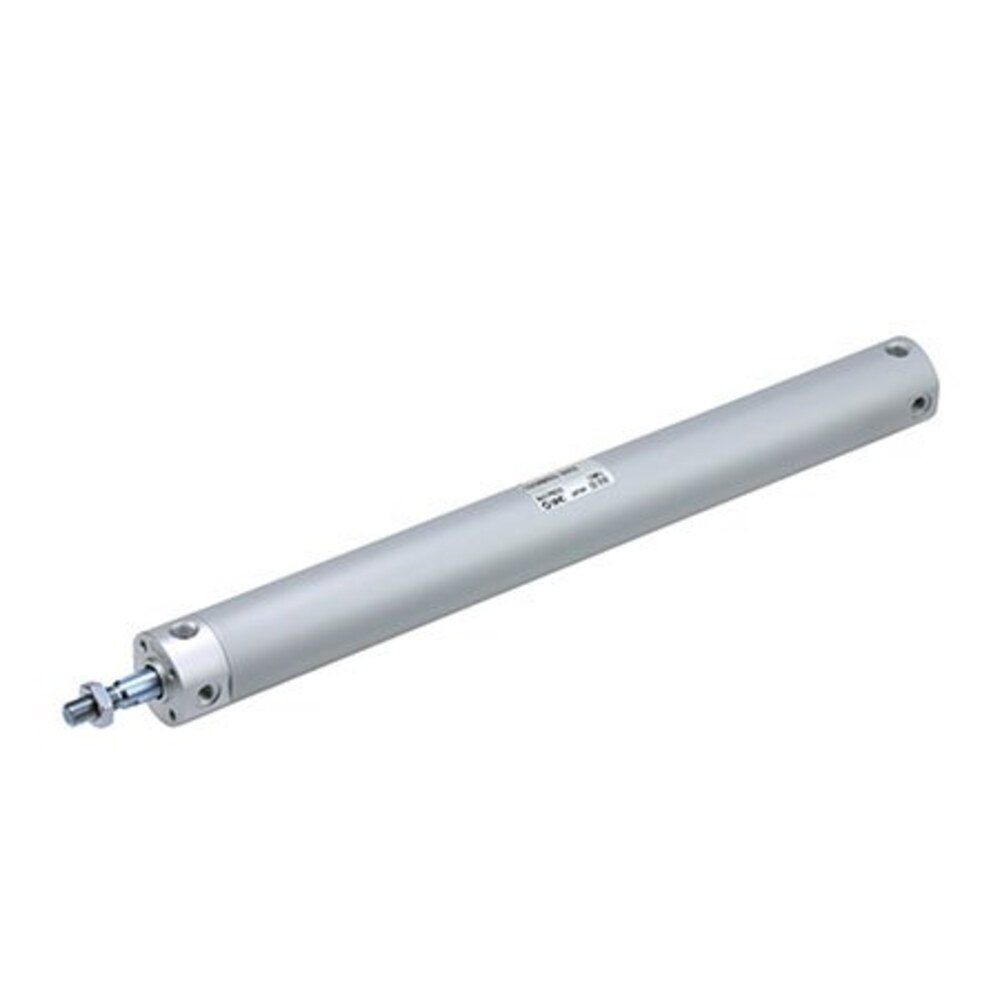

SMC CG1BN50-25Z Air Cylinder
- Brand
- SMC
- Model
- CG1BN50-25Z
- GEARWELL SKU
- GWP-000001336
- Category
- Industrial Automation Parts
Key specifications
- Bore Size
- Bore Size 50 mm
- Auto Switch
- Without Auto Switch
- Mounting Style
- Basic
- Rod And Thread
- Male Rod End
- Cylinder Stroke
- Standard Stroke 25 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC CG1BN50-25Z is a CG1 series round-body air cylinder, double acting with a single rod, in 50 mm bore and 25 mm stroke. It has the basic mounting style, a rubber bumper cushion, a male rod end and Rc 1/4 ports. The working range is 0.05 to 1.0 MPa with a proof pressure of 1.5 MPa, and the piston speed range is 50 to 1000 mm/s. This version has no built-in magnet, so it is not set up for auto switches; it runs without lubrication.
Technical reference
| Product name | SMC CG1BN50-25Z Air Cylinder |
|---|---|
| Brand | SMC |
| Model | CG1BN50-25Z |
| Category | Industrial Automation Parts |
| Bore Size | Bore Size 50 mm |
| Auto Switch | Without Auto Switch |
| Mounting Style | Basic |
| Rod And Thread | Male Rod End |
| Cylinder Stroke | Standard Stroke 25 mm |
| Port Thread Type | Rubber cushion:Rc; Air Cushion:M5X0.8/Rc |
| Product description | CG1-Z Series Air Cylinder:Standard Type, Double Acting, Single Rod |
