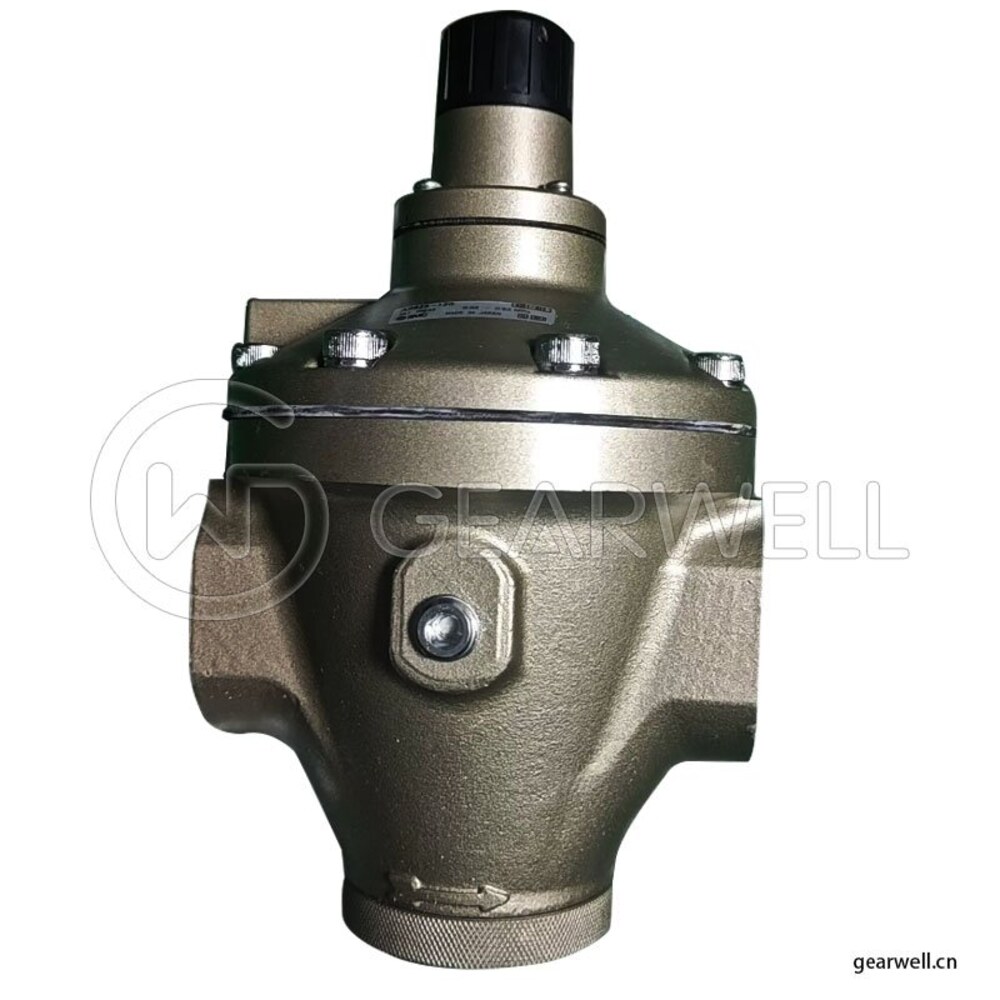

SMC AR825-12G REGULATOR
- Brand
- SMC
- Model
- AR825-12G
- GEARWELL SKU
- GWP-000002281
- Category
- Industrial Automation Parts
Key specifications
- Body Size
- 1 1/2
- Port Size
- 1 1/4
- Thread Type
- Rc
- Product description
- AR425-935 Series Pilot Operated Regulator
- Regulating Pressure Range
- 0.05 to 0.83 MPa
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC AR825-12G is an AR825 pilot operated regulator of the internal pilot relieving type for compressed air, with Rc 1 1/4 ports. The set pressure range is 0.05 to 0.83 MPa with a maximum operating pressure of 1.0 MPa and a proof pressure of 1.5 MPa. It comes with a G46-10-02 pressure gauge (shipped unassembled) for the 1/4 gauge port. The pilot bleeds about 5 L/min (ANR) at maximum pressure, the temperature range is –5 to 60°C, and the regulator weighs 2.5 kg.
Technical reference
| Product name | SMC AR825-12G REGULATOR |
|---|---|
| Brand | SMC |
| Model | AR825-12G |
| Category | Industrial Automation Parts |
| Body Size | 1 1/2 |
| Port Size | 1 1/4 |
| Thread Type | Rc |
| Product description | AR425-935 Series Pilot Operated Regulator |
| Regulating Pressure Range | 0.05 to 0.83 MPa |
