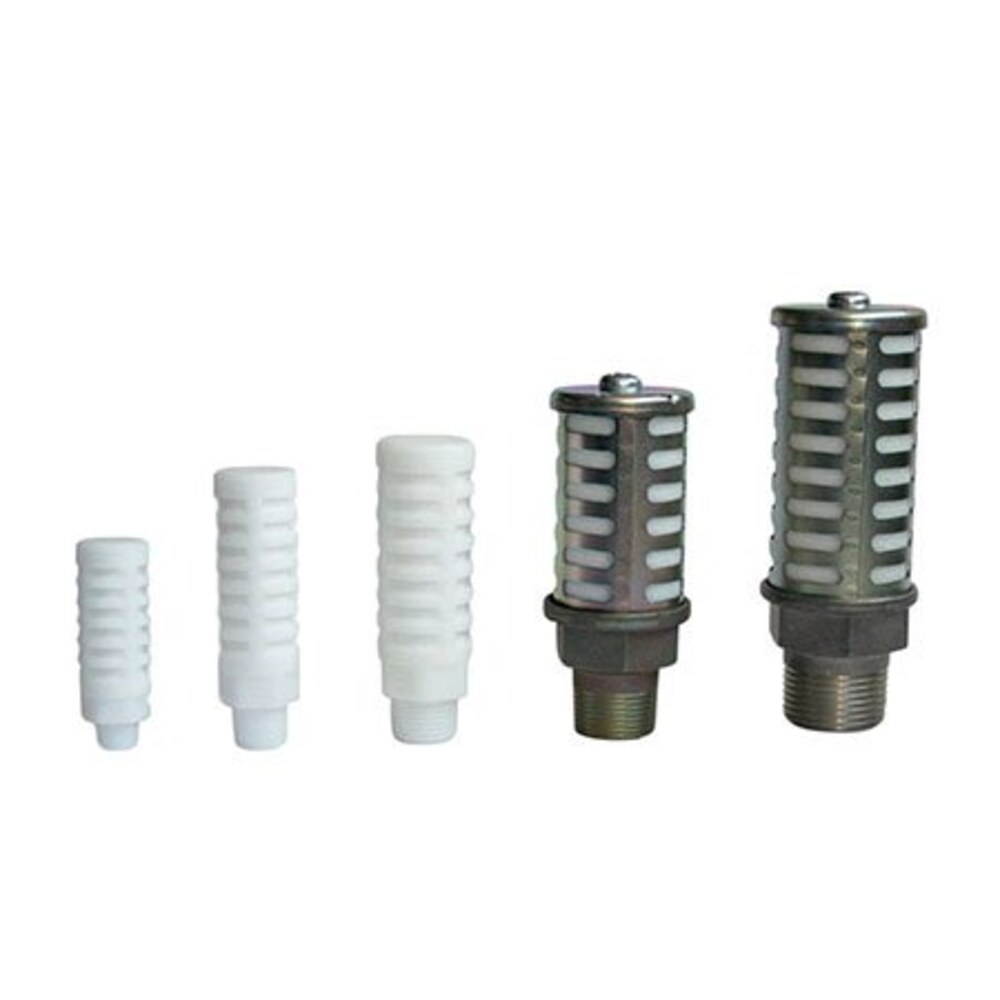

SMC AN500-06 Silencer
- Brand
- SMC
- Model
- AN500-06
- GEARWELL SKU
- GWP-000002960
- Category
- Industrial Automation Parts
Key specifications
- Body Size
- 500
- Bore Size
- 3/4
- Thread Type
- R
- Product description
- AN□00 Series Silencer Metal Body Type
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The SMC AN500-06 is an AN series metal body silencer with an R 3/4 thread for the exhaust of solenoid valves. It reduces noise by 30 dB(A), has an effective area of 160 mm2 and a sonic conductance of 32 dm3/(s·bar), and suits a flow of 12 m3/min (ANR) or less. The maximum operating pressure is 1.0 MPa and the rated temperature is 5 to 60ºC. The body is aluminum alloy with a resin sintered sound absorbing element, and it weighs 165 g.
Technical reference
| Product name | SMC AN500-06 Silencer |
|---|---|
| Brand | SMC |
| Model | AN500-06 |
| Category | Industrial Automation Parts |
| Body Size | 500 |
| Bore Size | 3/4 |
| Thread Type | R |
| Product description | AN□00 Series Silencer Metal Body Type |
