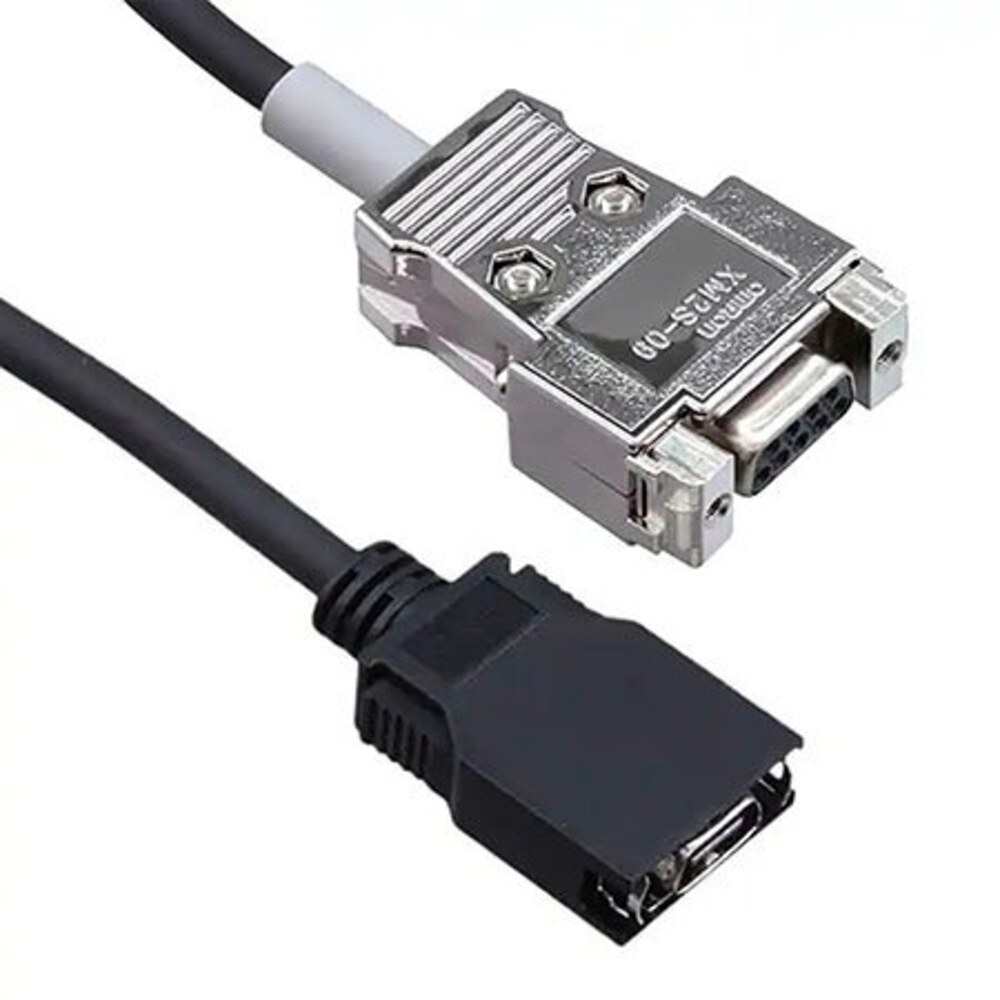

OMRON CS1W-CN118 PLC peripheral-port connecting cable, 0.1 m
- Brand
- OMRON
- Model
- CS1W-CN118
- GEARWELL SKU
- GWP-000000341
- Category
- Industrial Automation Parts
Key specifications
- Controller families
- CS1 / CJ1
- Cable length
- 0.1 m
- Product type
- PLC peripheral-port connecting cable
- Computer port in the connection diagram
- D-sub, 9-pin male (PC port, not the CS1W-CN118 connector)
- Communication modes for CS1/CJ1
- Peripheral bus or Host Link with XW2Z-200S-CV/500S-CV; Host Link with XW2Z-200S-V/500S-V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | OMRON CS1W-CN118 PLC peripheral-port connecting cable, 0.1 m |
|---|---|
| Brand | OMRON |
| Model | CS1W-CN118 |
| Category | Industrial Automation Parts |
| Controller families | CS1 / CJ1 |
| Cable length | 0.1 m |
| Product type | PLC peripheral-port connecting cable |
| Computer port in the connection diagram | D-sub, 9-pin male (PC port, not the CS1W-CN118 connector) |
| Communication modes for CS1/CJ1 | Peripheral bus or Host Link with XW2Z-200S-CV/500S-CV; Host Link with XW2Z-200S-V/500S-V |
| Controller connection | CPU built-in peripheral port |
| Additional Host Link cable options | XW2Z-200S-V (2 m) or XW2Z-500S-V (5 m), used with CS1W-CN118 |
| Computer-side connection | Via a matching XW2Z RS-232C cable to a PC/AT-compatible computer |
| Manufacturer | OMRON |
| Peripheral bus cable options | XW2Z-200S-CV (2 m) or XW2Z-500S-CV (5 m), used with CS1W-CN118 |
