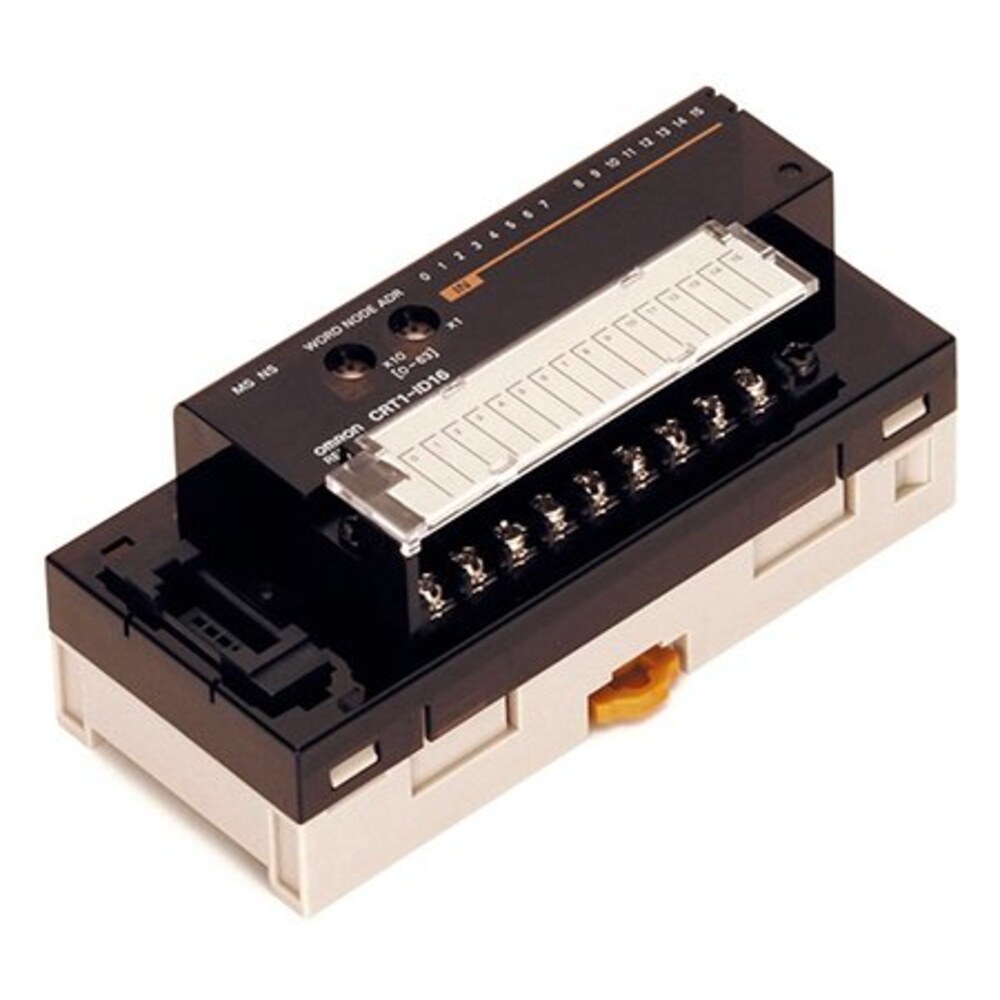

OMRON CRT1-ID16-1 Input Module
- Brand
- OMRON
- Model
- CRT1-ID16-1
- GEARWELL SKU
- GWP-000000346
- Category
- Industrial Automation Parts
Key specifications
- ON voltage
- 15 VDC minimum
- OFF voltage
- 5 VDC maximum
- Product type
- Digital input slave unit
- Input current
- 6.0 mA max. at 24 VDC; 3.0 mA max. at 17 VDC
- Input capacity
- 16 inputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The OMRON CRT1-ID16-1 is a CompoNet Digital I/O Slave Unit with 16 PNP inputs on a 2-tier screw terminal block, with 16 inputs per common. The ON voltage is 15 VDC min. and the OFF voltage 5 VDC max., input current is 6.0 mA max. per input at 24 VDC, and ON and OFF delays are 1.5 ms max. It uses a multi-power supply, drawing 55 mA max. from a 24-VDC communications power supply, mounts on DIN Track, accepts one XWT Expansion Unit and weighs 141 g max. The model is also sold with a DCN-TB4 Terminal Conversion Adapter by adding (-B).
Technical reference
| Product name | OMRON CRT1-ID16-1 Input Module |
|---|---|
| Brand | OMRON |
| Model | CRT1-ID16-1 |
| Category | Industrial Automation Parts |
| ON voltage | 15 VDC minimum |
| OFF voltage | 5 VDC maximum |
| Product type | Digital input slave unit |
| Input current | 6.0 mA max. at 24 VDC; 3.0 mA max. at 17 VDC |
| Input capacity | 16 inputs |
| ON/OFF delay | 1.5 ms maximum |
| Isolation method | Photocoupler |
| Internal I/O common | PNP |
