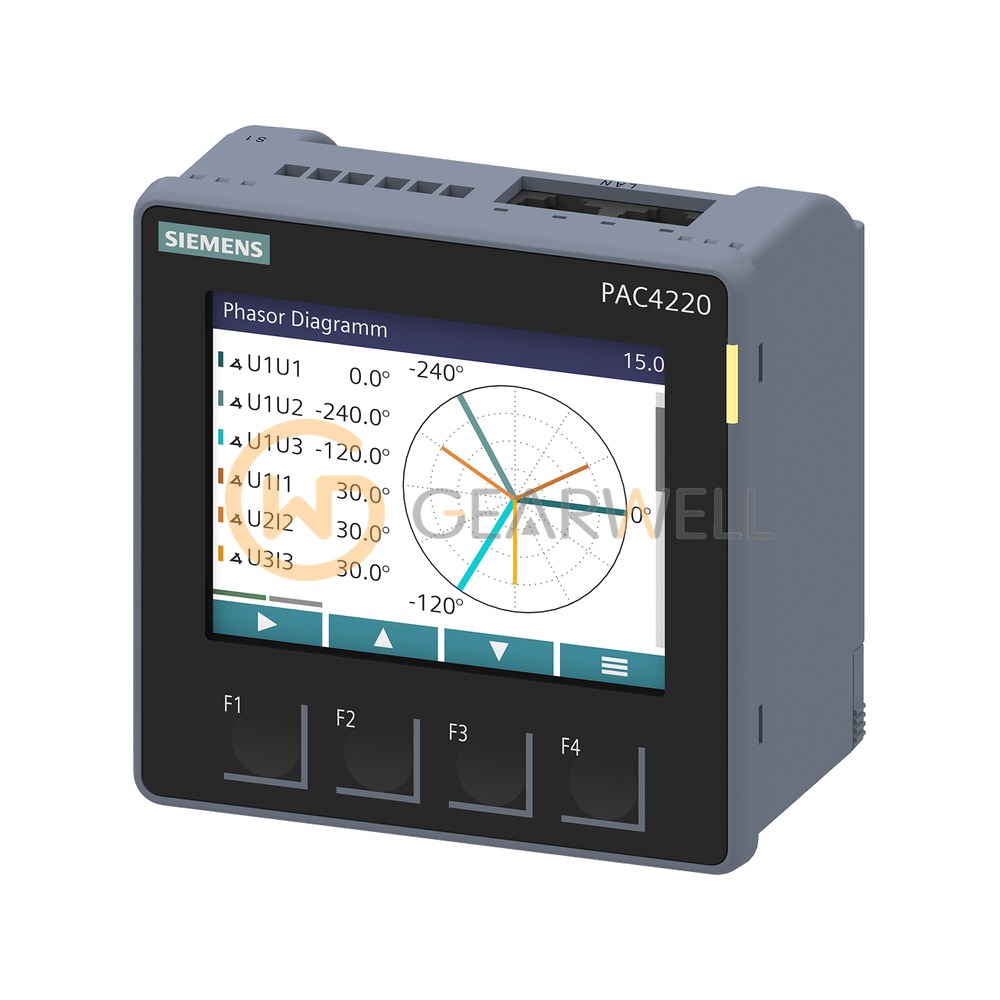

Siemens 7KM4220-0BA01-1EA0 SENTRON PAC4220 Power Monitoring Device
- Brand
- Siemens
- Model
- 7KM4220-0BA01-1EA0
- GEARWELL SKU
- GWP-000016809
- Category
- Test & Measurement
Key specifications
- Phases
- 3
- Display
- Color graphic TFT
- Frequency
- 45-65 Hz
- Harmonics
- Even and odd per phase up to 64th
- Lifecycle
- Active Product
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 7KM4220-0BA01-1EA0 SENTRON PAC4220 Power Monitoring Device |
|---|---|
| Brand | Siemens |
| Model | 7KM4220-0BA01-1EA0 |
| Category | Test & Measurement |
| Phases | 3 |
| Display | Color graphic TFT |
| Frequency | 45-65 Hz |
| Harmonics | Even and odd per phase up to 64th |
| Lifecycle | Active Product |
| Connection | Screw terminals |
| Net weight | 0.345 kg |
| Panel size | 96 x 96 mm |
| Device class | PMD-III (IEC 61557-12) |
| Power supply | 95-250 V AC ±10% / 110-270 V DC ±10% |
| Communication | Modbus TCP |
| Rated voltage | 690/400 V |
| Accuracy class | 0.2 (0.2S to IEC 62053-22) |
| Rated current input | x/1 A or x/5 A |
