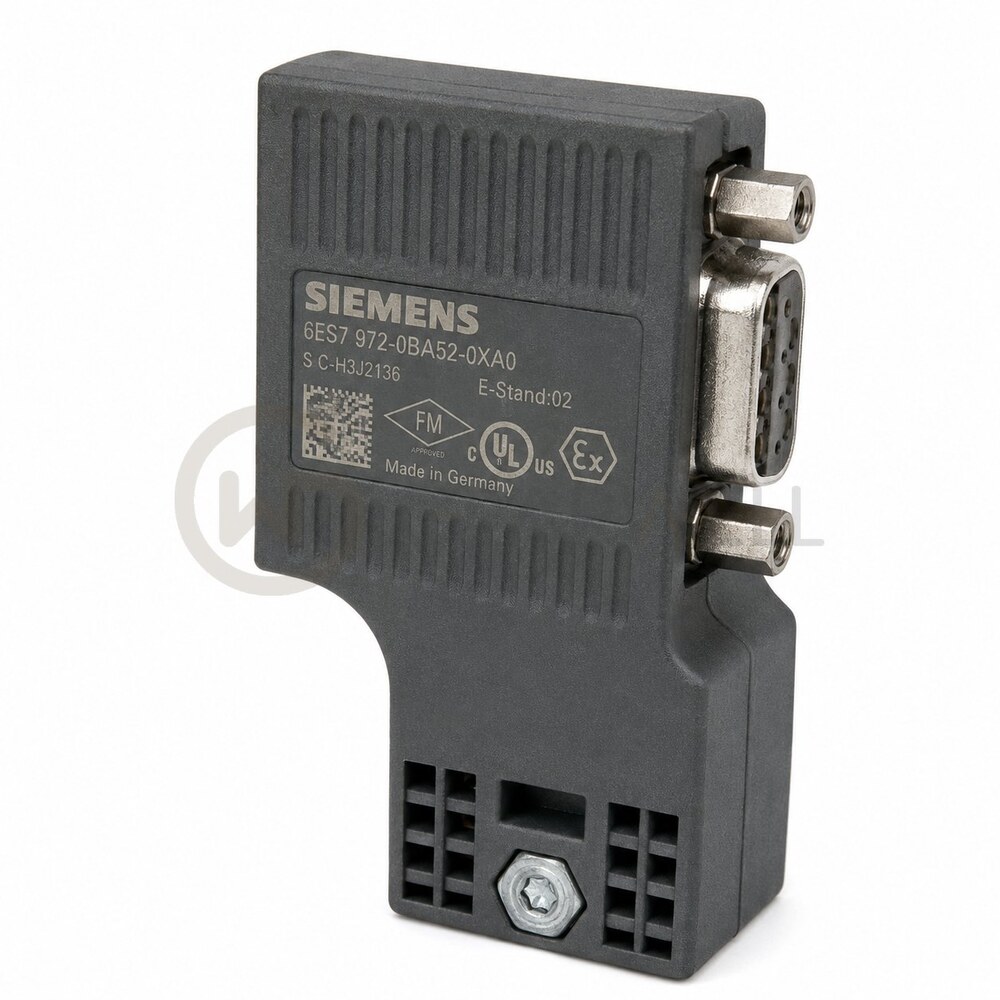

Siemens 6ES7972-0BA52-0XA0 PROFIBUS RS485 90° FastConnect Bus Connector
- Brand
- Siemens
- Model
- 6ES7972-0BA52-0XA0
- GEARWELL SKU
- GWP-000004201
- Category
- Industrial Automation Parts
Key specifications
- PG socket
- No
- Dimensions (W × H × D)
- 15.8 × 59 × 35.6 mm
- Bus termination
- Integrated resistor combination selected by slide switch.
- Cable outlet
- 90°
- Product type
- PROFIBUS RS485 bus connector
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7972-0BA52-0XA0 PROFIBUS RS485 90° FastConnect Bus Connector |
|---|---|
| Brand | Siemens |
| Model | 6ES7972-0BA52-0XA0 |
| Category | Industrial Automation Parts |
| PG socket | No |
| Dimensions (W × H × D) | 15.8 × 59 × 35.6 mm |
| Bus termination | Integrated resistor combination selected by slide switch. |
| Cable outlet | 90° |
| Product type | PROFIBUS RS485 bus connector |
| PROFIBUS transfer rate | 9.6 kbit/s to 12 Mbit/s |
| Bus connections | 2 connections for 2-core PB FC installation cables using insulation-displacement terminals; 1 × 9-pin Sub-D station connector. |
| Identified model | 6ES7972-0BA52-0XA0 |
| Connection method | FastConnect insulation-displacement terminals |
| Degree of protection | IP20 |
| Operating temperature | -25 to +60 °C operating ambient. |
| Storage and transportation temperature | -40 to +70 °C during storage and transportation. |
