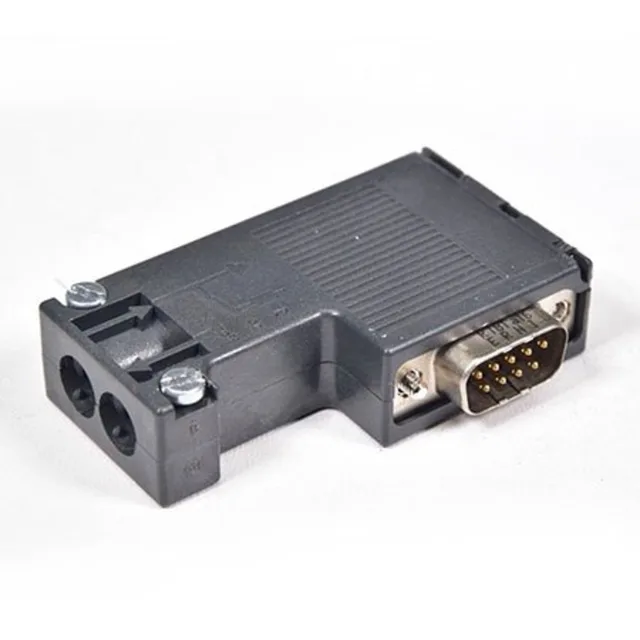

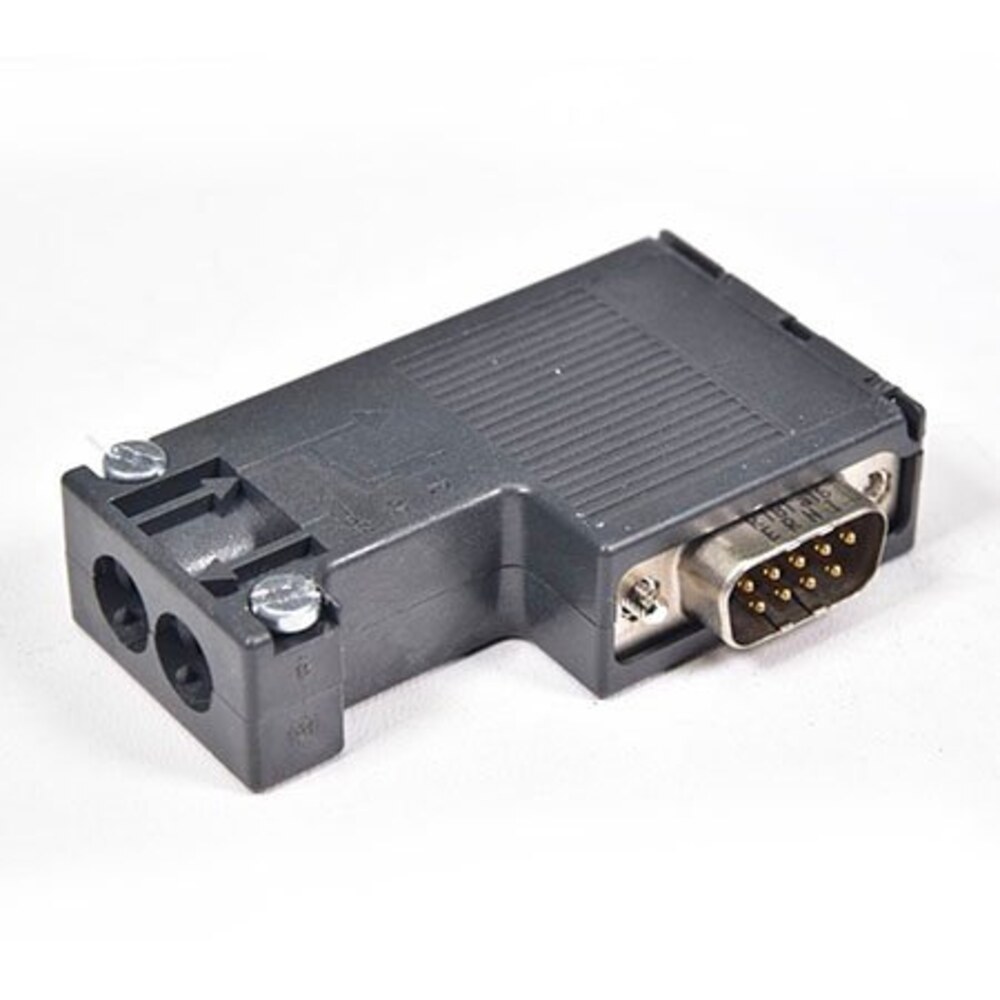

Siemens 6ES7972-0BA12-0XA0 PROFIBUS RS485 90° Screw Bus Connector
- Brand
- Siemens
- Model
- 6ES7972-0BA12-0XA0
- GEARWELL SKU
- GWP-000002855
- Category
- Industrial Automation Parts
Key specifications
- Programming socket
- No PG programming socket.
- Bus termination
- Integrated resistor combination selected by slide switch, with isolating function.
- Cable outlet
- 90° cable outlet.
- Bus connections
- 2 PROFIBUS cable connections with screw terminals; 1 × 9-pin Sub-D station connector; not FastConnect.
- Product description
- PROFIBUS RS485 screw-terminal bus connector with 90° cable outlet, switchable termination and no PG programming socket.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7972-0BA12-0XA0 PROFIBUS RS485 90° Screw Bus Connector |
|---|---|
| Brand | Siemens |
| Model | 6ES7972-0BA12-0XA0 |
| Category | Industrial Automation Parts |
| Programming socket | No PG programming socket. |
| Bus termination | Integrated resistor combination selected by slide switch, with isolating function. |
| Cable outlet | 90° cable outlet. |
| Bus connections | 2 PROFIBUS cable connections with screw terminals; 1 × 9-pin Sub-D station connector; not FastConnect. |
| Product description | PROFIBUS RS485 screw-terminal bus connector with 90° cable outlet, switchable termination and no PG programming socket. |
| Operating temperature | -25 to +60 °C operating ambient. |
| product type designation | PROFIBUS connector |
| transfer rate / with PROFIBUS DP | 9.6 kbit/s ... 12 Mbit/s |
| design, dimensions and weights — depth | 35.6 mm |
