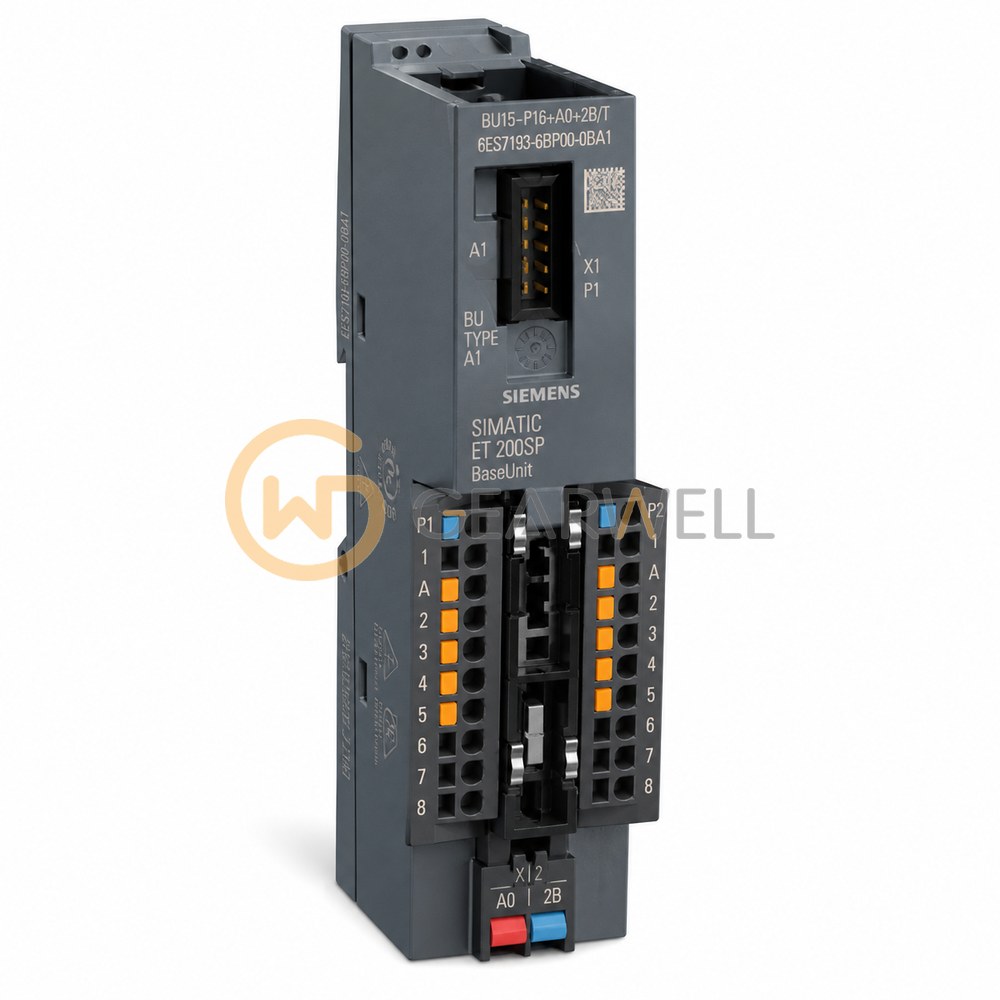

Siemens 6ES7193-6BP00-0BA1 ET 200SP A1 BaseUnit with Temperature Acquisition

Key specifications

Dimensions (W × H × D): 15 × 117 × 35 mm (W × H × D).
Potential group: Potential group continued from the left; does not form a new potential group.
Dimensions — Depth: 35 mm
Supply and current limits: 24 V DC rated supply; 10 A maximum for P1/P2 and 2 A maximum per process terminal. Supply lines require external 24 V DC / 10 A miniature circuit breaker protection with B or C tripping characteristic.
Temperature acquisition: Integrated sensor for temperature acquisition.

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	Siemens 6ES7193-6BP00-0BA1 ET 200SP A1 BaseUnit with Temperature Acquisition
Brand	Siemens
Model	6ES7193-6BP00-0BA1
Category	PLCs & I/O
Dimensions (W × H × D)	15 × 117 × 35 mm (W × H × D).
Potential group	Potential group continued from the left; does not form a new potential group.
Dimensions — Depth	35 mm
Supply and current limits	24 V DC rated supply; 10 A maximum for P1/P2 and 2 A maximum per process terminal. Supply lines require external 24 V DC / 10 A miniature circuit breaker protection with B or C tripping characteristic.
Temperature acquisition	Integrated sensor for temperature acquisition.
Product description	ET 200SP BU15-P16+A0+2B/T type A1 BaseUnit with temperature acquisition and no AUX terminals, bridged to the left.
Weights — Weight, approx.	40 g
Terminal configuration	Push-in wiring: 16 process terminals, 0 AUX terminals and 2 connections to the P1/P2 bus.
Product type designation	BU type A1
Maximum operating temperature by orientation	60 °C horizontal; 50 °C vertical.
