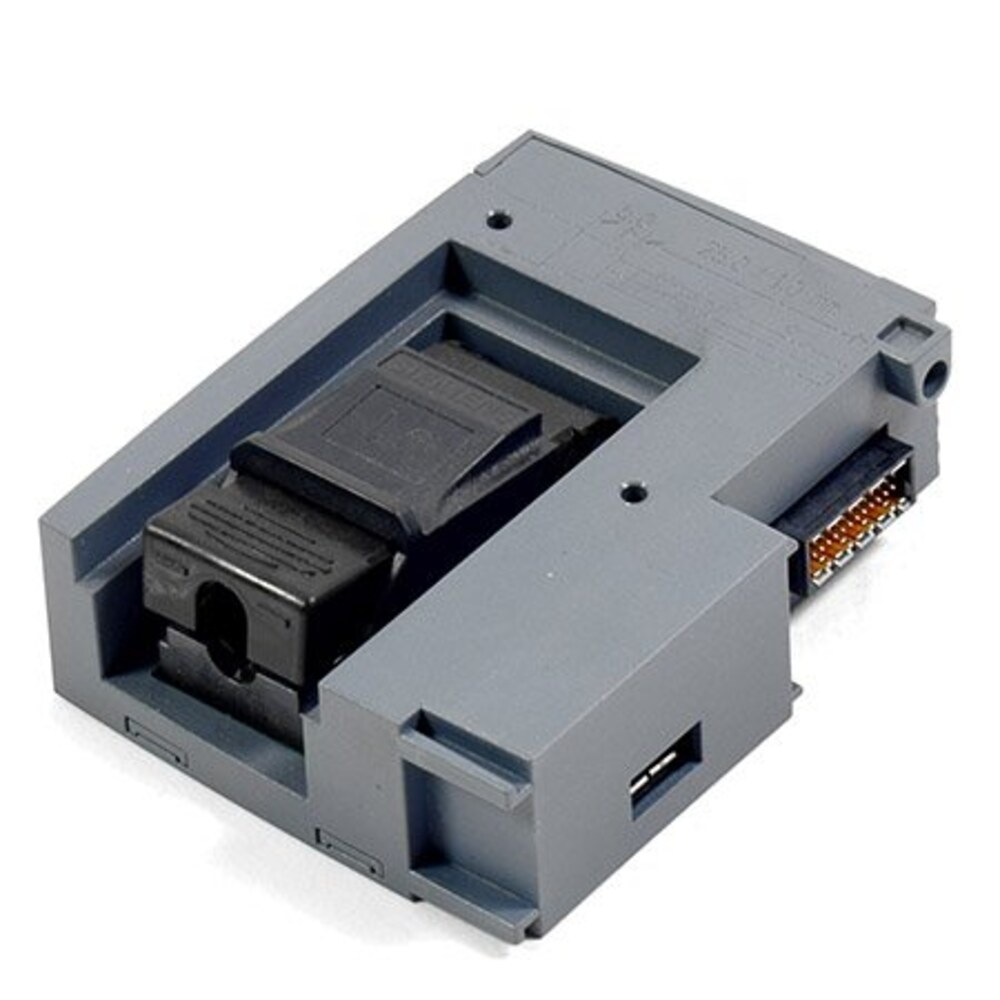

Siemens 6ES7193-6AS00-0AA0 ET 200SP BA-Send 1xFC ET-Connection Adapter
- Brand
- Siemens
- Model
- 6ES7193-6AS00-0AA0
- GEARWELL SKU
- GWP-000001563
- Category
- Industrial Automation Parts
Key specifications
- Dimensions (W × H × D)
- 20 × 69.5 × 59 mm (W × H × D).
- Connection type
- BA-Send with 1 FastConnect interface for ET-Connection.
- Dimensions — Depth
- 59 mm
- Conditional copper link length
- 15 m per link with IM firmware V3.3 or later: from BA-Send to the first ET-Connection bus node and between subsequent bus nodes.
- Product description
- ET 200SP BA-Send 1xFC adapter with one FastConnect interface for ET-Connection.
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Siemens 6ES7193-6AS00-0AA0 ET 200SP BA-Send 1xFC ET-Connection Adapter |
|---|---|
| Brand | Siemens |
| Model | 6ES7193-6AS00-0AA0 |
| Category | Industrial Automation Parts |
| Dimensions (W × H × D) | 20 × 69.5 × 59 mm (W × H × D). |
| Connection type | BA-Send with 1 FastConnect interface for ET-Connection. |
| Dimensions — Depth | 59 mm |
| Conditional copper link length | 15 m per link with IM firmware V3.3 or later: from BA-Send to the first ET-Connection bus node and between subsequent bus nodes. |
| Product description | ET 200SP BA-Send 1xFC adapter with one FastConnect interface for ET-Connection. |
| Weights — Weight, approx. | 44 g |
| Product type designation | BA-Send 1x FC |
| Number of interfaces ET connection | 1 |
| Maximum operating temperature by orientation | 60 °C horizontal; 50 °C vertical. |
