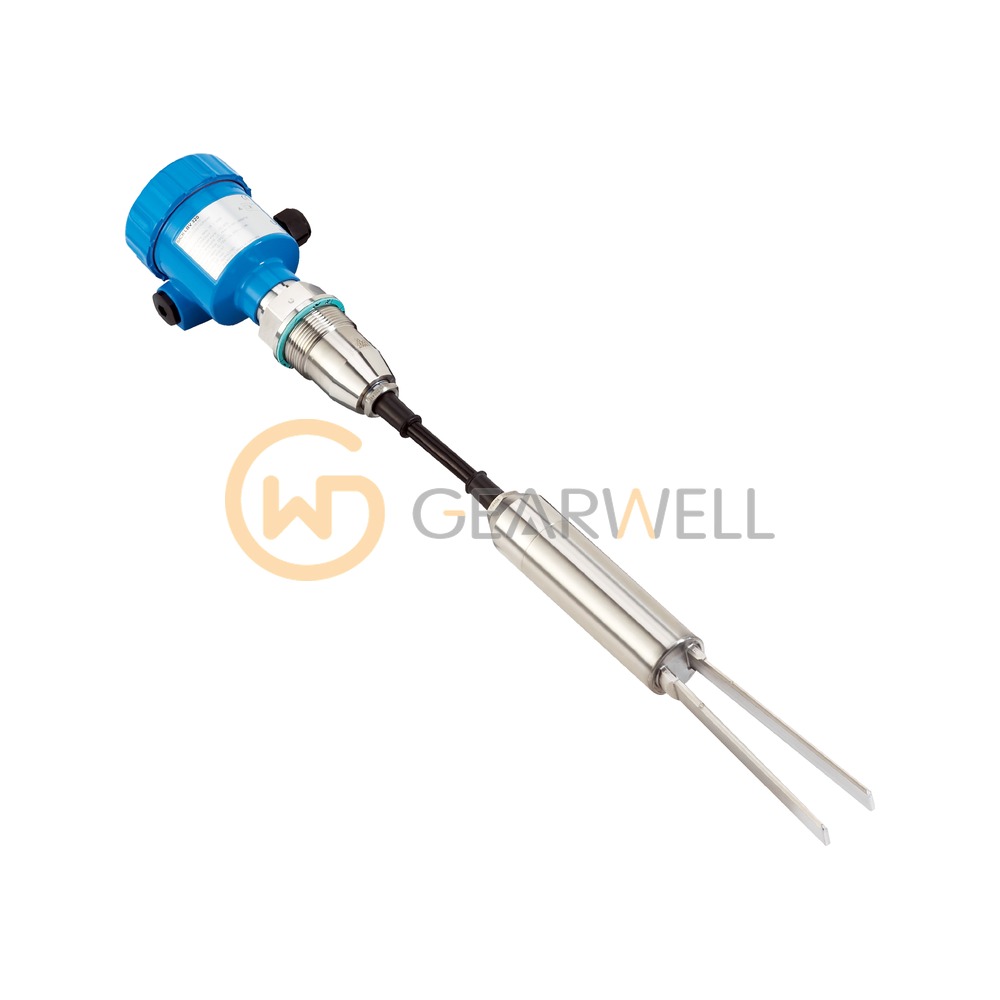

SICK 6060560 LBV320-XXTZFRKMX01825 Vibrating Level Switch
- Brand
- SICK
- Model
- 6060560
- GEARWELL SKU
- GWP-000013873
- Category
- Pressure, Flow & Temperature
Key specifications
- Length
- 1825 mm
- Output
- Relay (DPDT)
- Version
- Cable PUR, suspension cable (PUR)
- Article number
- 6060560
- Supply voltage
- 20 ... 72 V DC / 20 ... 253 V AC (3 A)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 6060560 LBV320-XXTZFRKMX01825 Vibrating Level Switch |
|---|---|
| Brand | SICK |
| Model | 6060560 |
| Category | Pressure, Flow & Temperature |
| Length | 1825 mm |
| Output | Relay (DPDT) |
| Version | Cable PUR, suspension cable (PUR) |
| Article number | 6060560 |
| Supply voltage | 20 ... 72 V DC / 20 ... 253 V AC (3 A) |
| Wetted material | 316L |
| Type designation | LBV320-XXTZFRKMX01825 |
| Process connection | Flange DN100 PN6 Form C, DIN 2501 |
| Process temperature | -20 ... +80 °C |
| Housing material / enclosure | Plastic; IP66, IP67; cable entry M20x1.5 |
