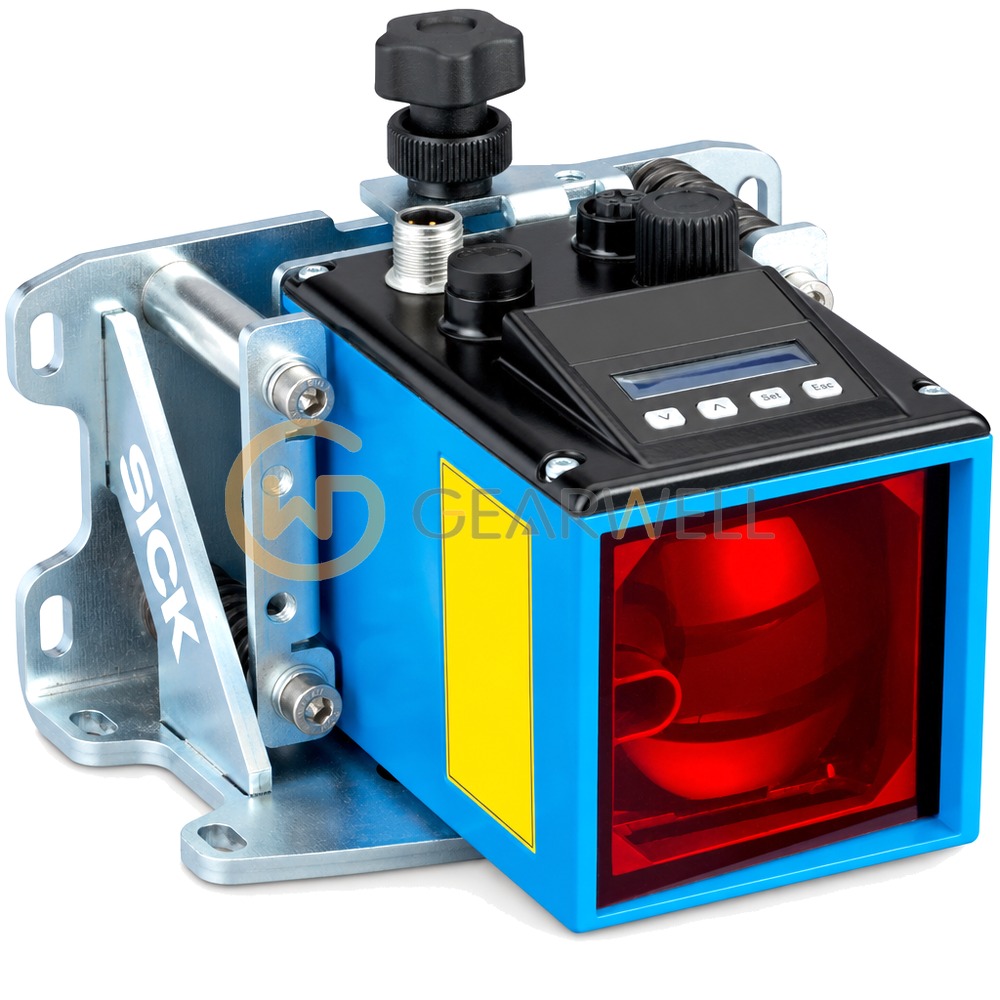

SICK 1052684 Dx100 Laser Distance Sensor

Key specifications

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	SICK 1052684 Dx100 Laser Distance Sensor
Brand	SICK
Model	1052684
Category	Proximity & Photoelectric Sensors
MTTFd	101 years
Target	Reflector
Weight	Approx. 800 g (approx. 1,600 g with bracket)
Display	6-digit 5 x 7 dot matrix display, LEDs
Accuracy	± 2 mm
Connection	Male connector M12, SPEEDCON
Laser class	2 (IEC 60825-1:2014, EN 60825-1:2014; 21 CFR 1040.10 and 1040.11)
Output time	Measurement cycle synchronized with PLC request
Light source	Laser, visible red light
Repeatability	0.5 mm
Response time	2 ms
Supply voltage	18 ... 30 V DC
Measuring range	0.15 ... 100 m on Diamond Grade reflective tape
Residual ripple	5 Vpp
Enclosure rating	IP65
Housing material	Metal (aluminum die-cast)
Protection class	III
Temperature drift	Typ. 0.1 mm/K
Max. output current	≤ 100 mA
Max. traverse speed	15 m/s
Specification note	Specifications from supplier data; please verify against the nameplate before ordering.
Current consumption	< 250 mA at 24 V DC
Initialization time	Typ. 1.5 s
Storage temperature	-40 ... +75 °C
Dimensions (W x H x D)	69.4 x 82.5 x 100.2 mm
Front screen material	Plastic (PMMA)
Resolution (selectable)	0.1 / 0.125 / 1 / 10 / 100 mm
Switching output type	Push-pull PNP/NPN
Ambient light immunity	≤ 100,000 lx
Typical light spot size	5 mm + (2 mm x distance in m)
Multifunctional input (MF)	1 x MF1
Ambient operating temperature	-20 ... +55 °C
