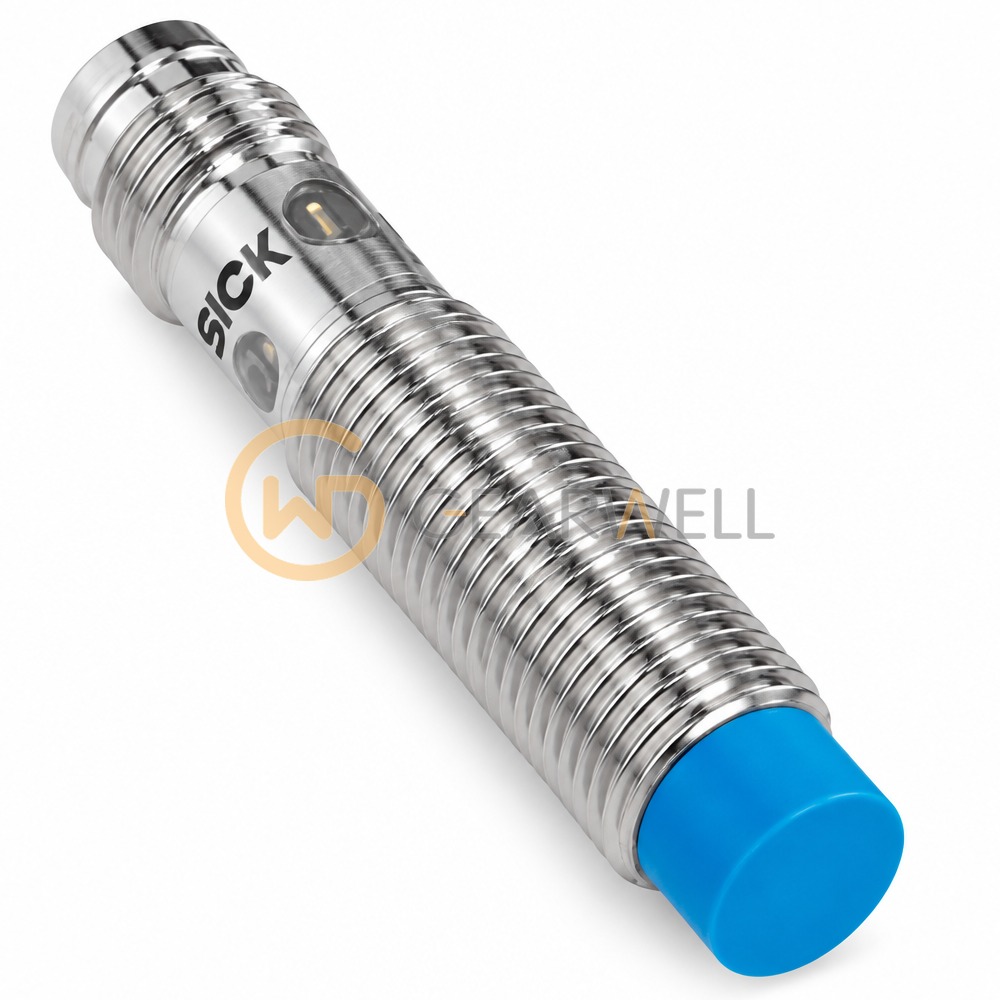

SICK 1040885 IME Inductive Proximity Sensor
- Brand
- SICK
- Model
- 1040885
- GEARWELL SKU
- GWP-000027587
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Output
- PNP
- Connection
- Male connector M8, 3-pin
- Thread size
- M8x1
- Installation
- Non-flush
- Sensing range
- 4 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | SICK 1040885 IME Inductive Proximity Sensor |
|---|---|
| Brand | SICK |
| Model | 1040885 |
| Category | Proximity & Photoelectric Sensors |
| Output | PNP |
| Connection | Male connector M8, 3-pin |
| Thread size | M8x1 |
| Installation | Non-flush |
| Sensing range | 4 mm |
| Housing length | 41 mm |
| Supply voltage | 10 ... 30 V DC |
| Enclosure rating | IP67 |
| Housing material | Brass, nickel-plated |
| Scope of delivery | 2 x fastening nut, steel, nickel-plated |
| Specification note | Specifications from supplier data; please verify against the nameplate before ordering. |
| Switching function | NO (normally open) |
| Switching frequency | 4000 Hz |
| Usable thread length | 21 mm |
| Sensing face material | Plastic, PA 66 |
| Ambient operating temperature | -25 ... +75 °C |
